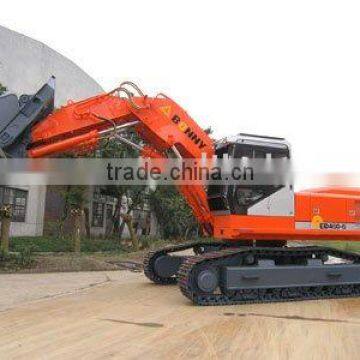

Face-shovel CED460-6

Face-shovel CED460-6 thumbnail-1
Face-shovel CED460-6 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
Honorsun
Model Number:
CED460-6
Contact Supplier Request Quote Chat Now
Qingzhou Honorsun Heavy Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name Honorsun
Model Number CED460-6
Place of Origin Shandong, China
Moving Type Crawler Loader

Main Technology Data of Hydraulic Excavator CED460-6

No.        Item       Unit        Date

                     Face shovel    Backhoe

1     Machine weight     t     46   45

2     Bucket capacity     Standard        m 3        2.5 2.0

              Range     m 3        2.0 ~2.5        1.0~2.5

3     Electromotor Model       Y315L2-4

              Power /Speed        kW/rpm 200/1480

              Voltage   V    380

4     Hydraulic system   Type        variable system controlled by Crossing power  with two pumps and two circuits

              Max. pressure of main oil circuit MPa       29.4

              Max. flow of main oil circuit        L/min     2×320

              Operating style        Pilot control

              Hydraulic oil tank capacity    L     420

5     Performance Swing speed r/min      9.0

              Travel speed km/h      3.0/5.0

              Max. pulling force        kN 321

              Gradeability    %   70

              Ground pressure    MPa       0.077

              Circulating time of operation        s     16~19

6     Working date Boom length   mm        3950      6400

              Stick length    mm        2600      2800

              Max. digging radius      mm         8260     11315

              Max. digging depth       mm        2440       7098

              Max. digging height      mm         9240     9204

              Max. unloading height   mm        6630       5944

              Max. digging force of stick   kN 243  175

              Max. breakout force of bucket     kN 230        186















Main Components of Hydraulic Excavator CED460-6

No.        Component    Type      Manufacturer

1     Electromotor Y315L2—4    Chongqing Electromotor Works/ China

2     Main pump    A11VLO190   Rexroth /Germany

3     Main Valve     M8 Rexroth /Germany

4     Double join valves 2MO      Rexroth /Germany

5     Swing motor A2FE125       Rexroth /Germany

6     Swing reduction gear    GFB60T2      Rexroth /Germany

7     Travel motor A6VE107       Rexroth /Germany

8     Travel reduction gear    GFT80T3      Rexroth /Germany

9     Logical Valve 026710   Rexroth /Germany

10   Isolating Valve       MH3WA Rexroth /Germany

11   Foot pedal pilot valve    4TH6N   Rexroth /Germany

12   Armrest pilot valve        4TH6E   Rexroth /Germany

13   Electromagnetism Valve        4WE6C Rexroth /Germany

14   Hydraulic hose + System seal         Manuli/Italy

15   Cylinder seal   Trelleborg

16   Driver’s seat         Grammer

17   Air-condition system       Wuhan Jindong /China
