Specifications
KDSX China Sand Transfer Pump Dredger For Sale1.ISO 9001:2008
2.We are factory
3.Famous brand spare part
4.Low energy cost
River Submersible Pump Dredge From China Manufacturer
1.Submersible Pump Dredge Specification is as follows:
1)Low cost in maintance and repairment
2)Used for loose sand with high capacity
3)Easy to operate and control
4)Simple structure,easy dismantle and assemble
2.Submersible Pump Dredge Parameter:
Just for your reference,can be designed as your requirement
| Model | KDQSB200-5 |
| Dredger Body | |
| Dimension (m) L*W*H | 12*4.7*1.2m |
| Pontoon | |
| Side pontoons 2sets | 11*1.25*1.2m |
| Main pontoon 1set | 8*2.25*1.2m |
| Material | CCSA |
| Total weight T | 20T |
| Pump model | ZJQ300-20-37 |
| Rotation speed(r/m) | 980rpm |
| Dredging data | |
| Standard dredging depth | 5m |
| Standard discharge distance | 50m |
| Max.dredging depth(m) (optional) | 8m |
| Max.discharge distance (m) ( medium and fine sand<0.235mm when min.flows) | 70m |
| Max.standard dredging capacity m3/h | 50-70m3/h |
| Min.clean water flows(standard dredging depth and Max.discharge distance) | 300m3/h |
| Discharge pipe diameter(mm/inch) | 200mm |
| Devices KW | Generator |
| Total power KW | 65kw |
| Pump power(kw/hp) | 1500 |
| Winch(electric) | |
| Ladder winch | 4kw 1set |
| Anchor winch | 4kw 3set |
3.Clients come to visit our factory
Welcome all of you to our factory and check the products first.
4.Begin to produce the Submersible Pump Dredge according to the clients' request
After signed contract and received the first payment, we will begin to produce equipments according to the clients' order.
5.Submersible Pump Dredge testing before shipping:
After finished the dredger, we will do water test and check the operation and working capacity of the dredger.

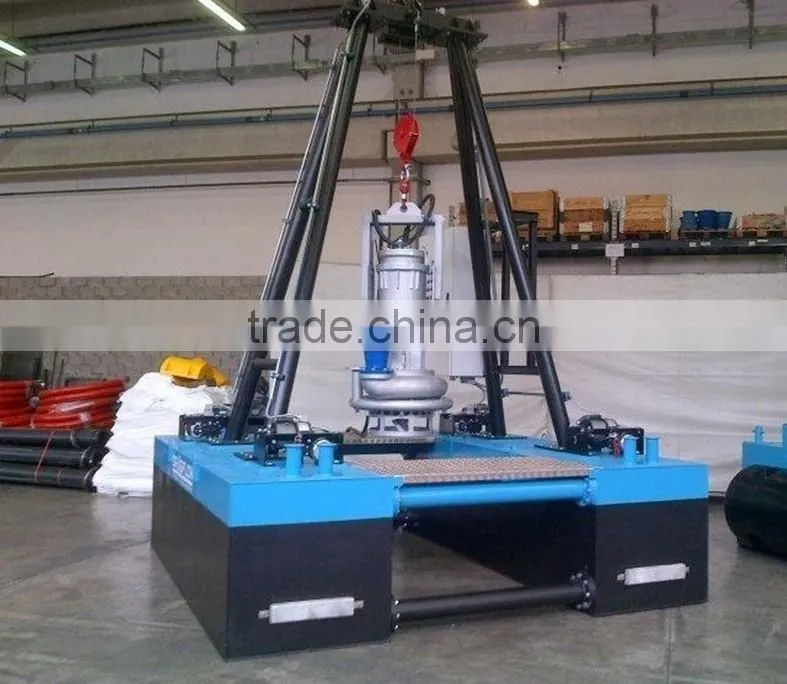

6.Submersible Pump Dredge Pump
5.Best afterservice
1)24 Hours telephone and email support
2)Fast delivery time
3)Engineers with rich experience overseas
6.Could you kindly tell us more information as below
1.Working capacity(t/h)
2.Discharge distance(m)
3.Dredging depth(m)
7.Contact
More information,please don't hesitate to contact me
