Specifications
river sand pump dredger1.Good after -service
2.Low cost
3.ISO9001
4.Delivery in time

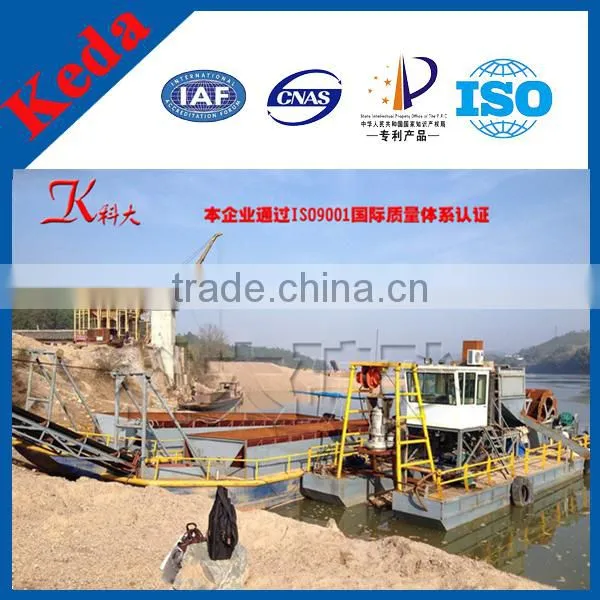

submerged river sand pump dredger in Africa
1. River Sand Pump Dredger Feature
The dredger can be used to excavate and transport cohesive sediment. In the
course of technical designing, we have considered special requirements for tropical
climate conditions of Senegal such as meteorological and waters distributing state etc.
It is to be easy to dismantle or mount for transportation by road, rail or water,and is to
be easy to reassemble at project site
2. River Sand Pump Dredger Advantage
1)Economic and high sand dredging efficiency with can be with 30-50% denisty for
fine sand
2)Portable to move and can be transported by truck.
3)Easy to operate with reliable quality.5mm Steel plate thickness or followed to
your request.
4)Standard world-wide available gearboxes and famous electric components.
5)Operation by one man from spacious and low noise operating cabin
6)Controls and instruments mounted in ergonomic dash board
7)Dredging depth can be 30m from the water surface.
3. River Sand Pump Dredger Parameter
Model | KDQSB50 | KDQSB75 | KDQSB75 | KDQSB100 | ||
Dimension (m) L*W*H | 5.0*4*1 | 5.0*4*1 | 5.5*4*1 | |||
Pontoons(m) 2sets | 5.0*1.0*1.0 | 5.0*1.25*1.0 | 5.5*1.25*1 | |||
Pump model | ZJQ60-30-15 | ZJQ75-25-15 | ZJQ75-35-22 | ZJQ100-18-11 | ZJQ100-35-30 | ZJQ100-45-37 |
Head(m) | 30 | 25 | 35 | 18 | 35 | 50 |
Discharge pipe diameter | 100mm | 100mm | 100mm | |||
Max.discharge distance | 400 | 180 | 300 | 110 | 300 | 450 |
Max. approved particles | 13 | 13 | 13 | 21 | ||
Cutter model | JD-1.5 | JD-1.5 | JD-1.5 | |||
Cutter quality | 2 | 2 | 2 | |||
Standard dredging depth(m) | 25 | 25 | 25 | |||
| 5 | 5 | 5 | |||
Winch(electric) | 1.5kw 3sets | 1.5kw 3sets | 1.5kw 3sets | |||
steel wire diameter | 10mm | 10mm | 10mm | |||
Ladder winch | 2.2kw,1set | 3kw,1set | 3kw,1set | |||
steel wire diameter | 10mm | 12mm | 10mm | |||
Generator model | HF-24GF | HF-24GF | HF-30GF | HF-24GF |
|
|
Main diesel engine model | K4100D5-1 | K4100D5-1 | K4102D3-1 |
|
|
|
Total power KW | 30KW | 30KW | 37.5KW |
|
| |
The parameter is just for your reference,we can design as your requirement.

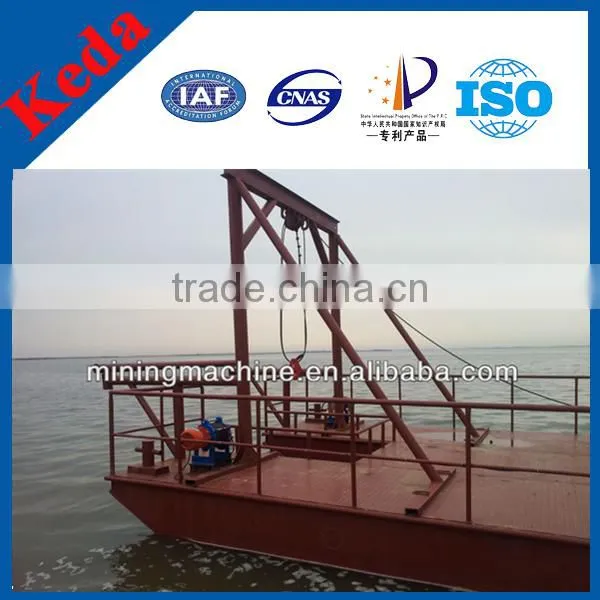

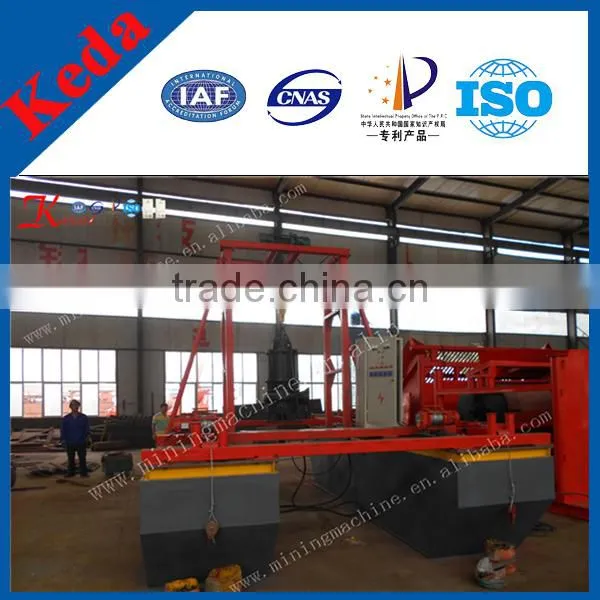

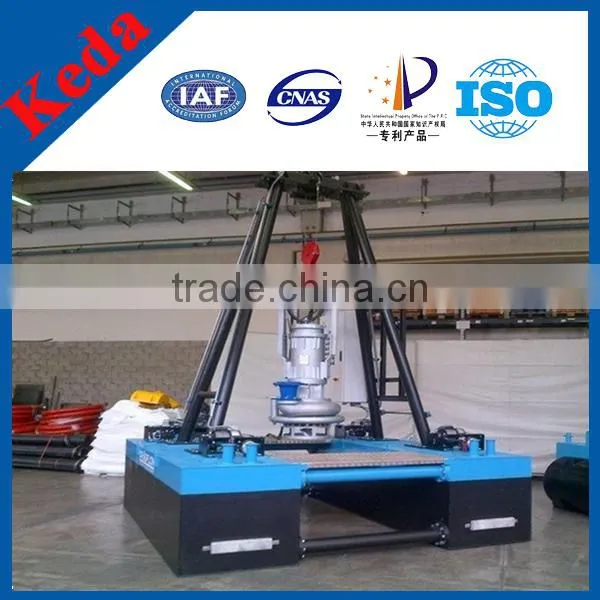

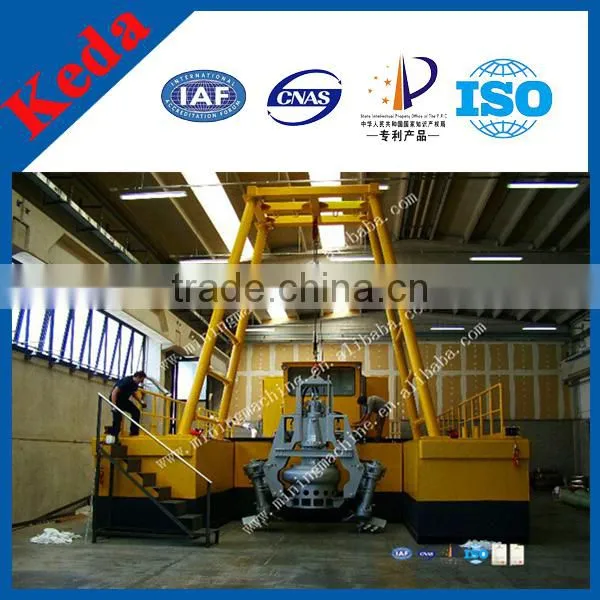

4. River Sand Pump Dredger Products Showing
Our dredgers working in the work site in different places of the world ,such as Bangladesh,
Southeast Asia,Africa, and so on.
5. River Sand Pump Dredger Simple Sketch
6. River Sand Pump Dredger spare parts
We also supply the whole set of spare parts for dredgers.

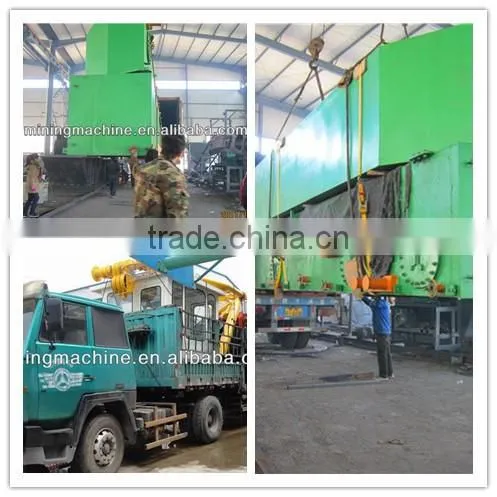

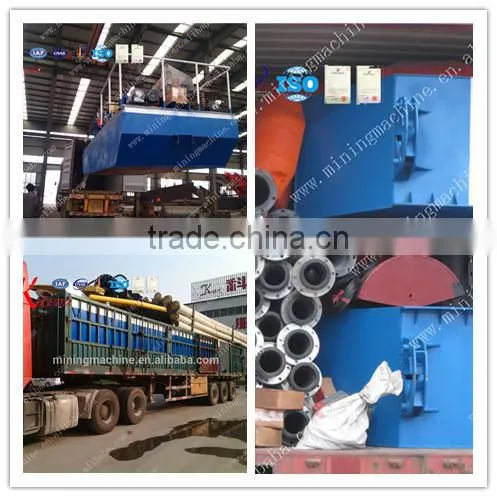

7. River Sand Pump Dredger Shiping Pictures

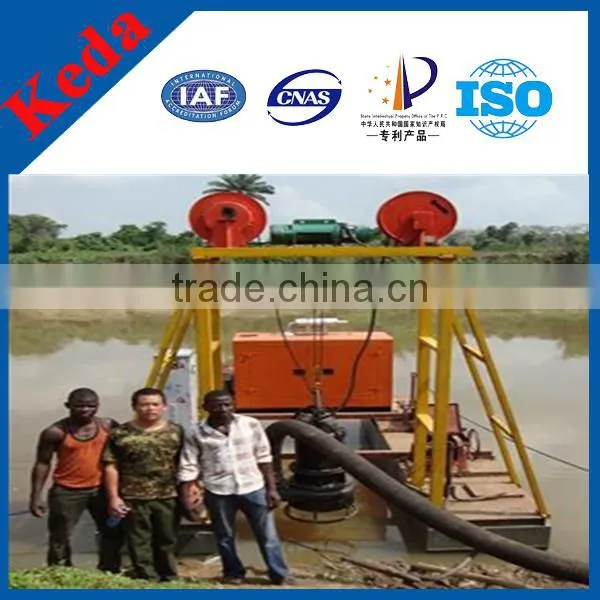

8. River Sand Pump Dredger Working Site
we will send our engineers to the mining area to assemble the dredger and
adjust it until it could work normally. Training for the local workers will be inducted meanwhile.
9.Customers Visiting
Based on honest, mutual benefit and development we welcome customers warmly both
from home and abroad to visit our company and talk over with us.
10.Our Service
1)The seller must deliver the goods and spare parts with manuals written in English.
2.The seller will provide 12-months warranty for the quality of the diesel engine/generator,
motor water pump (impeller is 6months), storage battery, but not responsible for rust.
3) If need seller’s installation help, the seller will send one (1) qualified experienced
engineer and one translator to Africa to conduct installation and train 3 workers to
operate the machine, the buyer shall arrange at least 5-6 workers to help the engineer.
11.Company Information
1)Qingzhou Keda Mining Machine Co., Ltd.mainly produces iron selecting equipment,
kinds of drederes, dredging equipment, sand washing and sand making equipment,
gold panning equipment, magnetic separating, crusher and so on,
2)All the products in our company has passed ISO9001:2008,and the gold wash plant has obtained patent both in utility and design. We are the only manufacturer has this patent in China.
12.FAQ
In order to supply the best machine for you, could you tell me below information
ing capacity(t/h)?
2.Dredger dredging depth?
3.Any big stone in there?
13.Contact Person
Alice Li
Qingzhou Kede Mining Machinery Co.,ltd
Tel:0086-0536-2105419
Mobile:0086-13793603966
Email:sales06 @miningmachine.net
Skype:kedamachinery06
Add:Qingzhou City,Shandong Province,China.
