Specifications
China Manufacturer Designed River Pumping Dredge1.Cummins engine
2.With patent
3.Good after-sale service

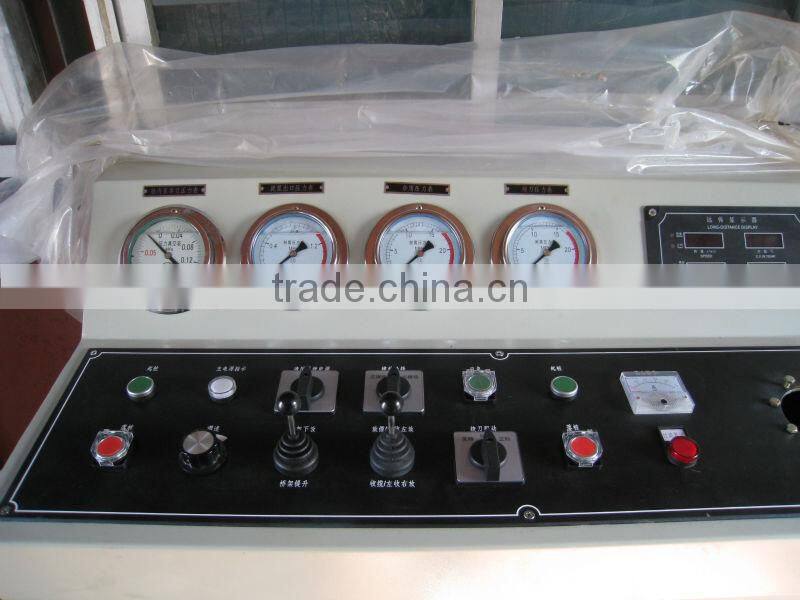

4.PLC control
China Manufacturer Designed River Pumping
1. Pumping Dredge Specification is as follows:
==========================================
- The pump sand dredger is eqipped with a quick connection and dismantle system by road rail or water,achieved using bolts at deck level,and hook at the bottom.
- The dreger can be used to excavate and transport cohesive sediemnt.We have considerad special requirement for tropical climate conditions
- Further salient features of the vessel are the compact dredge pump drive incorporating a reduction gear with integrated pump bearing and a fresh water engine cooling system, based on the well cooling principle.
2.Pumping Dredge Parameter:
==============================
| Model | KDSX200-10 | KDQSB200-5 |
| Dredger Body | ||
| Dimention (m) L*W*H | 14*4.2*1.4m | 12*4.7*1.2 |
| Float | ||
| Pontoon | ||
| Side pontoons 2sets | 11.5*1.0*1.4m | 11*1.25*1.2 |
| Main pontoon 1set | 8.5*2.25*1.4m | 8*2.25*1.2 |
| Material | CCSA | CCSA |
| Total weight T | 30 | 20 |
| Pump model | 6/4”D-G | ZJQ300-20-37 |
| Rotation speed(r/m) | 1150 | 980 |
| Dredging data | ||
| Standard dredging depth | 8-10m | 5m |
| Standard discharge distance | 500m | 50m |
| Max.dredging depth(m) (optional) | 10m | 8m |
| Max.discharge distance (m) ( medium and fine sand<0.235mm when min.flows) | 600m | 70m |
| Max.standard dredging capacity m3/h | 50m3/h | 50-70m3/h |
| Min.clean water flows(standard dredging depth and Max.discharge distance) | 250m3/h | 300m3/h |
| Suction pipe diameter(mm) | 200 | |
| Discharge pipe diameter(mm/inch) | 200 | 200mm |
Our company- Pumping Dredge manufacturer:
======================================
1)We are one professional manufacturer and exporter of hydraulic cutter suction dredger and some related products.
2)we had established good cooperation with Import and export trading company, established Shandong magnetic equipment Research Instituting. We have CAD Aided Design R & D center and physical mineral processing laboratory,can work out reasonable and practical solution according to customer's technical requirements and work site,also had established and improve the equipment file and service system, concentrating on customer feedback to make the products constantly improved to meet the customers' different needs.
3)The dredger has passed ISO quality system certification and Chinese Classification Management System Certification with good quality and low price.
Clients come to visit our factory
In order to decrease the deliver time, we will make some ready or semi-product in our workshop.
Welcome all of you to our factory and check the products first.
Begin to produce the Sand Pumping Dredge according to the clients' request
After signed contract and received the first payment, we will begin to produce equipments according
to the clients' order.
Pumping Dredge Testing Before Shipping:
After finished the dredger, we will do water test and check the operation and working capacity of
the dredger.

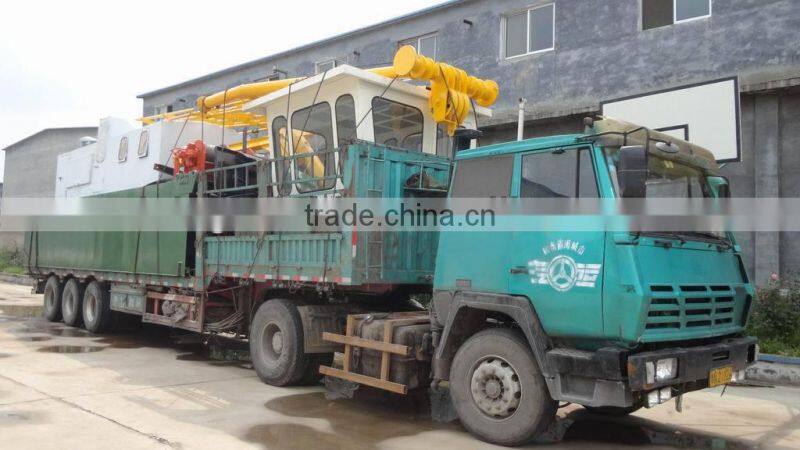

Pumping Dredge Transporting of the spare parts:
Once we confirmed all functions of the dredger are ok, we will disassamble the dredger andtransporting it to the port at the clients' side.
Details of Pumping Dredge

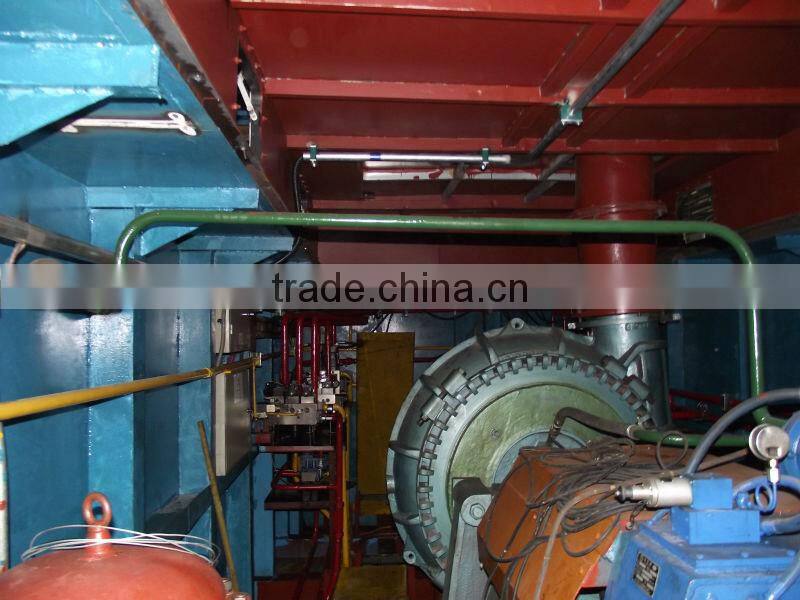

Pumping Dredge Pump
More information,please don't hesitate to contact me
