China Sand Used Vessels for Sale

China Sand Used Vessels for Sale photo-1
US$ 200,000 - 500,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Cutter Suction Dredger
Power Type:
Other, Electric, Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Cutter Suction Dredger
Power Type Other, Electric, Diesel
Dredging Depth 15 m
Draught 200 cm
Place of Origin Shandong, China
Brand Name KD
Model Number kdcsd
Dimension(L*W*H) 26*7*2m
Weight 80t
Certification ISO9001
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

china sand used vessels for sale
1.Cummins engine
2.With patent
3.Good after-sale service
4.PLC control



        china sand used vessels for sale



1.Our company:

1)We are one professional manufacturer and exporter of hydraulic cutter suction dredger and some related products.

2)we had established good cooperation with Import and export trading company, established Shandong magnetic equipment Research Instituting. We have CAD Aided Design R & D center and physical mineral processing laboratory,can work out reasonable and practical solution according to customer's technical requirements and work site,also had established and improve the equipment file and service system, concentrating on customer feedback to make the products constantly improved  to meet the customers' different needs.

3)The dredger has passed ISO quality system certification and Chinese Classification Management System Certification with good quality and low price.



2.sand used vessels for sale Specification is as follows:



The dredger can be used to excavate and transport cohesive sediment.In the course of technical designing, we have considered special requirements for tropical climate conditions of



Senegal such as meteorological and waters distributing state etc.



It is to be easy to dismantle or mount for transportation by road, rail or water,



and is to be easy to reassemble at project site



sand used vessels  Parameter:

ModelKDCSD450
Dredger Body
Dimensions(L*W*H)m26*7*2
Engine room(m)14*3.4*2
Dredging data
Standard dredging depth   12-14m
Pump model14/12”
Water flow2500m3/h
Suction pipeline diameter(mm/inch)450
Discharge pipeline diameter(mm/inch)450
Devices
Total power KW930kw
Generator set(kw)36
Cutter head
Diameter (mm) 1500-120
Winch(hydraulic)
Ladder winchesJC-10000
Swing winchJC-8000
Spuds
Quantity2
Spuds length*diameter(mm)17000*550
Spuds weight/pic4500kg

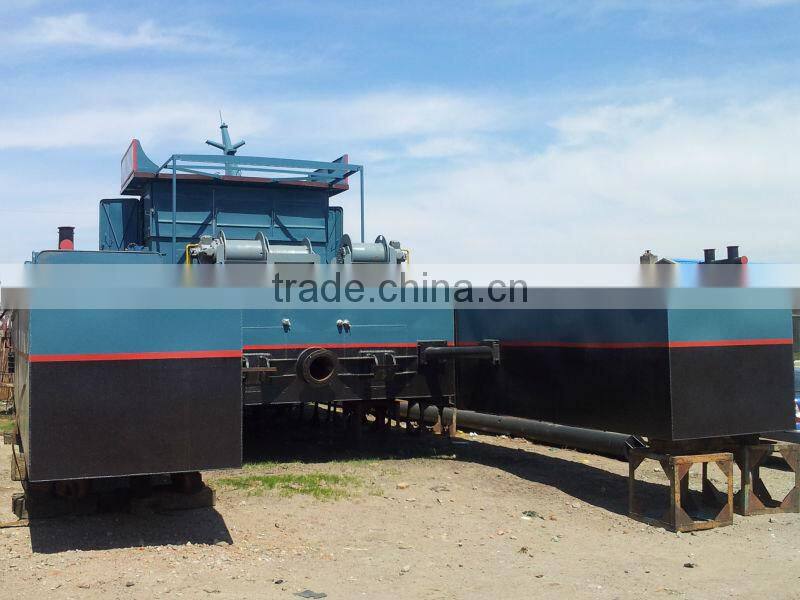

3.sand used vessels products and workshop:



china sand used vessels for salechina sand used vessels for sale

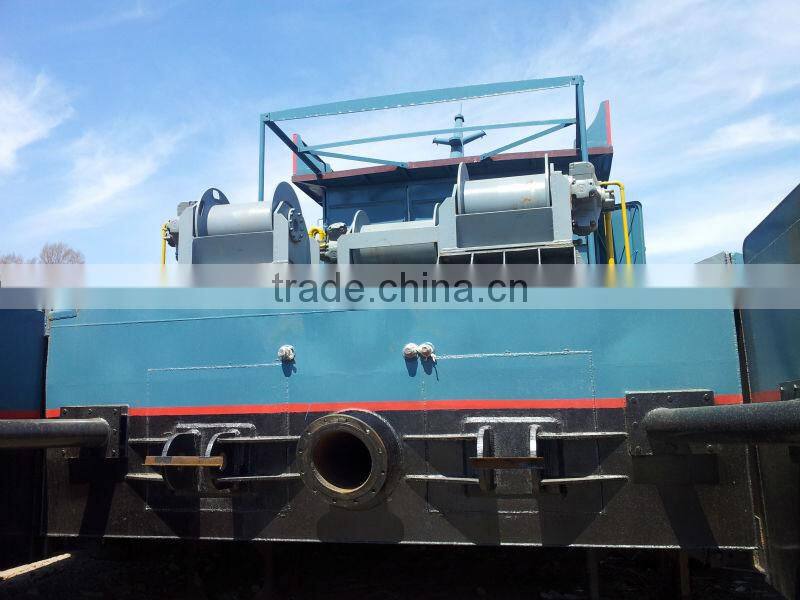

sand used vessels  details



china sand used vessels for sale

china sand used vessels for sale

china sand used vessels for sale

china sand used vessels for sale

sand used vessels testing before shipping:



china sand used vessels for sale

sand used vessels  delivery



china sand used vessels for sale





Cutter head:

china sand used vessels for sale

Cummins power and pump:

china sand used vessels for sale



china sand used vessels for sale

china sand used vessels for sale



Pre-sales service:
Be a good consultant and assistant to customers, to ensure our customer's investment rewarded with great profit.
1. enough details about the ores or slags shall be learned, sometimes a test is needed for some ores.
2. Equipment of right model is selected for customers.
3. Customized products and processing flow sheet can be designed and developed to meet customer's special needs,
4. Engineer could be sent to observe customer's working site to come up with an optimized solution accordingly.

On-sales service:
Every customer is respected and convenience and reliability will be provided. We are devoted to helping you to benefit as much as possible.
1. Inspection is a must before delivering of the goods.
2. Assistance to make a construction plan by supplying all drawings and data needed.
3. most favorable scheme for you with the guaranteed quality.
4. timely communication to make sure improvement of project and your requirement met.

After-sales service:
1. Installation, adjustment, and testing of equipment is available.
2. Train of technicians and workers at site is promised.
3. Service engineers will not leave until ensuring the whole line running well after the installation & adjustment is finished.
4. if any failure or question about the machines or the processing line, contact us and we are available at any time.
