Best Price Lake Dredging Machine for Sale

Best Price Lake Dredging Machine for Sale photo-1
US$ 200,000 - 500,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Cutter Suction Dredger
Power Type:
Other, Electric, Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Cutter Suction Dredger
Power Type Other, Electric, Diesel
Dredging Depth 15 m
Draught 200 cm
Place of Origin Shandong, China
Brand Name KD
Model Number kdcsd
Dimension(L*W*H) 26*7.1*2.2m
Weight 80t
Certification ISO9001
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Best price lake dredging machine for sale
1.Cummins engine
2.With patent
3.Good after-sale service
4.PLC control



      Best price  lake  dredging equipment  for sale



1. lake dredging equipment Specification is as follows:



1)The dredger can be used to excavate and transport cohesive sediment.In the course of technical designing, we have considered special requirements for tropical climate conditions of



Senegal such as meteorological and waters distributing state etc.



2)It is to be easy to dismantle or mount for transportation by road, rail or water,and is to be easy to reassemble at project site



3)small and exquisite, bigger flow, long-distance deliver,simple operation, detachable



2.lake dredging equipment application



1)Pumping tailing slurry for industrial and mining organizations, clearing silt in sedimentation basin, pumping silty sand or fine sand for seashore or port, pumping powdery iron ore for foreign countries, etc.

2)The overflowing parts adopt wear-resistant alloy material and have long service life. In suitable construction environment, the mating is simple and convenient in operation and application.

3)If the sand is large, high pressure gun can be added to increase the medium concentration.





3.lake dredging equipment  Parameter:

ModelKDCSD450KDCSD500
Dredger Body
Dimensions(L*W*H)m26*7*226*7.1*2.2
Engine room(m)14*3.4*214*3.5*2.2
Dredging data
Standard dredging depth   12-14m12-14m
Pump model14/12”450WN
Water flow2500m3/h3200m3/h
Suction pipeline diameter(mm/inch)450500
Discharge pipeline diameter(mm/inch)450500
Devices
Total power KW930kw1200kw
Generator set(kw)3636
Cutter head
Diameter (mm) 1500-1201700-140
Winch(hydraulic)
Ladder winchesJC-10000JC-12000
Swing winchJC-8000JC-10000



3.Our lake dredging equipment :


1. select the location of working site → throw side anchor and back anchor→  connect the
discharging sand pipe→start the Generator set to provide electric →start the electric block to put the submersible slurry pump under the water level→start the submersible slurry pump to pumping out the clean water for 2 minutes→start the electric block to put the submersible slurry pump in the working
site→start the submersible slurry pump to pumping sand

1)Effect of side anchor and back anchor:Throw the anchor to the distant place with hand→ adjust the
steel wire of winch with hands →fixing the dredger and moving dredger left and right.

2)Effect of electric block:steel wire of electric block holds the submersible sand pump up and down.

3)Effect of JT series cable drum:holds the cable of submersible sand pump up and down.

4)Effect of control panel:control the all the electric of dredger



Best price lake dredging machine for saleBest price lake dredging machine for sale

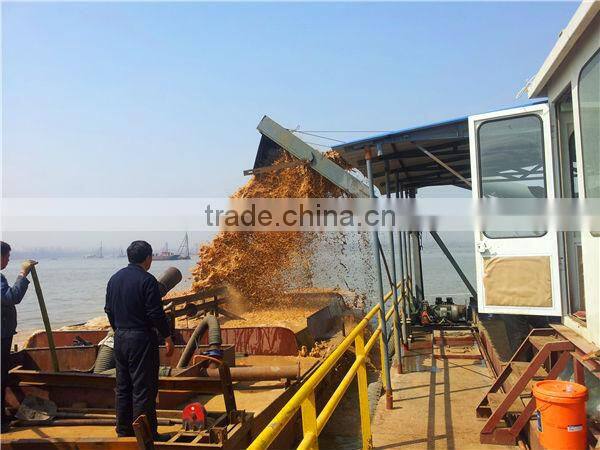

lake dredging equipment  testing before shipping:



Best price lake dredging machine for sale

Best price lake dredging machine for sale

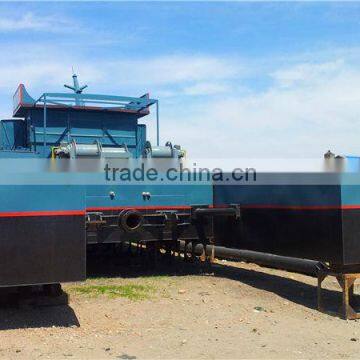

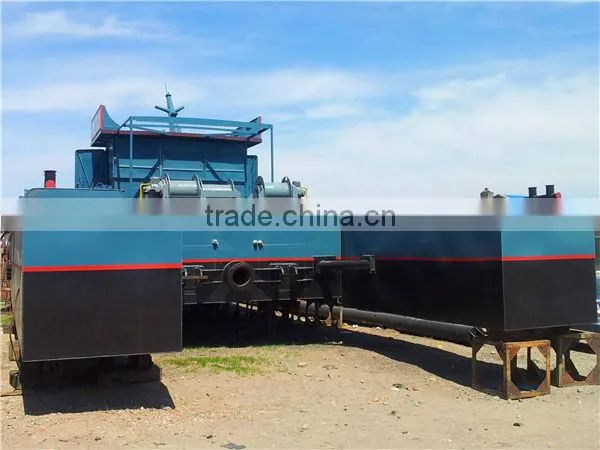

details of  lake dredging equipment

Best price lake dredging machine for saleBest price lake dredging machine for saleBest price lake dredging machine for sale Best price lake dredging machine for saleBest price lake dredging machine for saleBest price lake dredging machine for saleBest price lake dredging machine for sale

4.Our company:

1)We are one professional manufacturer and exporter of hydraulic cutter suction dredger and some related products.



2)we had established good cooperation with Import and export trading company, established Shandong magnetic equipment Research Instituting. We have CAD Aided Design R & D center and physical mineral processing laboratory,can work out reasonable and practical solution according to customer's technical requirements and work site,also had established and improve the equipment file and service system, concentrating on customer feedback to make the products constantly improved  to meet the customers' different needs.



3)The dredger has passed ISO quality system certification and Chinese Classification Management System Certification with good quality and low price.

Good After-sale Service:



1.KD Company signs a long-time after-sale service agreement with customers.

2.We provide rational and practical design according to customers' request.

3.We send engineers to assemble and test the machine within the time in the contract.

4.Within warranty period,we provide free repair if quality problems emerge.

5.We provide free training of operation and maintainance for customers.

6.We supply high quality accessories in low price.

7.We make an excellent filing of customers for long-term following-up service.
