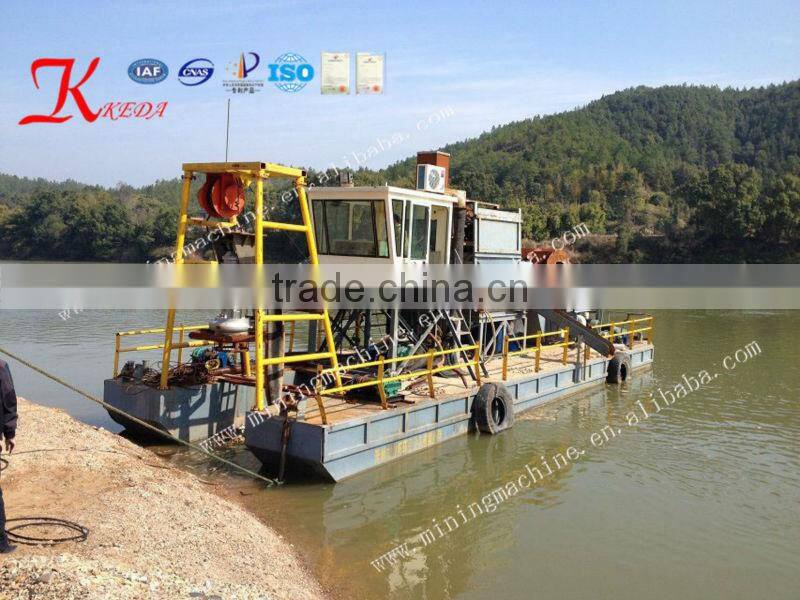

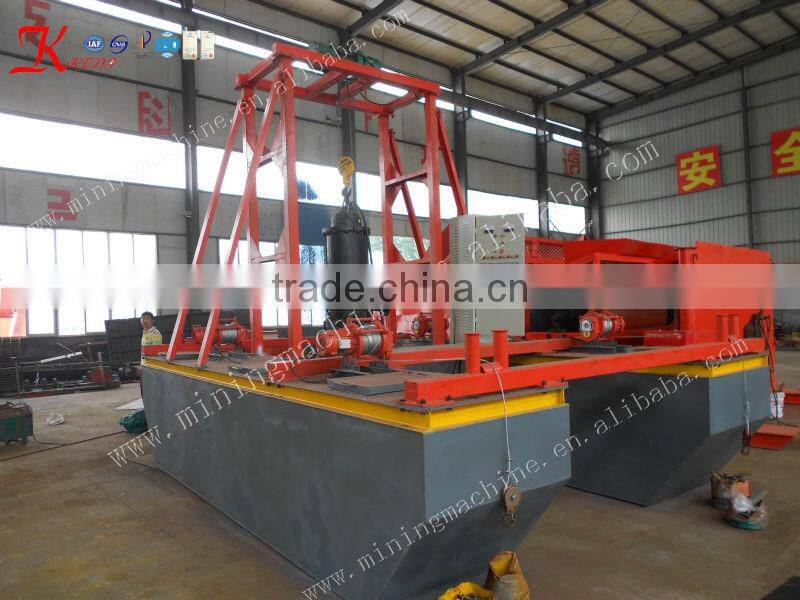

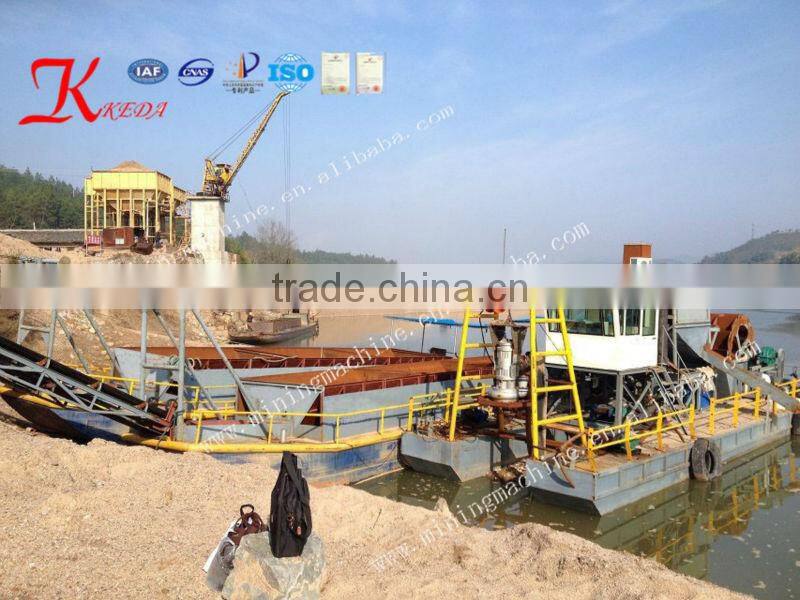

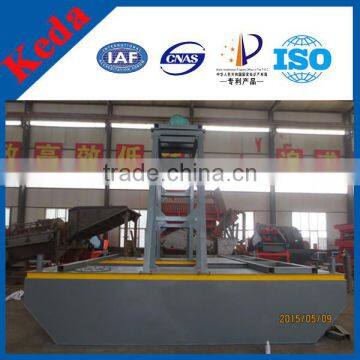

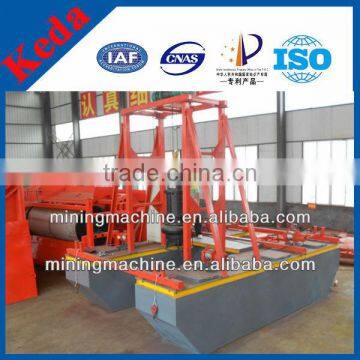

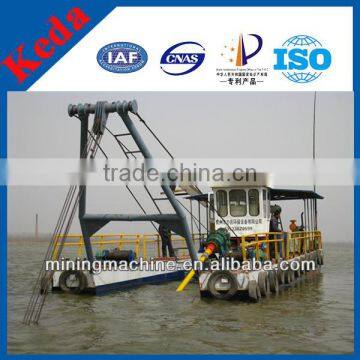

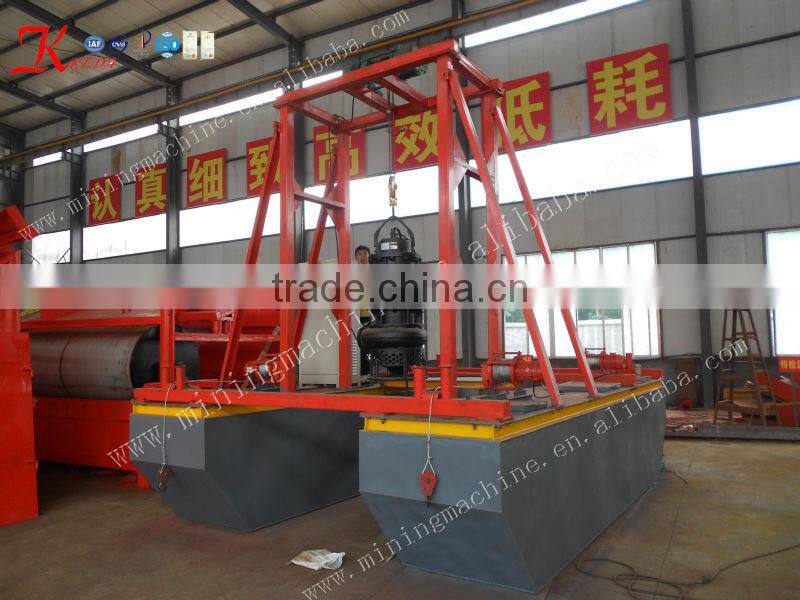

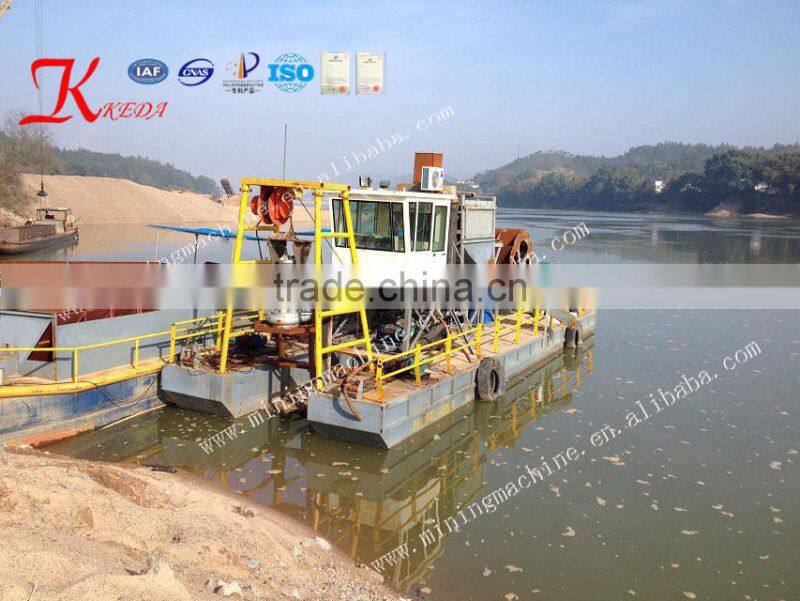

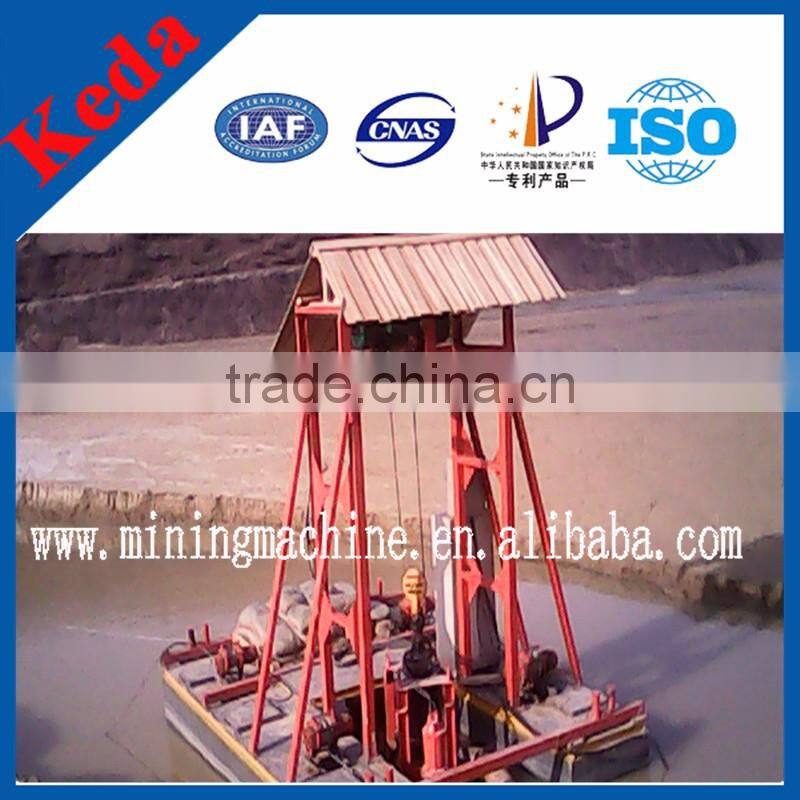

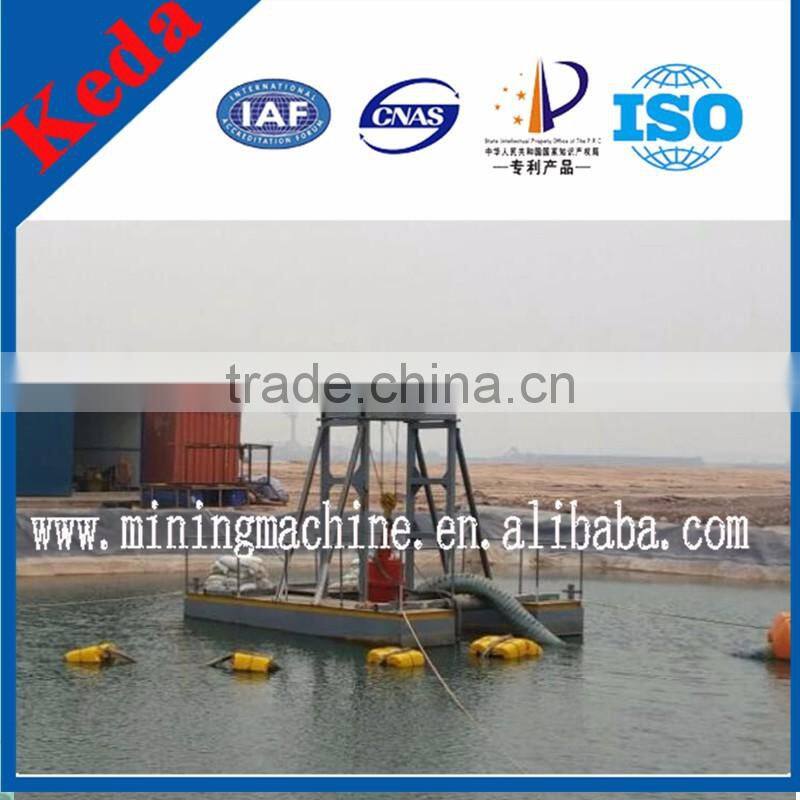

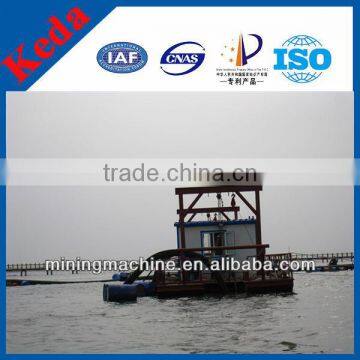

Submersible Pump Sand Dredger For Sale
- 10 Unit / Units per Month
- Qingdao
- D/P D/A Credit Card PayPal
- 2021 Hot newest small 350 1000m3 Cutter Suction Dredger
- Hot Newest Sand Suction Dredging Boat Dredger for Sale Engineers Available to Service Machinery Overseas Customized Provided MAP
- Sand Dredging Machine 2021 Hot Newest Small 12 Inch Cutter Suction Dredger Engineers Available to Service Machinery Overseas MAP
- 2018 Hot newest small 1000m3 Sand Cutter Suction Boat
- Customized small 12 Inch cutter suction river dredging equipment
- 2022 Hot Newest Small 1200m3 Cutter Suction Dredger Manufacturer Sand Pump Suction Dredger Sand Dredging High Gold Recovery Rate
Product Details
Condition: | New | Type: | Other, Submersible Pump Sand Dredger | Power Type: | Electric |
Dredging Depth: | 30 m | Draught: | 80 cm | Place of Origin: | Shandong, China |
Brand Name: | KD | Model Number: | KEDA | Dimension(L*W*H): | 12.5*4.6*1.3m |
Weight: | 15T | Certification: | ISO9001 | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Best Quality Submersible Pump Sand Dredger For Sale
1.Simple discription:
1. Economic and high sand dredging efficiency with can be with 30-50% denisty for fine sand
2.Portable to move and can be transported by truck.
3.Easy to operate with reliable quality.5mm Steel plate thickness or followed to your request.
4.Standard world-wide available gearboxes and famous electric components.
5.Operation by one man from spacious and low noise operating cabin
6.Controls and instruments mounted in ergonomic dash board
7.Dredging depth can be 30m from the water surface.
2.Parameter
Model | KDSX200-10 | KDQSB200-5 |
Dredger Body | ||
Dimention (m) L*W*H | 14*4.2*1.4m | 12*4.7*1.2 |
Float | ||
Pontoon | ||
Side pontoons 2sets | 11.5*1.0*1.4m | 11*1.25*1.2 |
Main pontoon 1set | 8.5*2.25*1.4m | 8*2.25*1.2 |
Material | CCSB | CCSB |
Total weight T | 30 | 20T |
Pump model | 6/4”D-G | ZJQ300-20-37 |
Rotation speed(r/m) | 1150 | 980 |
Dredging data | ||
Standard dredging depth | 8-10m | 5M |
Standard discharge distance | 500m | 50M |
Max.dredging depth(m) (optional) | 10m | 8M |
Max.discharge distance (m) ( medium and fine sand<0.235mm when min.flows) | 600m | 70M |
Max.standard dredging capacity m3/h | 50m3/h | 50-70m3/h |
Min.clean water flows(standard dredging depth and Max.discharge distance) | 250m3/h | 300m3/h |
Suction pipe diameter(mm) | 200 | |
Discharge pipe diameter(mm/inch) | 200 | 200mm |
More models are available depends on your project!
3.Production
1).One year warranty for quanlity problem of the machine,don't include quick-wear spare parts such as V-belt,O -ring and so on.
2).24 hours online service and response you at the first time once having questions .
3).Install and commissiong is available in overseas.
4).Professional OEM service
5).Professional exporting experience and well qulified international trader team to offer you the one-station service to the destination port.
Q:How many cubic meter the submersible sand dredger can deal with per hour?
A:We have severial models ,water flow capacity (mixed with sand)from 50m3/h-1000m3/h,sand output capacity can be 15-400m3/h.
Q:Can you dredger be used for the river bed with clay layer and stones?
A:Sure,we adopt advanced submersible pump which is with cutter head,it is easy to break the clay layer and pump the sand under .What is more,in the bottom of the pump,we use special device to prevent big stones to pumped in and block the pipe.
Q:Any certificate?
A:We produced strictly according to the ISO9001:2008 certificate requirement,customers are available to do the PSI.
Thanks for taking your precious time,any more question kindly contact me at any time.
