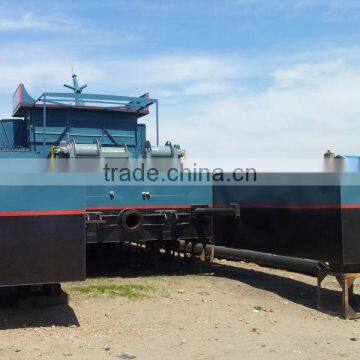

2015 Hot small river sand suction dredger for sale
1)We are one professional manufacturer and exporter of China dredger and some related products.
2)The dredger have passed ISO quality system certification and Chinese Classification Management System Certification with good quality and low price.
3)Using the advanced technical and famous brand spare parts ,we are sure our cutter suction dredges are very guaranteed with the quality.
---Introduction:
The dredger consists of a ship body, a conveying system, a water inlet system, an empty system and so on, wherein the conveying system comprises power, a clutch, a mortar pump, etc, and the empty system comprises a high-pressure hydraulic pump, a vacuum extractor and so on.
---Feature:
1)Completely assemlbed and fully tested afloat before delivery
2)Simple,rapid asseblely and dismantling
3)Reliable hydraulic system
4)Standard spare parts available from stock
---Basic Parameter:
| Model | KDSX200-10 | KDQSB200-5 |
| Dredger Body | ||
| Dimention (m) L*W*H | 14*4.2*1.4m | 12*4.7*1.2 |
| Float | ||
| Pontoon | ||
| Side pontoons 2sets | 11.5*1.0*1.4m | 11*1.25*1.2 |
| Main pontoon 1set | 8.5*2.25*1.4m | 8*2.25*1.2 |
| Material | CCSA | CCSA |
| Total weight T | 30 | 20T |
| Pump model | 6/4”D-G | ZJQ300-20-37 |
| Rotation speed(r/m) | 1150 | 980 |
| Dredging data | ||
| Standard dredging depth | 8-10m | 5M |
| Standard discharge distance | 500m | 50M |
| Max.dredging depth(m)(optional) | 10m | 8M |
| Max.discharge distance (m) ( medium and fine sand<0.235mm when min.flows) | 600m | 70M |
| Max.standard dredging capacity m3/h | 50m3/h | 50-70m3/h |
| Min.clean water flows(standard dredging depth and Max.discharge distance) | 250m3/h | 300m3/h |
| Suction pipe diameter(mm) | 200 | |
| Discharge pipe diameter(mm/inch) | 200 | 200mm |
---Products and workshop:
Pump
Diesel Engine
PlC Control

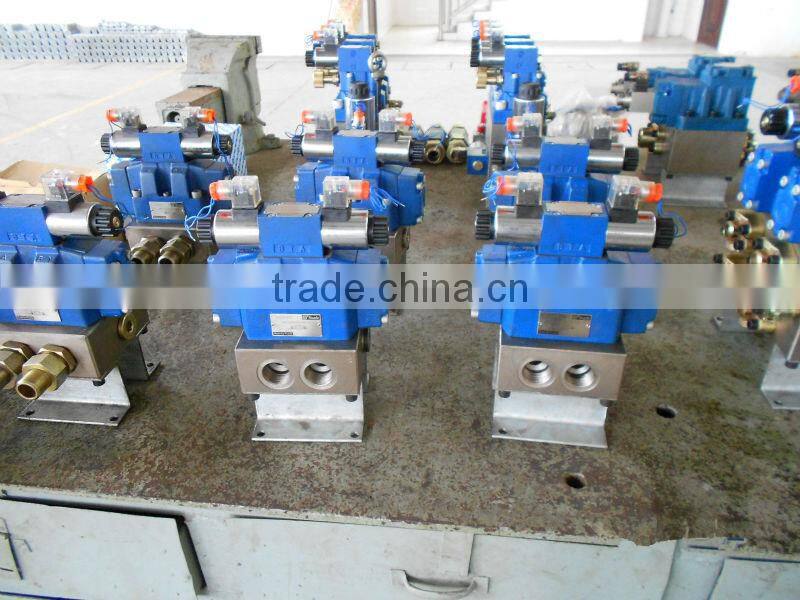

Hydraulic Control System

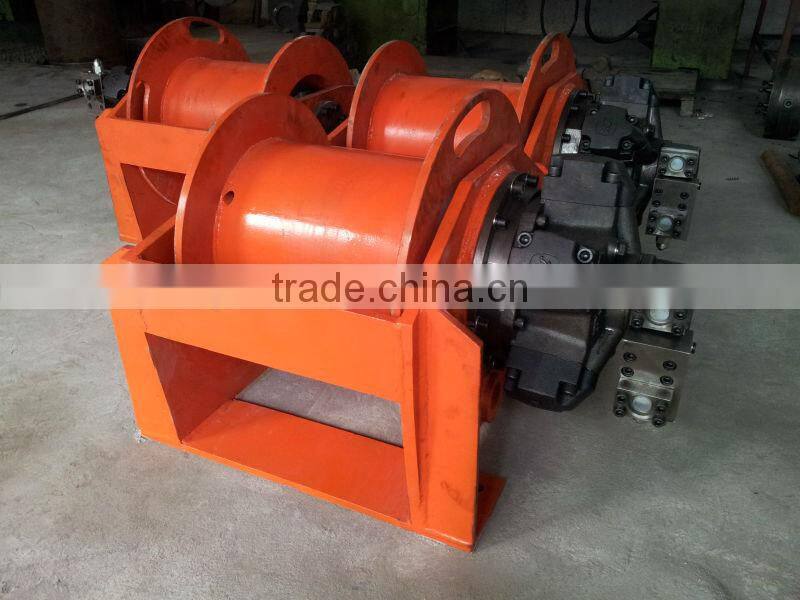

Winch
Why choose us?
1.The best quality
As original equipment manufacturer, we strictly comply to the quality standards that make our equipment world class and competing effectively with other known manufacturers from Europe and America. All the products must be checked by our specialized inspectors.
2.The best price
As the original manufacturer, our prices are cheaper by a great margin compared to the trading companies. In all cases, you will have a big savings from price.
3.New and rational design
We have a special design team, which can design the suitable dredger according to customer’s request.
4.Good after-sale service
Our engineers will arrive your worksite to assemble the dredger. Meanwhile, we can train your staff for free, until they can operate the dredger by themselves.
More information,please don't hesitate to contact me.
