Specifications
small gold melting furnace1.Multi-fuction
2.high purity>99.9%
3.ISO9001Certificate
4.Exported worldwidely

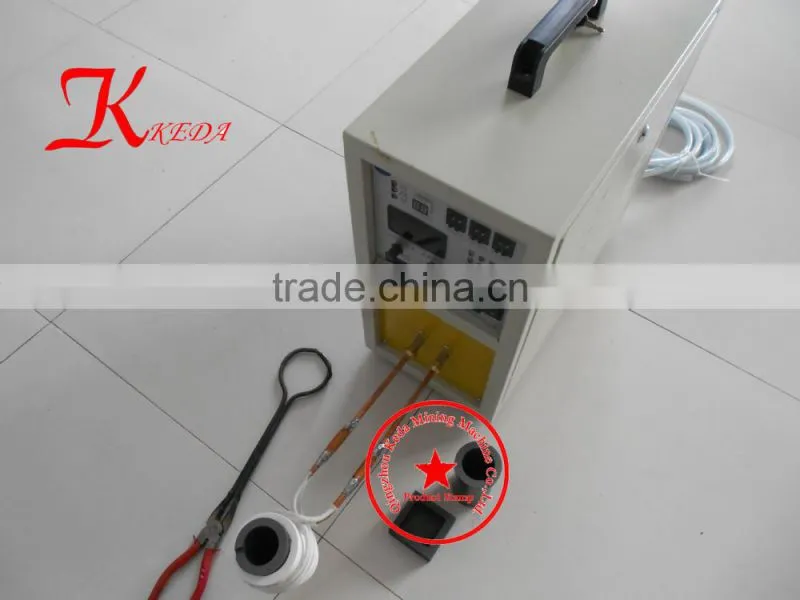

Good quality and price small gold melting furnace for sale and export
Good quality and price small gold melting furnace for sale and export Main Features:
1. Large power, low frequency and good permeability;
2. High efficiency, low electricity consumption, easy operation and installation;
3. With full load design, it can work 24-hour continuously;
4. All solid IGBT frequency conversion and power adjustment, which can track frequency automatically;
5. Automatic protection functions such as over voltage, over current, overheating
assures safety and reliability of equipment.
6. Can melt 1-50 kg/time, need 2 to 20 minutes/time, the highest temperature can reach 1800 degrees.
Basic Parameter
| Model | 15A | 25A | 35AB | 45AB | 60AB | 80AB | 100AB | 120AB |
| Power | 2kw | 5kw | 10kw | 15kw | 20kw | 30kw | 45kw | 70kw |
| Working power supply | 220V | 380V | 380V | 380V | 380V | 380V | 380V | 380V |
| High frequency | 30~50KHZ | |||||||
| Intermediate frequency | 1~15KHZ | |||||||
| Weight | 15KG | 25KG | 35KG | 70KG | 70KG | 90KG | 120KG | 150KG |
| Amount of molten metal | 1~2kg | 1~4kg | 1~8kg | 1~15kg | 1~25kg | 1~40kg | 1~50kg | 1~100kg |
| Process time | ≤5min | ≤5min | ≤10min | ≤15min | ≤20min | ≤30min | ≤40min | ≤40min |
Water Pipe Connection Diagram
Qingzhou Keda Ore Machinery Co.,LTD. is a professional ore machine manufacturer,which is professional to produce mining equipment with ISO9001:2008 and patent. Professional production equipment, sand-excavating pumping iron chosen sand equipment, bait-casting equipment, washing sand gold sand equipment, equipment manufacturing, magnetic separators, crushing machine, etc, and a hundres dozens of products. Our products had been exported to more than 15 countries, such as Ghana, Philippines, Vienam, Russia, North Korea, Indonesia, Gabon, America and so on.

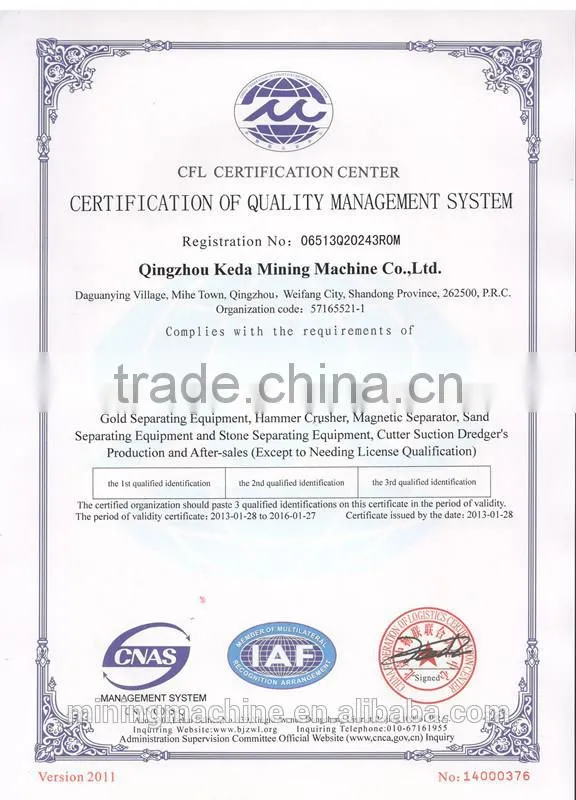

Certificate
1.Mining project consulting.
2.Testing sample in laboratory.
3.Providing whole production line equipments.
4.Dispatching engineer overseas guidance for equipments installation and testing.
5.Training your local first batch workers.
6.Help you to solve the problems during the equipment operation.
7.Rational and practical design according to customers' request proved.
8.Within warranty period,we provide free repair if quality problems emerge.
9.Engerneers are avaliable to service oversea to assemble and test the machine according to the contract.
10.Free training of the first batch of operater proved, any question or problem about the products can be answered via online support,phone calls or on-sit support 24 hours.
If you have any question ahout our products or company, please let us know, we will try our best to make you satisfied.
1. Is our company a direct or indirect producer? — Our company is a direct producer.
2. What's the main product of our company? — Our main product is gold extracting equipment.
3. Are our products certified or patented? — Yes.
Welcome to contact us and visit our factory.
