Reamer Head for Cutter Suction Dredger
- 100 Set / Sets per Month
- Qingdao Port
- T/T Credit Card PayPal
-
Gold mining jaw crusher equipment for sale, stone crusher machine
-
First-rate high efficiency SZZ series self-centering vibrating screen with ISO 9001 Certificate
-
China leader manufacturer ZHAOXIN high efficiency thickener
-
Ore benefication thickener machine, dewatering thickener price
-
china high quality center drive thickener, thickening equipment
-
Shandong Province high efficiency center drive thickener NZ-12, thickening machine
Product Details
Place of Origin: | Shandong, China | Brand Name: | KD | Model Number: | KD-CH |
Condition: | New | After-sales Service Provided: | No overseas service provided |
Product Description
Reamer Head for Cutter Suction Dredger

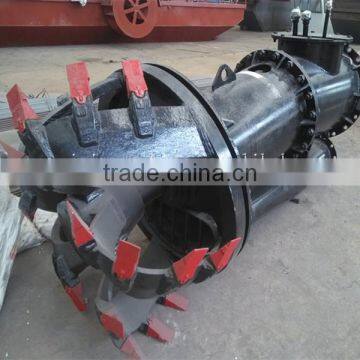

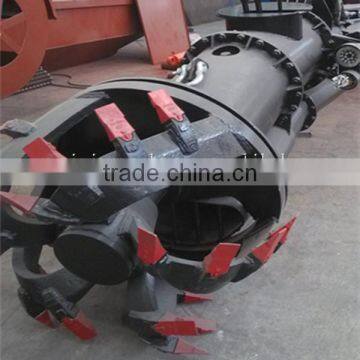

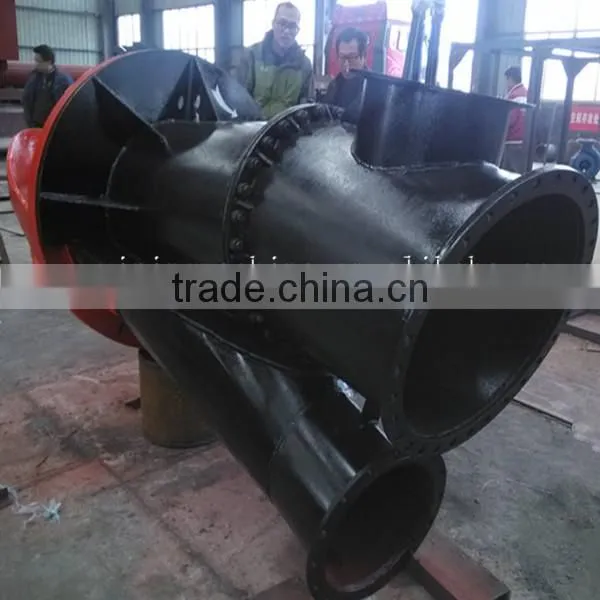

Pictures of Cutter Head for Cutter Suction Dredger
Features of Cutter Head for Cutter Suction Dredger
1. Made of cast steel, durable, certified by ISO9001:2008;
2. High processing capacity, high cost performance;
3. Good after sales service, support for maintenance and technology;
4. The cutter is directly driven by one low speed hydraulic motor.
Parameter of Cutter Head for Cutter Suction Dredger
KDJD-96 Cutter Head | |
Blade material | Cast steel 35 |
Inner diameter | 955mm |
Blades | 5pieces |
Suction pipe diameter | 400mm (1set) |
Motor model | XHS4C4-1300D47 |
Displacement | 8444ml/r |
Max. torque | 14000N.M |
Max.shaft power | 62kw |
Speed | 0-35r/min |
Flange diameter | 710mm |
Weight | About 2tons |
Model | Inner dia. (mm) | Blade | Speed (r/min) | Max. shaft power (KW) | Suction pipe dia. (mm) | Working capacity (m3/h) | Matched pump water flow (m3/h) |
KDJD-65 | 650 | 5 | 0-34 | 15 | 150 | 80 | 360-450 |
KDJD-83 | 830 | 5 | 0-34 | 35 | 250-300 | 150 | 750-800 |
KDJD-96 | 955 | 5 | 0-35 | 62 | 350-400 | 350 | 1200-1400 |
KDJD-110 | 1100 | 5 | 0-30 | 80 | 400 | 400 | 1500-2000 |
KDJD-133 | 1330 | 5 | 0-30 | 101 | 400-450 | 650 | 2000-2500 |
KDJD-155 | 1550 | 5 | 0-30 | 130 | 500-550 | 900 | 3000-3500 |
KDJD-175A | 1750 | 5 | 0-32 | 251 | 600-650 | 1200 | 4000-4500 |
KDJD-183 | 1830 | 5 | 0-30 | 375 | 600-650 | 1600 | 5000-6000 |
1.We are a modern large-scale machinery manufacturer devoting ourselves to the fields of desilting, sand pumping and gold mining with engineering design, producing, installation, commissioning and high quality after sales service.
2.All our products have been certified by ISO9001 and many of them have been exported to more than fifteen countries, such as Cote d'Ivoire, Colombia, Fiji, Ghana, Bangladesh, Sultan, Korea, USA, Russia, India, Papua New Guinea, Chile, Brazil, Mali, Nigeria and so on.
