Product Details
Condition: | New | Type: | Cutter Suction Dredger | Power Type: | Diesel |
Dredging Depth: | 20 m | Draught: | 200 cm | Place of Origin: | Shandong, China |
Brand Name: | Keda | Model Number: | KDCSD | Dimension(L*W*H): | Customized |
Weight: | Approx.60T | Certification: | ISO9001:2008 | Warranty: | 12 Months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Hydraulic River Sand Cutter Suction Dredger
A: --The dredger is equipped with a rapid connection-disconnection system for the pontoons, achieved using bolts at deck level, and hooks at the bottom.
B: --Further salient features of the vessel are the compact dredge pump drive incorporating a reduction gear with integrated pump bearing and a fresh water engine cooling system, based on the well cooling principle.
The technical parameter:
Basic CSD Parameter | ||||||
Model | KDCSD200 | KDCSD260 | KDCSD300 | KDCSD400 | KDCSD500 | |
Dredger Body | ||||||
Dimensions(L*W*H)m | 12.5*4.6*1.3 | 12.5*5.8*1.6 | 14.5*5.8*1.8 | 22*6.4*2 | 26*7.1*2.2 | |
Engine room(m) | 7.5*2.25*1.4 | 8*2.8*1.6 | 9*3.2*1.8 | 12*3.4*2 | 14*3.5*2.2 | |
Dredging data | ||||||
Standard dredging depth | 6-7m | 6-8m | 8-10m | 12-14m | 12-14m | |
Pump model | 8/6” | 10/8” | 12/10” | 14/12” | 450WN | |
Water flow | 450m3/h | 800m3/h | 1100m3/h | 1900m3/h | 3200m3/h | |
Suction pipeline diameter(mm/inch) | 260 | 300 | 350 | 400 | 500 | |
Discharge pipeline diameter(mm/inch) | 200 | 260 | 300 | 400 | 500 | |
Devices | ||||||
Total power KW | 176kw | 258kw | 353kw | 640kw | 1200kw | |
Generator set(kw) | 24 | 24 | 24 | 24 | 36 | |
Cutter head | ||||||
Diameter (mm) | 850-30 | 950-40 | 1100-50 | 1300-110 | 1700-140 | |
Winch(hydraulic) | ||||||
Ladder winches | JC-3000 | JC-4000 | JC-4000 | JC-6000 | JC-12000 | |
Swing winch | JC-3000 | JC-4000 | JC-4000 | JC-6000 | JC-10000 | |
Spuds | ||||||
Quantity | 2 | 2 | 2 | 2 | 2 | |
Spuds length*diameter(mm) | 8600*273 | 11000*300 | 13000*350 | 17000*450 | 17000*600 | |
Spuds weight/pic | 900kg | 1500kg | 2000kg | 3900kg | 5000kg |
Detailed photo:

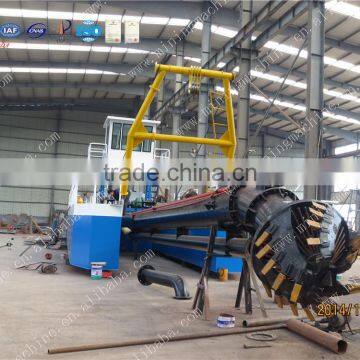

A.Cutter suction dredger

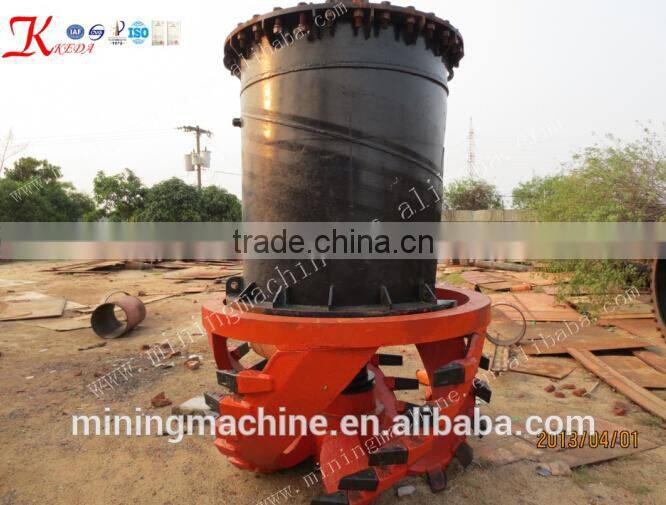

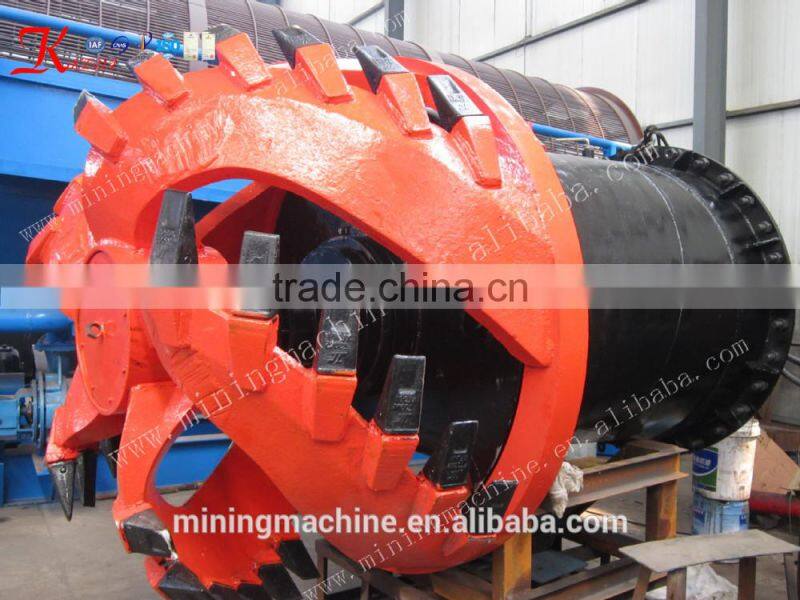

B.Cutter head
a. Cutter suction derdger always consist of 3 stages winch,which can control cutter head.
b. In the middle of a winch to rise and fall,
c. On both sides for transverse winch.

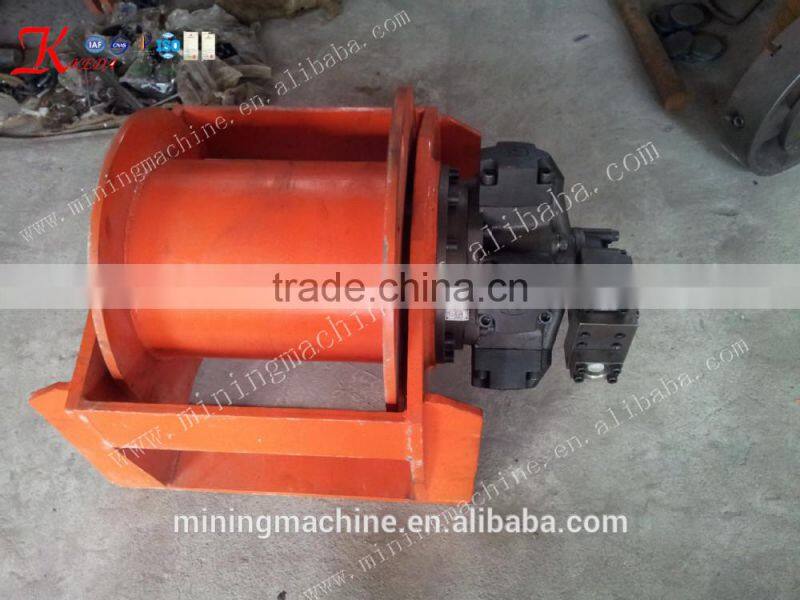

C.Winch
D.Hydraulic control system
E.Pump
F.Rubber hose,float and PE pipeline
1. Design
Ourdredgers are designed by senior engineer, who have specialized in shipbuilding and dredging work for many years. It guaranteesthat our dredgers are well-designed and of high-quality.
2. Good processing & Ex-work testing
Every dredger is built by skilled workers and inspected strictly to assure its high quality. Each
finished dredger will be tested in testing center to make sure it works smoothly when delivered tocustomers.
3. Dredger description
Sand suction transporter is made up of sand suction transporter and small sand dredger. It can
not only dredge sand in the river, but also can load sand to the river shore.
This dredger can unload sand into river and then the small shore sand suction dredger sucks
sand into river shore, or it has a set of pump, so the sand will be discharged to river shore by thepump.
Qingzhou Keda Mining Machine Co., Ltd is a factory with professional manufacture experience, compared with trading company, we have more advantages as below:
1)competitive price
2)customers can visit our factory and test our machines at anytime.
3)repairing the machine in time.
4)on-time delivery
ISO Quality Certificate
1.Are you a manufacturer ?
Yes, we have our own factory.
2.what kind of dredger should I choose?
It depends on your working environment , the dredger can be designed according to your need.
3.Can you use an imported engine?
Yes, we can, but the delievery time is much longer.
4.Can I visit your factory?
Yes, of course. We sincerely welcome you come and visit our factory if your time permits.
