Perfect Quality Cutter Suction Sand Dredger With SGS for Export

Perfect Quality Cutter Suction Sand Dredger With SGS for Export photo-1
US$ 200,000 - 500,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Cutter Suction Dredger
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Cutter Suction Dredger
Power Type Diesel
Dredging Depth 10 m
Draught 100 cm
Place of Origin Shandong, China
Brand Name Keda
Model Number KDCSD
Dimension(L*W*H) 12.5*4.6*1.3 m
Weight 40t
Certification ISO9001:2008
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

cutter suction sand dredger
1.Australia WARMAN Tech pump
2.German Schineider Electric System
3.Cummins engine USA
4 ISO9001

Oversea service provided cutter suction sand dredger

Product Description

1.Features





Cutter Suction Dredger  is a special dredging machine with ISO9001:2008Cutter Suction Dredger is flexible to most kinds of geologic structures and has a lot of obvious advantages :



1. Wide application range : It can be  widely used for mining, sand production, reclamation construction, desilting, land reclamation and so on.



2. High efficiency:  The max output can reach to 700 m³/h, water flow 800-5000 stere per hour, digging depth is 4-15 meters, discharge distance is 200-1500 meters.



3. Quick return, high profits: usually, the investor can Achieve profitability within half  a year. It is highly efficient with low cost, a good underwater dredging machine.



4. Standard quality:  the main body of the machine is stong, durable and low failure rate.







2.Basic Parameter of different kinds of cutter suction sand dredger



ModelKDCSD200KDCSD260KDCSD300KDCSD350KDCSD400KDCSD450KDCSD500
Dredger Body
Dimensions(L*W*H)m12.5*4.6*1.412.5*5.8*1.614.5*5.8*1.814.5*5.8*1.822*6.4*226*7*226*7.1*2.2
Engine room(m)7.5*2.25*1.48*2.8*1.69*3.2*1.89.5*3.2*1.812*3.4*214*3.4*214*3.5*2.2
Dredging data
Standard dredging depth   6-7m6-8m8-10m10-12m12-14m12-14m12-14m
Pump model8/6”10/8”12/10”12/10”14/12”14/12”450WN
Water flow450m³/h800m³/h1100m³/h1500m³/h1900m³/h2500m³/h3200m³/h
Suction pipeline diameter(mm/inch)260300350350400450500
Discharge pipeline diameter(mm/inch)200260300350400450500
Devices
Total power KW176kw258kw353kw480kw640kw930kw1200kw
Generator set(kw)24242424243636
Cutter head
Diameter (mm)850-30950-401100-501200-801300-1101500-1201700-140
Winch(hydraulic)
Ladder winchesJC-3000JC-4000JC-4000JC-6000JC-6000JC-10000JC-12000
Swing winchJC-3000JC-4000JC-4000JC-6000JC-6000JC-8000JC-10000
Spud
Quantity2222222
Spuds length*diameter(mm)8600*27311000*30013000*35015000*37717000*45017000*55017000*600
Spuds weight/pic900kg1500kg2000kg2500kg3900kg4500kg5000kg









3.Products Display of cutter suction sand dredger



Perfect quality cutter suction sand dredger with SGS for exportPerfect quality cutter suction sand dredger with SGS for export



Product detail: Cutter HeadPerfect quality cutter suction sand dredger with SGS for export



Product detail: Winch Perfect quality cutter suction sand dredger with SGS for export



Product detail: Warman Pump & Cummins Engine

Perfect quality cutter suction sand dredger with SGS for export



Product detail: Gear Box

Perfect quality cutter suction sand dredger with SGS for export

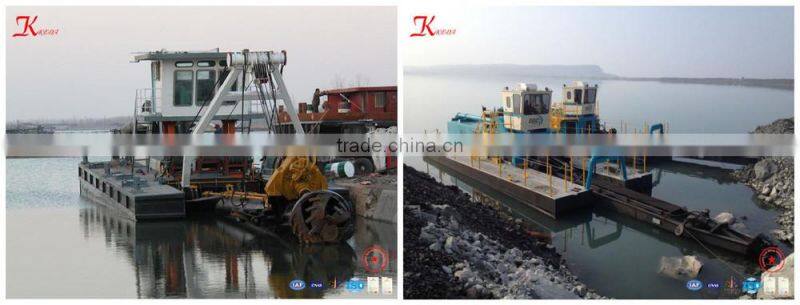

Cutter Suction Dredger in work site

Perfect quality cutter suction sand dredger with SGS for export

Perfect quality cutter suction sand dredger with SGS for export



Packaging & Shipping

 Cutter Suction Dredger package detail:

 Iron hoop box or bulk packed with container, or packed as your requests.

Perfect quality cutter suction sand dredger with SGS for export

Perfect quality cutter suction sand dredger with SGS for exportPerfect quality cutter suction sand dredger with SGS for export

Our Services



1.Rational and practical design according to customers' request proved.



2.Within warranty period,we provide free repair if quality problems emerge.



3.Engerneers are avaliable to service oversea to assemble and test the machine according to the contract.



4.Free training of the first batch of operater proved, any question or problem about the products can be answered via online support,phone calls or on-sit support 24 hours.



Company Information

Perfect quality cutter suction sand dredger with SGS for export



     Qingzhou Keda ore machinery Co.,LTD. is a professional ore machine manufacturer,which is professional to produce mining equipment with ISO9001:2008 and patent.  Professional production equipment, sand-excavating pumping iron chosen sand equipment, bait-casting equipment, washing sand gold sand equipment,  equipment manufacturing, magnetic separators, crushing machine, etc, and a hundres dozens of  products.



Certification

Perfect quality cutter suction sand dredger with SGS for export

Perfect quality cutter suction sand dredger with SGS for export



FAQ

1. Is our company a direct or indirect producer?— Our company is a direct producer.

2. Are our products certified or patented?           — Yes, we only provide certified products.

3. Can we offer good after sale service?             — Yes, the warranty of all our products is one year and all spare parts will be provided fast and cheap forever.

4.In order to provide you with efficient & suitable quotation and assistance for you, could you kindly tell

   me the following information:


1) Output capacity(m3/h)

2) Max.dredging depth(m)

3) Discharge distance(m)



If you have any question about our products or company, please let us know, we will try our best to make you satisfied.
