Hot Sale Hydraulic Sand Suction Dredger Header
- 30 Set / Sets per Month
- QINGDAO PORT
- T/T PayPal
- 2021 Hot newest small 350 1000m3 Cutter Suction Dredger
- Hot Newest Sand Suction Dredging Boat Dredger for Sale Engineers Available to Service Machinery Overseas Customized Provided MAP
- Sand Dredging Machine 2021 Hot Newest Small 12 Inch Cutter Suction Dredger Engineers Available to Service Machinery Overseas MAP
- 2018 Hot newest small 1000m3 Sand Cutter Suction Boat
- Customized small 12 Inch cutter suction river dredging equipment
- 2022 Hot Newest Small 1200m3 Cutter Suction Dredger Manufacturer Sand Pump Suction Dredger Sand Dredging High Gold Recovery Rate
Product Details
Condition: | New | Type: | Cutter Suction Dredger | Power Type: | Diesel |
Dredging Depth: | 12 m | Draught: | 100 cm | Place of Origin: | Shandong, China |
Brand Name: | KD | Model Number: | KDCSD260 | Dimension(L*W*H): | 12.5*5.8*1.6M |
Weight: | 40T | Certification: | ISO9001:2008 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
2014 Hot Sale Hydraulic Sand Suction Dredger
A.Features:
1) CCS ISO9001:2008 Certificate;
2) The cutter suction dredger ship is a kind of dismountable cutter suction dredger and non-propelled;
3) The cutter is directly driven by one low speed hydraulic motor;
4) The two spuds are operated by means of a hydraulic ram;
5) Oil for the hydraulic system is supplied by vane pumps;
B.Application:
1)The cutter suction dredger ship is flexible to most kinds of geologic structures and can be widely used in mineral digging, port(channel) dredging and reclamation works.
2) By absorbing advanced technology of Dutch and American related products, this series of
dredgers show their characteristics of rational design, all hydraulic control, simple operation, little maintenance and strong power.
3)The capacity of KDTJ dredgers range from 100cbm/h to 1000cbm/h, the dredging depth from 1m to 25m and discharging distance from 500m to 3000m which can satisfy different work demands.
C. Cutter Suction Dredger Parameter
Sand Dredger Parameter | |||||||
Model | KDCSD200 | KDCSD260 | KDCSD300 | KDCSD350 | KDCSD400 | KDCSD450 | KDCSD500 |
Dredger Body | |||||||
Dimensions(L*W*H) | 12.5*4.6*1.4 | 12.5*5.8*1.6 | 14.5*5.8*1.8 | 14.5*5.8*1.8 | 22*6.4*2 | 26*7*2 | 26*7.1*2.2 |
Engine room(m) | 7.5*2.25*1.4 | 8*2.8*1.6 | 9*3.2*1.8 | 9.5*3.2*1.8 | 12*3.4*2 | 14*3.4*2 | 14*3.5*2.2 |
Dredging data | |||||||
Dredging depth | 6-7m | 6-8m | 8-10m | 10-12m | 12-14m | 12-14m | 12-14m |
Pump model | 8/6” | 10/8” | 12/10” | 12/10” | 14/12” | 14/12” | 450WN |
Water flow | 450m3/h | 800m3/h | 1100m3/h | 1500m3/h | 1900m3/h | 2500m3/h | 3200m3/h |
Suction pipeline diameter(mm/inch) | 260 | 300 | 350 | 350 | 400 | 450 | 500 |
Discharge pipeline diameter (mm/inch) | 200 | 260 | 300 | 350 | 400 | 450 | 500 |
Devices | |||||||
Total power KW | 176kw | 258kw | 353kw | 480kw | 640kw | 930kw | 1200kw |
Generator set(kw) | 24 | 24 | 24 | 24 | 24 | 36 | 36 |
Cutter head | |||||||
Diameter (mm) | 850-30 | 950-40 | 1100-50 | 1200-80 | 1300-110 | 1500-120 | 1700-140 |
Winch(hydraulic) | |||||||
Ladder winches | JC-3000 | JC-4000 | JC-4000 | JC-6000 | JC-6000 | JC-10000 | JC-12000 |
Swing winch | JC-3000 | JC-4000 | JC-4000 | JC-6000 | JC-6000 | JC-8000 | JC-10000 |
Spuds | |||||||
Quantity | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Spuds length* diameter(mm) | 8600*273 | 11000*300 | 13000*350 | 15000*377 | 17000*450 | 17000*550 | 17000*600 |
Spuds weight/pic | 900kg | 1500kg | 2000kg | 2500kg | 3900kg | 4500kg | 5000kg |

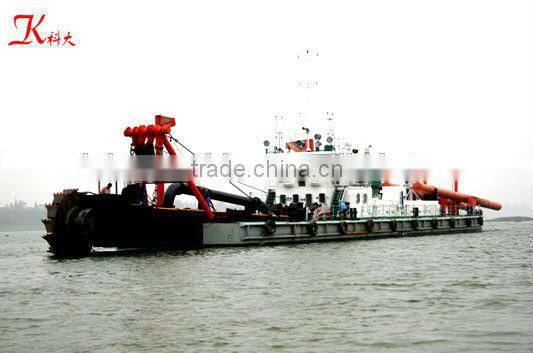

D. Sand Cutter Suction Dredger and Spare Parts Pictures:

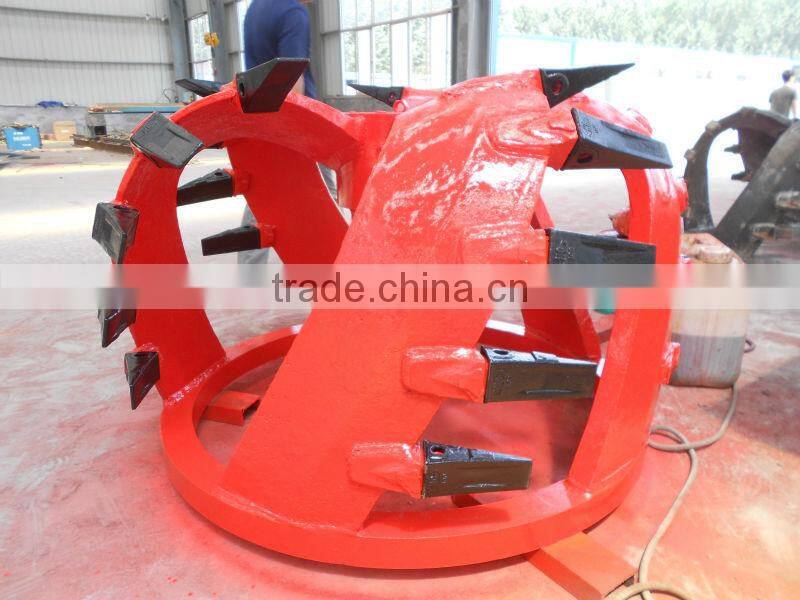

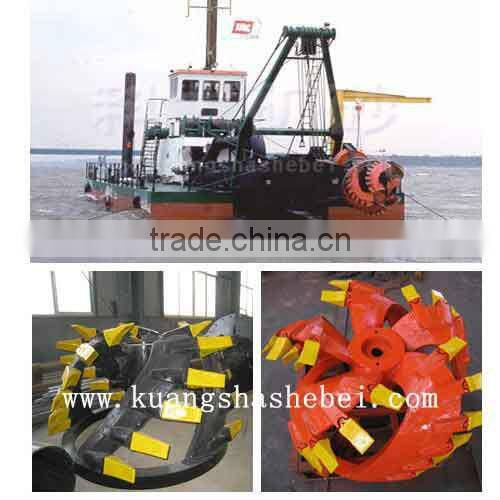

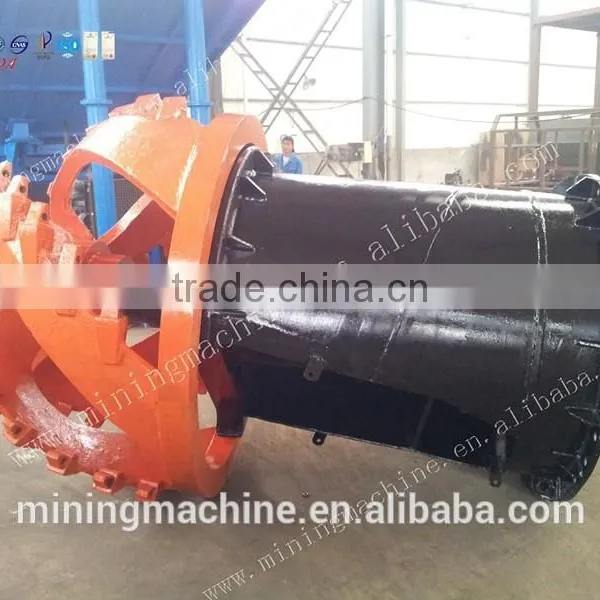

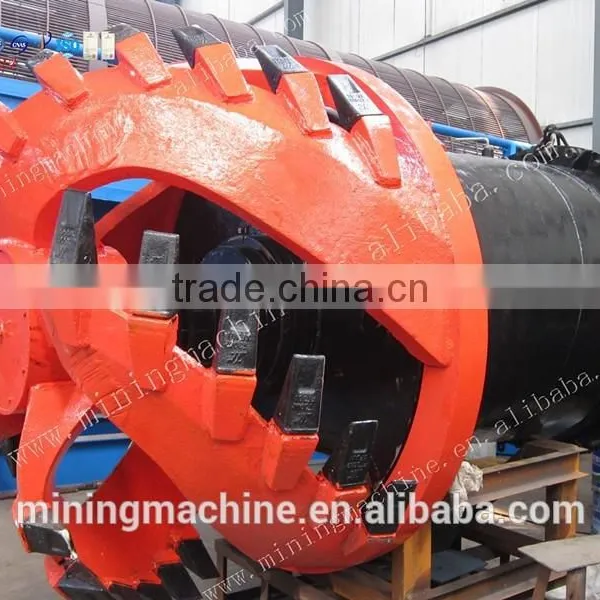

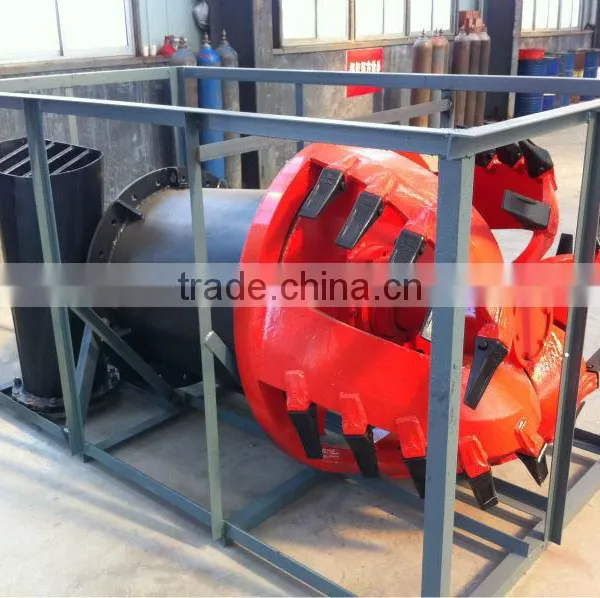

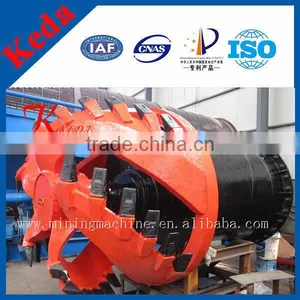

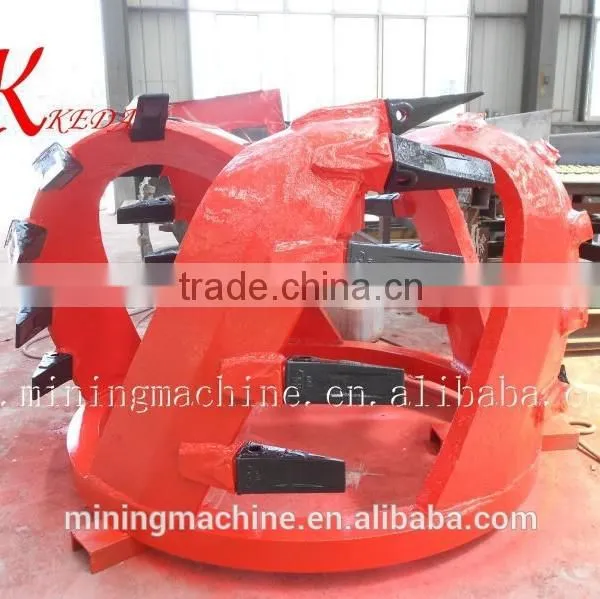

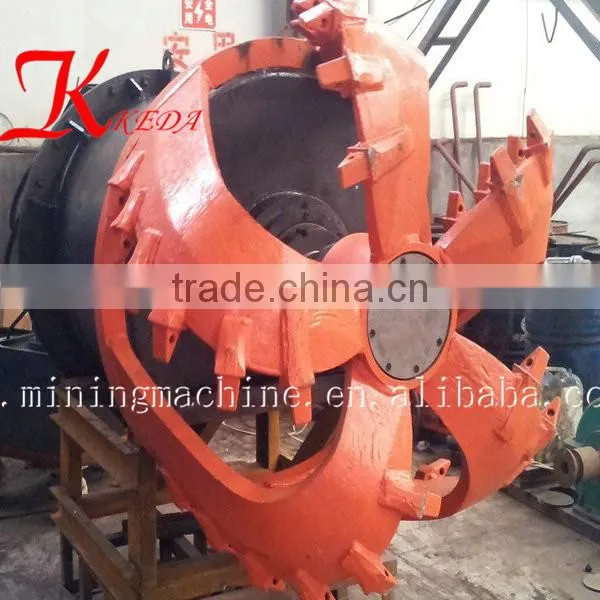

"Cutter Head"

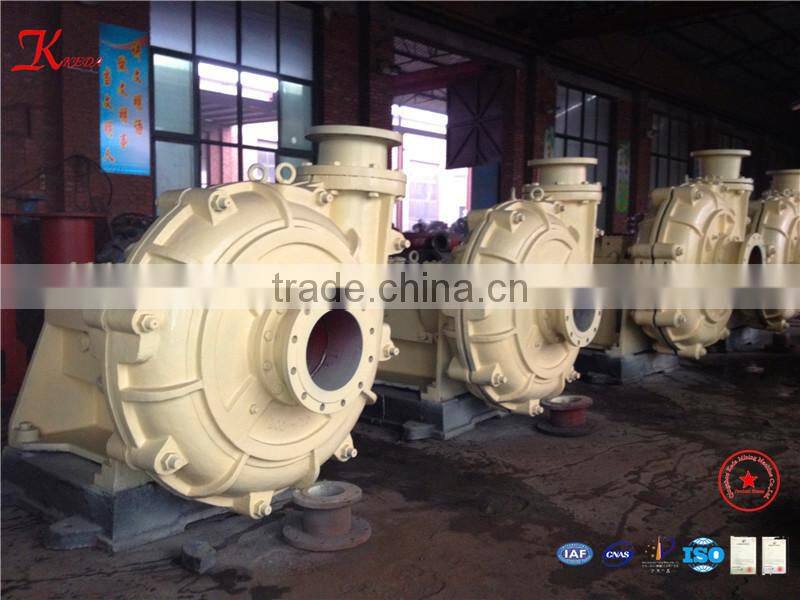

"Engine and Pump"

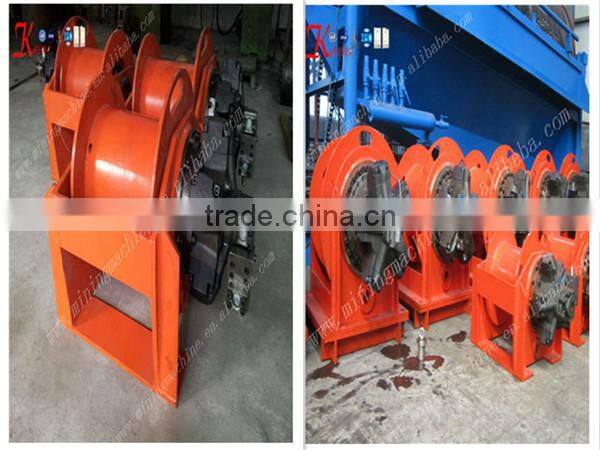

"Winch"
1.Company Brief Introduction
1) We are equipped with more than 10,000m2 area , workshop and advanced facilities to build dredgers.
2) We attach the development of scientific research, and form strategic partnership with the major research institutions.
3) Have CAD Aided Design R & D center and physical mineral processing laboratory,can work out reasonable and practical solution according to customer's technical requirements and work site,also had established and improve the equipment file and service system, concentrating on customer feedback to make the products constantly improved to meet the customers' different needs.
2. Company Certification:
3. Clients visit our factory:

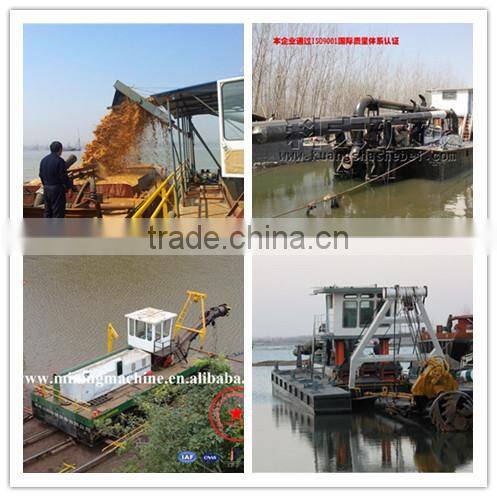

4. Cutter Suction Dredger Application:
1)After sales technical support,machine installation,spare part service anticipated training for our customers are provided by our specialist engineers and technicians.
2)Our technical service department is ready to serve and reslove your questions via online support,phone calls or on-sit support.
3)We reckon service insight to increase the levels of challenge with our specialized technical staff.Genial customer relations,technical facilities for intact spare parts deliverised with spare part labor warranty,affordable spare parts and on site service are just a few examples of our professinal custoemer approach.
1.Is our company a direct or indirect producer?
— Our company is a direct producer.
2. What's the main product of our company?
— Our main products are mud & sand dredger and gold extracting equipment.
3. Are our products certified or patented?
— Yes.
Sincerely welcome you to visit our factory. If need more details, please feel free to contact us any time!
Name: Brittany Wong
Qingzhou Keda Mining Machine Co.,Ltd.
Tel/Fax: 86-536-2105419
Email: sales09(at)
Skype: kedamachinery03
Website: http://miningmachine.en.china.cn
Welcome for sincere visit, if you are interested in any items of them,please contact me freely.I will reply you as soon as possible. Thank you.
