Efficient River Hydraulic Cutter Suction Dredger
1. River Hydraulic Cutter Suction Dredger Introduce
1)The sand dredge is a kind of dismountable cutter suction dredger and non-propelled.
The hull consists of three pontoons: the main pontoon, one side pontoon on port side and
one side pontoon on starboard side.
2)The cutter is directly driven by one low speed hydraulic motor.
3)The two spuds are operated by means of a hydraulic ram. The two separate swing
winches and the ladder which are each driven by a low speed hydraulic motor.
4)Oil for the hydraulic system is supplied by vane pumps.
5)The dredge pump shall be driven by a diesel engine.
2. River Hydraulic Cutter Suction Dredger Feature
1).Completely assembled and fully tested afloat before delivery
2).Simple ,rapid assembly and dismantling
3).Standard design, allowing early delivery and low price
4).Spare parts available from stock
5).Reliable hydraulic system
6).Fresh water engine cooling system
7).One man operation
8).Efficient fuel consumption
3.River Hydraulic Cutter Suction Dredger Parameter
Basic CSD Parameter | ||||||
Model | KDTJ200 | KDTJ260 | KDTJ300 | KDTJ400 | KDTJ500 |
|
Dredger Body |
| |||||
Dimensions(L*W*H)m | 12.5*4.6*1.3 | 12.5*5.8*1.6 | 14.5*5.8*1.8 | 22*6.4*2 | 26*7.1*2.2 |
|
Engine room(m) | 7.5*2.25*1.4 | 8*2.8*1.6 | 9*3.2*1.8 | 12*3.4*2 | 14*3.5*2.2 |
|
Dredging data |
| |||||
Standard dredging depth | 6-7m | 6-8m | 8-10m | 12-14m | 12-14m |
|
Pump model | 8/6” | 10/8” | 12/10” | 14/12” | 450WN |
|
Water flow | 450m3/h | 800m3/h | 1100m3/h | 1900m3/h | 3200m3/h |
|
Suction pipeline diameter(mm/inch) | 260 | 300 | 350 | 400 | 500 |
|
Discharge pipeline diameter(mm/inch) | 200 | 260 | 300 | 400 | 500 |
|
Devices |
| |||||
Total power KW | 176kw | 258kw | 353kw | 640kw | 1200kw |
|
Generator set(kw) | 24 | 24 | 24 | 24 | 36 |
|
Cutter head |
| |||||
Diameter (mm) | 850-30 | 950-40 | 1100-50 | 1300-110 | 1700-140 |
|
Winch(hydraulic) |
| |||||
Ladder winches | JC-3000 | JC-4000 | JC-4000 | JC-6000 | JC-12000 |
|
The parameter is just for your reference,we can design as your requirement.
4. River Hydraulic Cutter Suction Dredger Showing
Our dredgers working in the work site in different places of the world ,such as Bangladesh,
Southeast Asia,Africa,South America and so on.

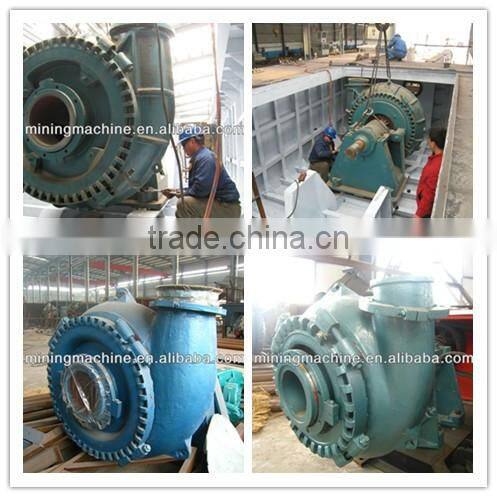

5. River Hydraulic Cutter Suction Dredger Spare Parts
We also supply the whole set of spare parts for dredgers.

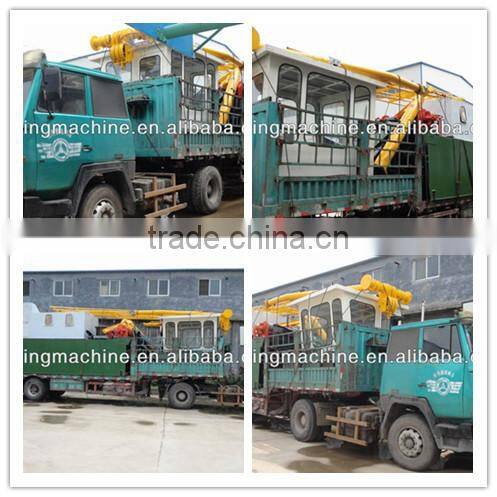

6. River Hydraulic Cutter Suction Dredger Shiping Pictures

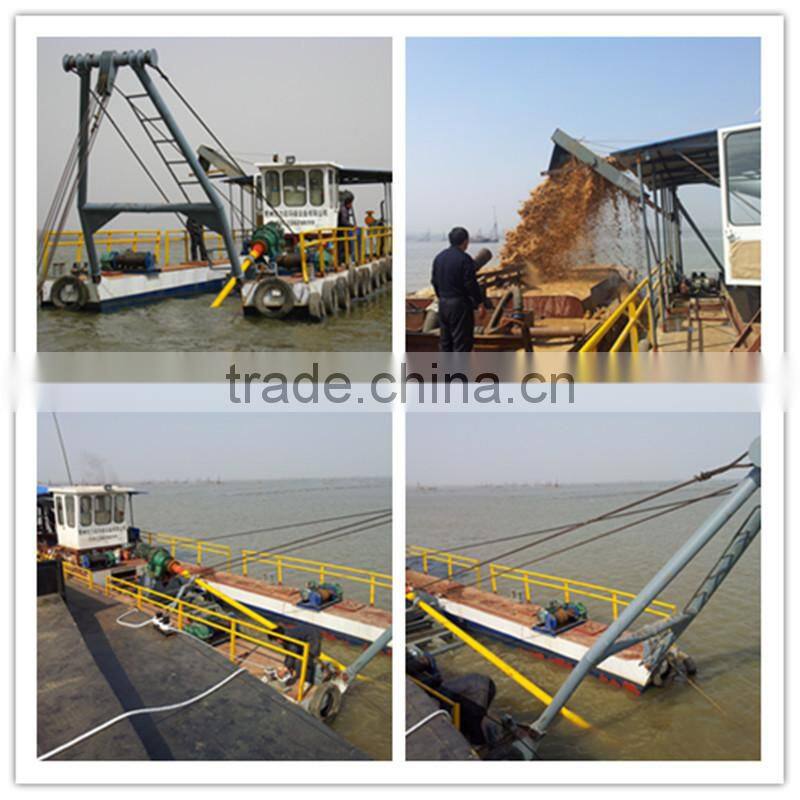

7. River Hydraulic Cutter Suction Dredger Working Site

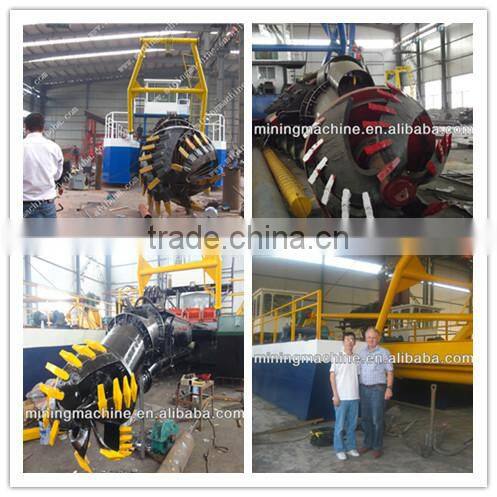

8.Customers Visiting
9.Company Information
1)Qingzhou Keda Mining Machine Co., Ltd.mainly produces iron selecting equipment,
kinds of drederes, dredging equipment, sand washing and sand making equipment,
gold panning equipment, magnetic separating, crusher and so on,
2)Products can produce according to the customers requirement and geographical condition.
3)It is a modern large-scale mineral processing equipment manufacturer for research and development,engineering design, producing installation, commissioning and after sale service.
4)Honesty and credit is our bussiness value , customer first.First-class quality and first-class
service is the business life
10.FAQ
In order to supply the best machine for you, could you tell me below information
ing capacity(t/h)?
2.Dredger dredging depth?
3.Dredger discharge distance(m)?
4.Any big stone in there?
11.Contact Person
Alice Li
Kede Mining Machinery Co.,ltd
Tel:0086-536-3880600
Mobile:0086-13793603966
Email:sales06 @miningmachine.net
Skype:kedamachinery06
Add:Qingzhou City,Shandong Province,China.
