2014 Demountable Hydraulic Cutter Suction Dredger
US$ 200,000 - 600,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Cutter Suction Dredger
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
20inch High Capacity Gold Gredger Mining MachineUS$ 150,000 - 300,000MOQ: 1 Set -
20inch High Capacity Gold Greddger Type Cutter Suction DredgerUS$ 150,000 - 300,000MOQ: 1 Set
-
Efficient River Hydraulic Cutter Suction Dredger For SaleUS$ 150,000 - 800,000MOQ: 1 Set
-
Cutter Suction Dredger Commins Engine AvaliableUS$ 200,000 - 500,000MOQ: 1 Set
-
Africa 10/8 Inch River Sand Dredger for Sale,River Sand Suction DredgerUS$ 150,000 - 300,000MOQ: 1 Set
Condition
New
Type
Cutter Suction Dredger
Power Type
Diesel
Dredging Depth
12 m
Draught
80 cm
Place of Origin
Shandong, China
Brand Name
KeDa
Model Number
KDJX-100
Dimension(L*W*H)
200m*7.8m*2.1m
Weight
100T
Certification
CE/ISO9001
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Cutter suction dredger is widely used for mining, sand production, reclamation construction, desilting, land reclamation and so on.
Technical Parameters
| Basic CSD Parameter | |||||||
| Model | KDCSD200 | KDCSD260 | KDCSD300 | KDCSD350 | KDCSD400 | KDCSD450 | KDCSD500 |
| Dredger Body | |||||||
| Dimensions(L*W*H)m | 12.5*4.6*1.4 | 12.5*5.8*1.6 | 14.5*5.8*1.8 | 14.5*5.8*1.8 | 22*6.4*2 | 26*7*2 | 26*7.1*2.2 |
| Engine room(m) | 7.5*2.25*1.4 | 8*2.8*1.6 | 9*3.2*1.8 | 9.5*3.2*1.8 | 12*3.4*2 | 14*3.4*2 | 14*3.5*2.2 |
| Dredging data | |||||||
| Standard dredging depth | 6-7m | 6-8m | 8-10m | 10-12m | 12-14m | 12-14m | 12-14m |
| Pump model | 8/6” | 10/8” | 12/10” | 12/10” | 14/12” | 14/12” | 450WN |
| Water flow | 450m3/h | 800m3/h | 1100m3/h | 1500m3/h | 1900m3/h | 2500m3/h | 3200m3/h |
| Suction pipeline diameter(mm/inch) | 260 | 300 | 350 | 350 | 400 | 450 | 500 |
| Discharge pipeline diameter(mm/inch) | 200 | 260 | 300 | 350 | 400 | 450 | 500 |
| Devices | |||||||
| Total power KW | 176kw | 258kw | 353kw | 480kw | 640kw | 930kw | 1200kw |
| Generator set(kw) | 24 | 24 | 24 | 24 | 24 | 36 | 36 |
| Cutter head | |||||||
| Diameter (mm) | 850-30 | 950-40 | 1100-50 | 1200-80 | 1300-110 | 1500-120 | 1700-140 |
| Winch(hydraulic) | |||||||
| Ladder winches | JC-3000 | JC-4000 | JC-4000 | JC-6000 | JC-6000 | JC-10000 | JC-12000 |
| Swing winch | JC-3000 | JC-4000 | JC-4000 | JC-6000 | JC-6000 | JC-8000 | JC-10000 |
| Spuds | |||||||
| Quantity | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Spuds length*diameter(mm) | 8600*273 | 11000*300 | 13000*350 | 15000*377 | 17000*450 | 17000*550 | 17000*600 |
| Spuds weight/pic | 900kg | 1500kg | 2000kg | 2500kg | 3900kg | 4500kg | |
Detailed photo:

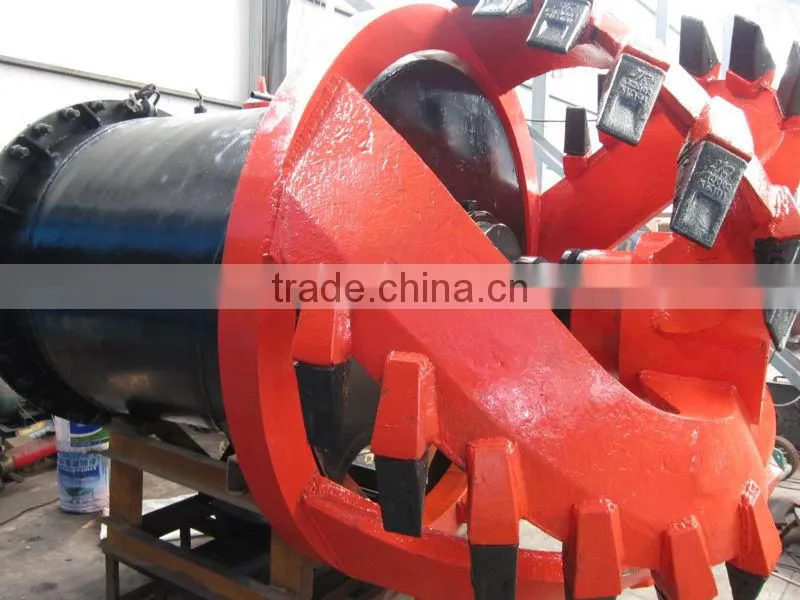

a.cutter head

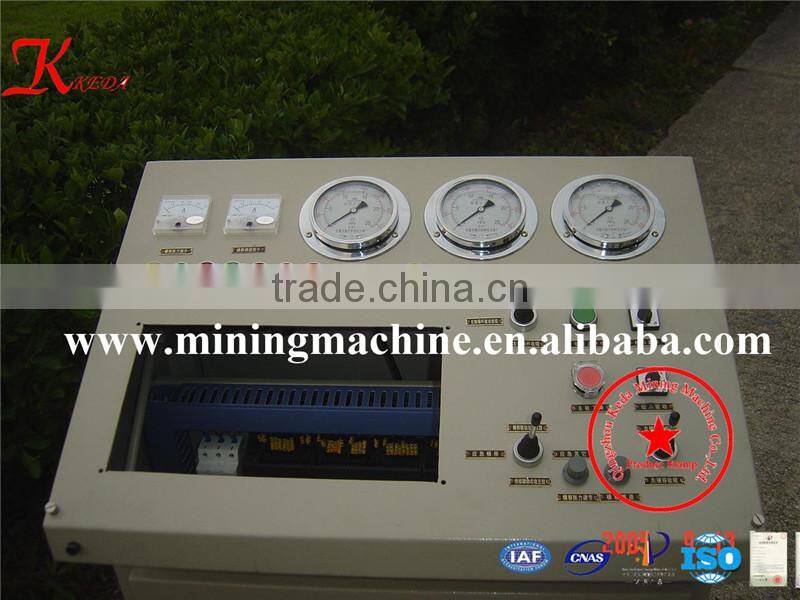

b. Hydraulic control system

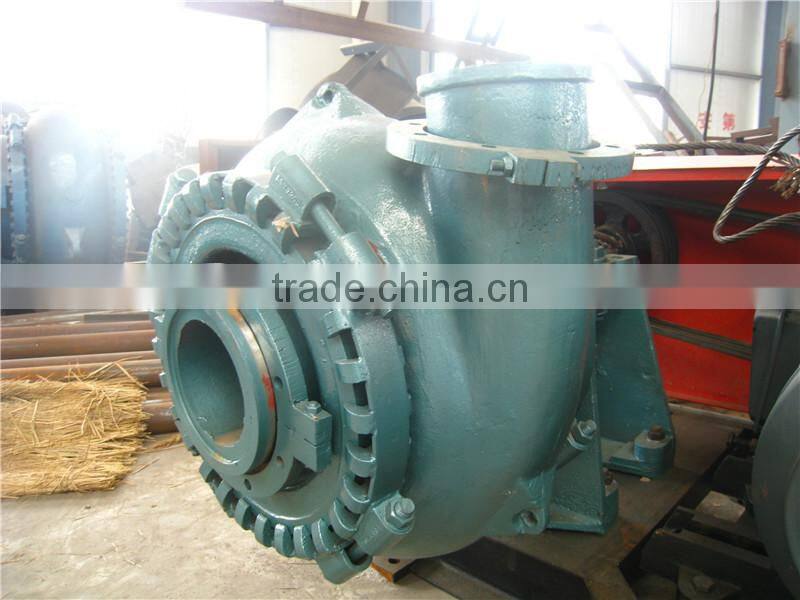

c.Engine and pump

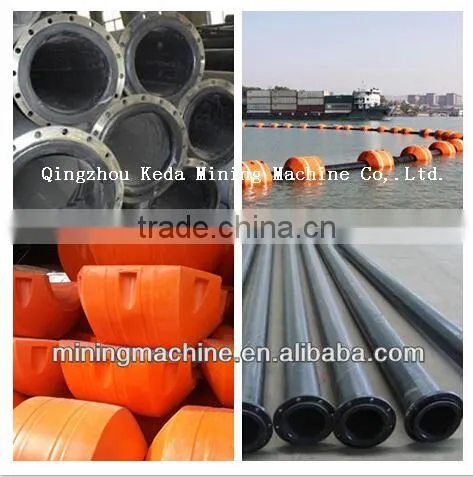

d. Rubber hose,float and PE pipeline

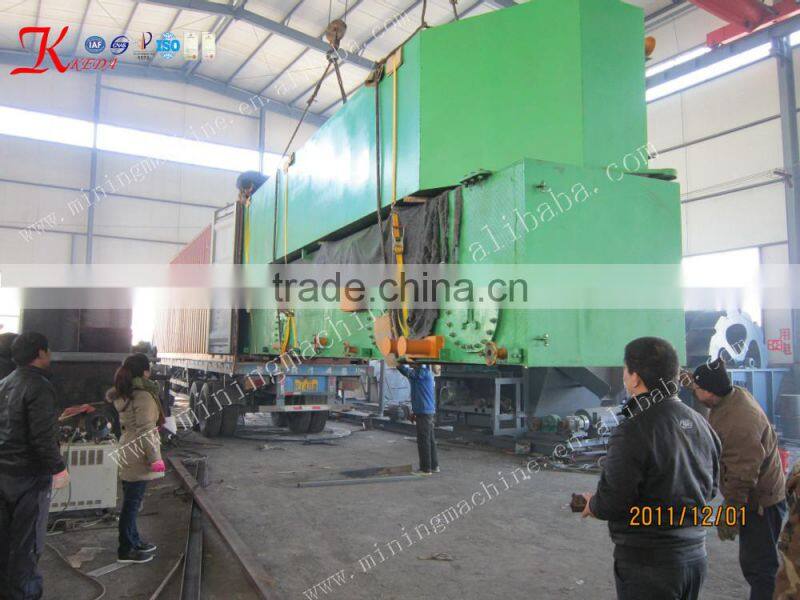

Packaging & Shipping
Company Information
a.Certificate
b. successful case
FAQ
1.Are you a manufacturer ?
Yes, we have our own factory.
2.what kind of dredger should I choose?
It depends on your working environment , the dredger will be designed according to your need.
3.Can you use an imported engine?
Yes, but the delievery time is much longer.
4.Can I visit your factory?
Yes, of course. We sincerely welcome you come and visit our factory if your time permits.
