Hi-Q Oversea service provided Cutter Suction Dredger made in China
Cutter Suction Dredger is a special dredging machine with ISO9001:2008 and patent . Cutter Suction Dredger is flexible to most kinds of geologic structures and has a lot of obvious advantages :
a. Wide application range : It can be widely used for mining, sand production, reclamation construction, desilting, land reclamation and so on.
b. High efficiency: The max output can reach to 700 m³/h, water flow 800-5000 stere per hour, digging depth is 4-15 meters, discharge distance is 200-1500 meters.
c. Quick return, high profits: usually, the investor can Achieve profitability within half a year. It is highly efficient with low cost, a good underwater dredging machine.
d. Standard quality: the main body of the machine is stong, durable and low failure rate.
Basic Parameters of the different kinds of Cutter Suction Dredger
| Model | KDCSD200 | KDCSD260 | KDCSD300 | KDCSD350 | KDCSD400 | KDCSD450 | KDCSD500 |
| Dredger Body | |||||||
| Dimensions(L*W*H)m | 12.5*4.6*1.4 | 12.5*5.8*1.6 | 14.5*5.8*1.8 | 14.5*5.8*1.8 | 22*6.4*2 | 26*7*2 | 26*7.1*2.2 |
| Engine room(m) | 7.5*2.25*1.4 | 8*2.8*1.6 | 9*3.2*1.8 | 9.5*3.2*1.8 | 12*3.4*2 | 14*3.4*2 | 14*3.5*2.2 |
| Dredging data | |||||||
| Standard dredging depth | 6-7m | 6-8m | 8-10m | 10-12m | 12-14m | 12-14m | 12-14m |
| Pump model | 8/6” | 10/8” | 12/10” | 12/10” | 14/12” | 14/12” | 450WN |
| Water flow | 450m³/h | 800m³/h | 1100m³/h | 1500m³/h | 1900m³/h | 2500m³/h | 3200m³/h |
| Suction pipeline diameter(mm/inch) | 260 | 300 | 350 | 350 | 400 | 450 | 500 |
| Discharge pipeline diameter(mm/inch) | 200 | 260 | 300 | 350 | 400 | 450 | 500 |
| Devices | |||||||
| Total power KW | 176kw | 258kw | 353kw | 480kw | 640kw | 930kw | 1200kw |
| Generator set(kw) | 24 | 24 | 24 | 24 | 24 | 36 | 36 |
| Cutter head | |||||||
| Diameter (mm) | 850-30 | 950-40 | 1100-50 | 1200-80 | 1300-110 | 1500-120 | 1700-140 |
| Winch(hydraulic) | |||||||
| Ladder winches | JC-3000 | JC-4000 | JC-4000 | JC-6000 | JC-6000 | JC-10000 | JC-12000 |
| Swing winch | JC-3000 | JC-4000 | JC-4000 | JC-6000 | JC-6000 | JC-8000 | JC-10000 |
| Spud | |||||||
| Quantity | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Spuds length*diameter(mm) | 8600*273 | 11000*300 | 13000*350 | 15000*377 | 17000*450 | 17000*550 | 17000*600 |
| Spuds weight/pic | 900kg | 1500kg | 2000kg | 2500kg | 3900kg | 4500kg | 5000kg |
Products Display

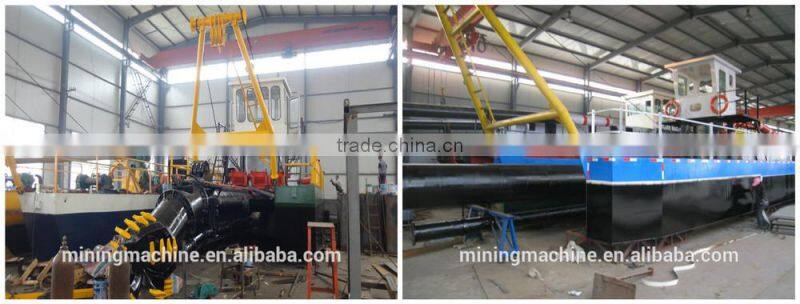

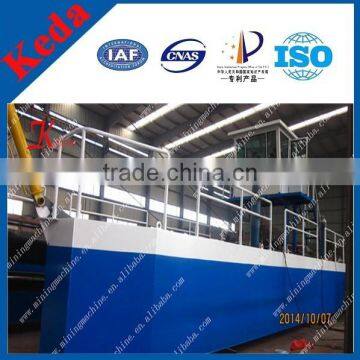

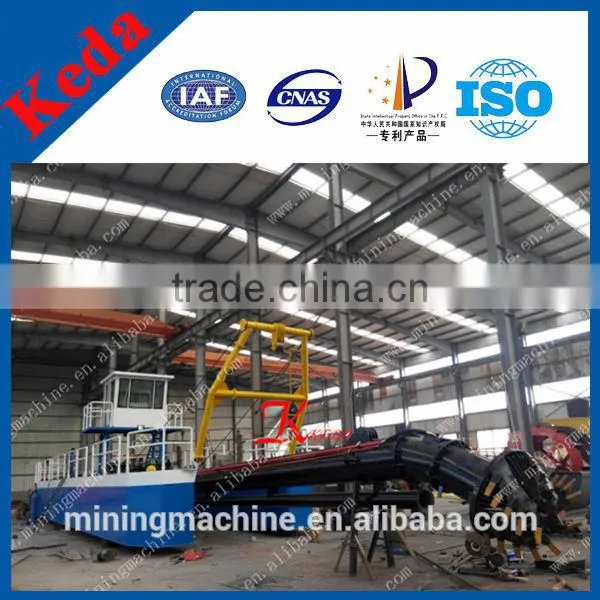

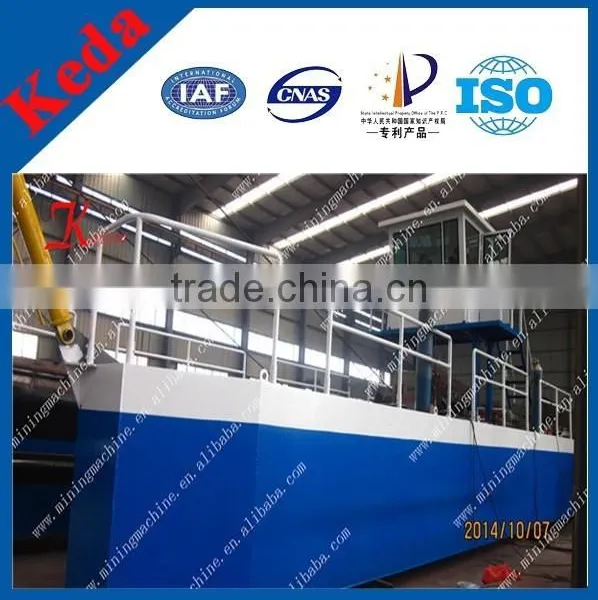

Cutter Suction Dredger in the company
Product detail: Engine and pump

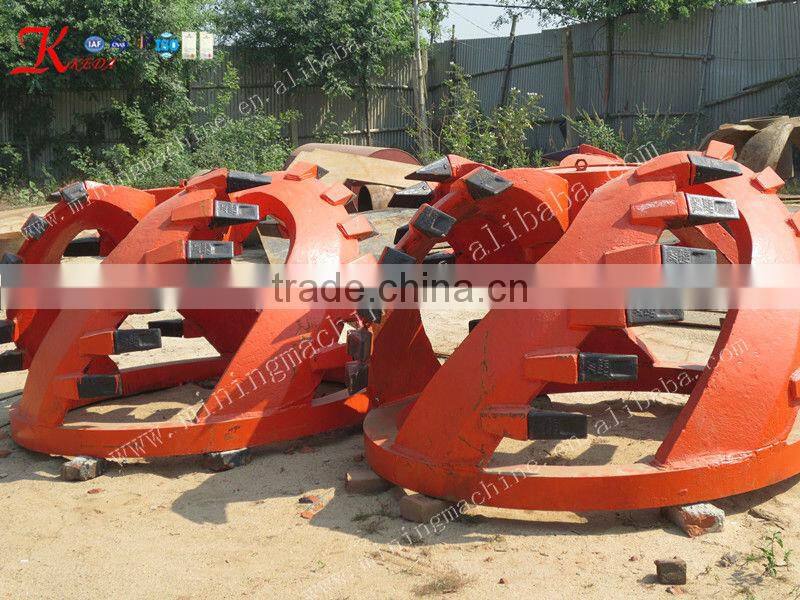

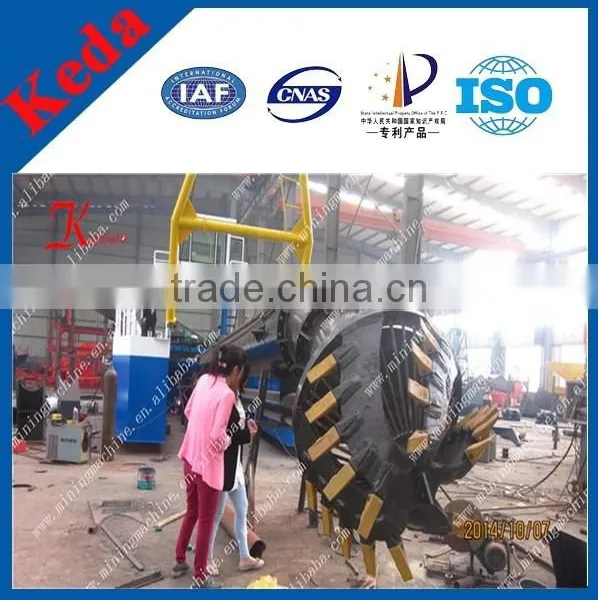

Product detail: Cutter Head

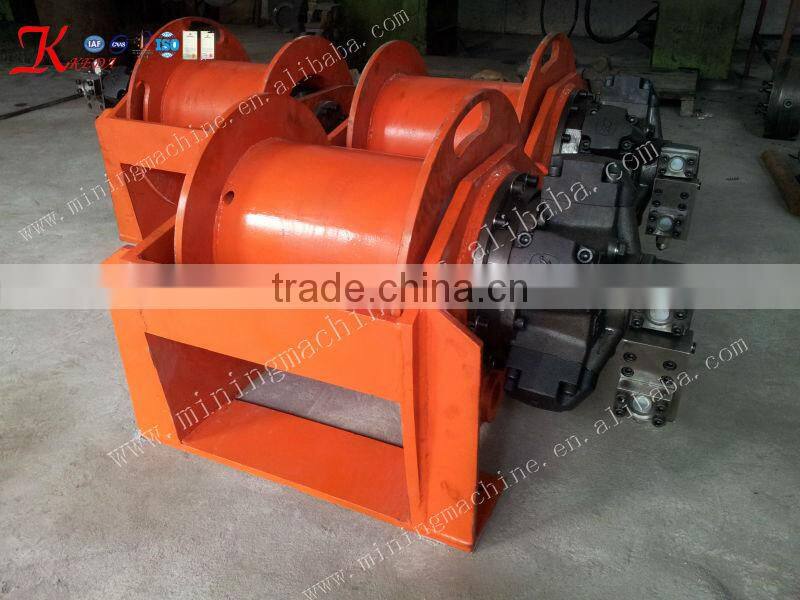

Product detail: Winch
Cutter Suction Dredger in work site

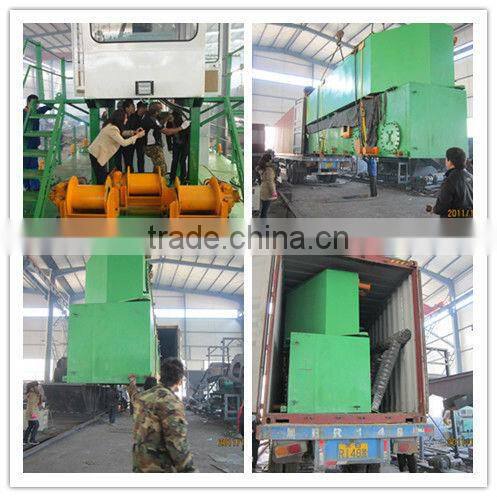

Iron hoop box or bulk packed with container, or packed as your requests.
Qingzhou Keda ore machinery Co.,LTD. is a professional ore machine manufacturer,which is professional to produce mining equipment with ISO9001:2008 and patent. Professional production equipment, sand-excavating pumping iron chosen sand equipment, bait-casting equipment, washing sand gold sand equipment, equipment manufacturing, magnetic separators, crushing machine, etc, and a hundres dozens of products.
Certificate
1.Rational and practical design according to customers' request proved.
2.Within warranty period,we provide free repair if quality problems emerge.
3.Engerneers are avaliable to service oversea to assemble and test the machine according to the contract.
4.Free training of the first batch of operater proved, any question or problem about the products can be answered via online support,phone calls or on-sit support 24 hours.
In order to provide you with efficient & suitable quotation and assistance for you, could you kindly tell me the following information:
1) Output capacity(m3/h)
2) Max.dredging depth(m)
3) Discharge distance(m)
If you have any question about our products or company, please let us know, we will try our best to make you satisfied.
