hot sale trailing suction hopper dredger with patent
- 30 Set / Sets per Month
- Qingdao
- Credit Card PayPal
- 2021 Hot newest small 350 1000m3 Cutter Suction Dredger
- Hot Newest Sand Suction Dredging Boat Dredger for Sale Engineers Available to Service Machinery Overseas Customized Provided MAP
- Sand Dredging Machine 2021 Hot Newest Small 12 Inch Cutter Suction Dredger Engineers Available to Service Machinery Overseas MAP
- 2018 Hot newest small 1000m3 Sand Cutter Suction Boat
- Customized small 12 Inch cutter suction river dredging equipment
- 2022 Hot Newest Small 1200m3 Cutter Suction Dredger Manufacturer Sand Pump Suction Dredger Sand Dredging High Gold Recovery Rate
Product Details
Condition: | New | Type: | Cutter Suction Dredger | Power Type: | Diesel |
Dredging Depth: | 15 m | Draught: | 1500 cm | Place of Origin: | Shandong, China |
Brand Name: | KD | Model Number: | KDCSD | Dimension(L*W*H): | 12.5*4.6*1.3m |
Weight: | 60t | Certification: | ISO9001 | Warranty: | 1 year warranty |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
trailing suction hopper dredgering capacity 100-1000m3/h
2.dredging depth 5-18m
3.discharge distance:1500m
hot sale trailing suction hopper dredger with patent
1.Features
a.Design according to customer's requriments.
b.It is highly efficient with low cost, a best underwater dredging machine.
c.Simple,rapid assembly and dismantling.
The dredger is equipped with a rapid connection-disconnection system for the pontoons, achieved using bolts at deck level, and hooks at the bottom.
Further salient features of the vessel are the compact dredge pump drive incorporating a reduction gear with integrated pump bearing and a fresh water engine cooling system, based on the well cooling principle.
2.Basic parameter of hot sale trailing suction hopper dredger with patent
Basic Parameter | |||||||
Model | KDCSD200 | KDCSD260 | KDCSD300 | KDCSD350 | KDCSD400 | KDCSD450 | KDCSD500 |
trailing suction hopper dredger Body | |||||||
Dimensions(L*W*H)m | 12.5*4.6*1.4 | 12.5*5.8*1.6 | 14.5*5.8*1.8 | 14.5*5.8*1.8 | 22*6.4*2 | 26*7*2 | 26*7.1*2.2 |
Engine room(m) | 7.5*2.25*1.4 | 8*2.8*1.6 | 9*3.2*1.8 | 9.5*3.2*1.8 | 12*3.4*2 | 14*3.4*2 | 14*3.5*2.2 |
Dredging data | |||||||
Standard dredging depth | 6-7m | 6-8m | 8-10m | 10-12m | 12-14m | 12-14m | 12-14m |
Pump model | 8/6” | 10/8” | 12/10” | 12/10” | 14/12” | 14/12” | 450WN |
Water flow | 450m3/h | 800m3/h | 1100m3/h | 1500m3/h | 1900m3/h | 2500m3/h | 3200m3/h |
Suction pipeline diameter(mm/inch) | 260 | 300 | 350 | 350 | 400 | 450 | 500 |
Discharge pipeline diameter(mm/inch) | 200 | 260 | 300 | 350 | 400 | 450 | 500 |
Devices | |||||||
Total power KW | 176kw | 258kw | 353kw | 480kw | 640kw | 930kw | 1200kw |
Generator set(kw) | 24 | 24 | 24 | 24 | 24 | 36 | 36 |
Cutter head | |||||||
Diameter (mm) | 850-30 | 950-40 | 1100-50 | 1200-80 | 1300-110 | 1500-120 | 1700-140 |
Winch(hydraulic) | |||||||
Ladder winches | JC-3000 | JC-4000 | JC-4000 | JC-6000 | JC-6000 | JC-10000 | JC-12000 |
Swing winch | JC-3000 | JC-4000 | JC-4000 | JC-6000 | JC-6000 | JC-8000 | JC-10000 |
Spuds | |||||||
Quantity | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Spuds length*diameter(mm) | 8600*273 | 11000*300 | 13000*350 | 15000*377 | 17000*450 | 17000*550 | 17000*600 |
Spuds weight/pic | 900kg | 1500kg | 2000kg | 2500kg | 3900kg | 4500kg | 5000kg |
Cummins Engine:which is global warranty,spare parts can be available in short time! Hydraulic values:Germany Rexroth series,famouse brand to make sure the dredger can be with reliable hydraulic system.
3. Equipment Component Show

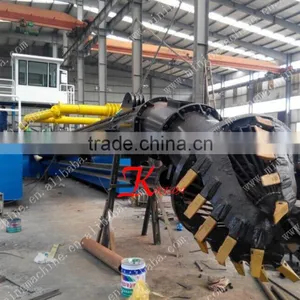

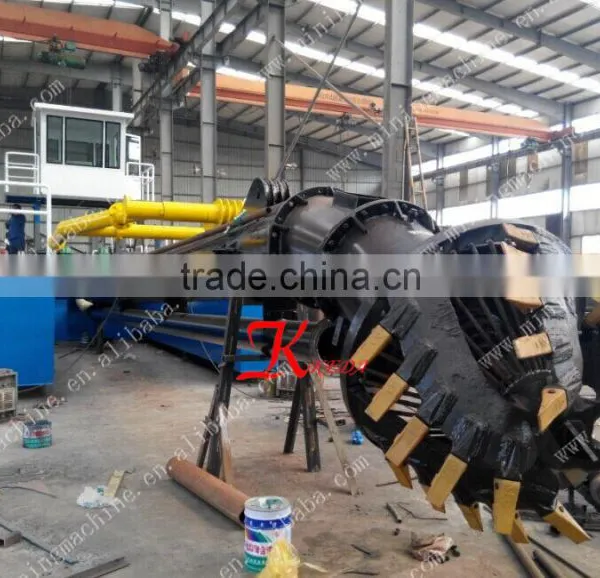

Cutter head
Engine and Pump
4.Company Introduction
Keda Mining Machine Co.,Ltd.
1). We are professional cutter suction dredger manufacturer with patent in china.
2).All products have been certified by ISO9001-2008. and have been exported to Ghana, Bangladesh, Sultan, Korea and so on.
Certificate files
5.Contact Us
Welcome to visit our factory and please feel free to contact me.
Peter Pan
Skype:kedamachinery03
E-mail:sales03(@)
