River sand pump dredger with dredging pumps
- 3 Set / Sets per Month
- Qingdao
- T/T PayPal
- bucket wheel excavator 2000m3/h-7000m3/h
- bucket wheel excavator 500m3/h-7000m3/h
- bucket wheel excavator 500tph-2500tph
- 2021 Hot newest small 350 1000m3 Cutter Suction Dredger
- Hot Newest Sand Suction Dredging Boat Dredger for Sale Engineers Available to Service Machinery Overseas Customized Provided MAP
- Sand Dredging Machine 2021 Hot Newest Small 12 Inch Cutter Suction Dredger Engineers Available to Service Machinery Overseas MAP
Product Details
Condition: | New | Type: | Cutter Suction Dredger | Power Type: | Diesel |
Dredging Depth: | 15 m | Draught: | 120 cm | Place of Origin: | Shandong, China |
Brand Name: | Keda | Model Number: | KDTJ200 | Dimension(L*W*H): | 18.5*4.6*1.4 |
Weight: | 100T | Certification: | ISO9001 | Warranty: | 1years |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

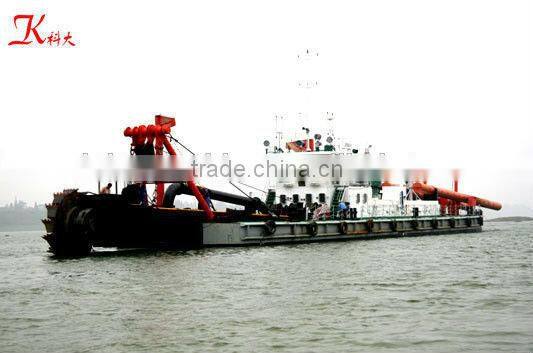

River sand pump dredger with dredging pumps
1. River sand pump dredger application
1)Cutter Suction Dredger is flexible to most kinds of geologic structures and can be widely used in mineral digging, port(channel) dredging and reclamation works.
2) By absorbing advanced technology of Dutch and American related products, this series of dredgers show their characteristics of rational design, all hydraulic control, simple operation, little maintenance and strong power.
3)The capacity of KDTJ dredgers range from 100cbm/h to 1000cbm/h, the dredging depth from 1m to 25m and discharging distance from 500m to 3000m which can satisfy different work demands.
2. River sand pump dredger feature
1)The sand dredge is a kind of dismountable cutter suction dredger and non-propelled.
The hull consists of three pontoons.
2)The cutter is directly driven by one low speed hydraulic motor.
3)The two spuds are operated by means of a hydraulic ram.
4)Oil for the hydraulic system is supplied by vane pumps.
5)The dredge pump shall be driven by a diesel engine.
3. River sand pump dredger technical parameter
Basic CSD Parameter | ||||||
Model | KDTJ200 | KDTJ260 | KDTJ300 | KDTJ400 | KDTJ500 |
|
Dredger Body |
| |||||
Dimensions(L*W*H)m | 12.5*4.6*1.3 | 12.5*5.8*1.6 | 14.5*5.8*1.8 | 22*6.4*2 | 26*7.1*2.2 |
|
Engine room(m) | 7.5*2.25*1.4 | 8*2.8*1.6 | 9*3.2*1.8 | 12*3.4*2 | 14*3.5*2.2 |
|
Dredging data |
| |||||
Standard dredging depth | 6-7m | 6-8m | 8-10m | 12-14m | 12-14m |
|
Pump model | 8/6” | 10/8” | 12/10” | 14/12” | 450WN |
|
Water flow | 450m3/h | 800m3/h | 1100m3/h | 1900m3/h | 3200m3/h |
|
Suction pipeline diameter(mm/inch) | 260 | 300 | 350 | 400 | 500 |
|
Discharge pipeline diameter(mm/inch) | 200 | 260 | 300 | 400 | 500 |
|
Devices |
| |||||
Total power KW | 176kw | 258kw | 353kw | 640kw | 1200kw |
|
Generator set(kw) | 24 | 24 | 24 | 24 | 36 |
|
Cutter head |
| |||||
Diameter (mm) | 850-30 | 950-40 | 1100-50 | 1300-110 | 1700-140 |
|
Winch(hydraulic) |
| |||||
Ladder winches | JC-3000 | JC-4000 | JC-4000 | JC-6000 | JC-12000 |
|
The parameter is just for your reference,we can design as your requirement.

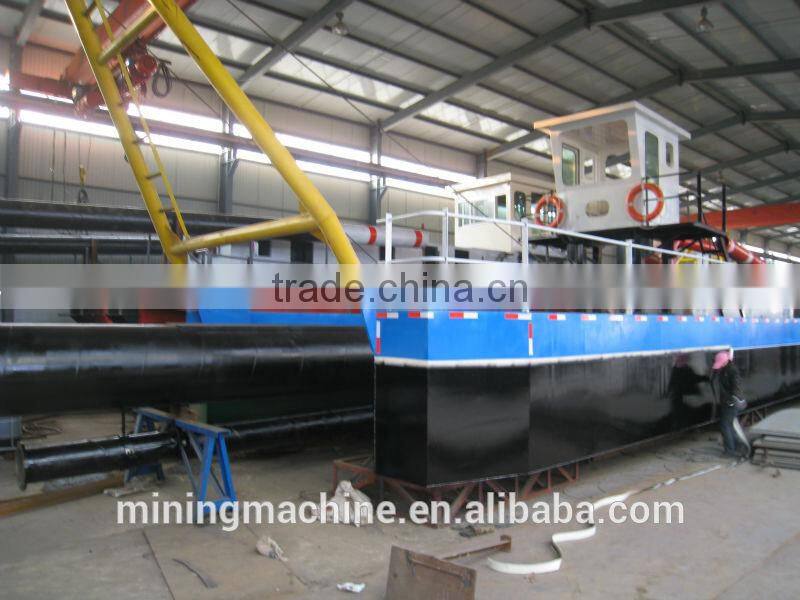

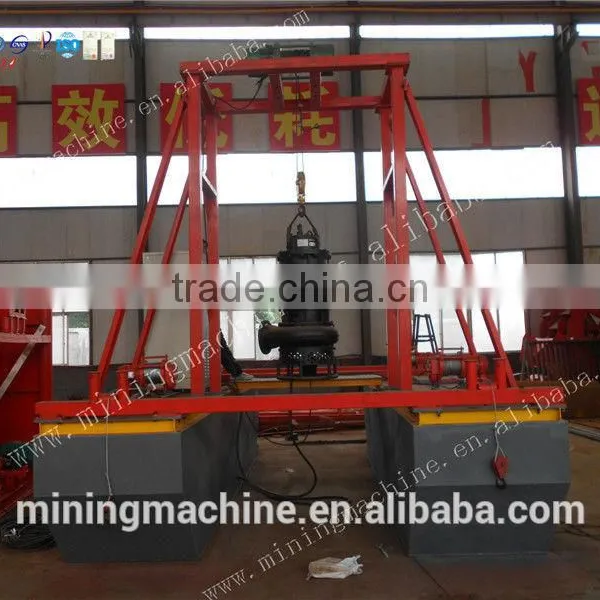

4. River sand pump dredger workshop showing
Our dredgers working in the work site in different places of the world ,such as Bangladesh,
Southeast Asia,Africa,South America and so on.
5. River sand pump dredger spare parts
We also supply the whole set of spare parts for dredgers.
cutter head

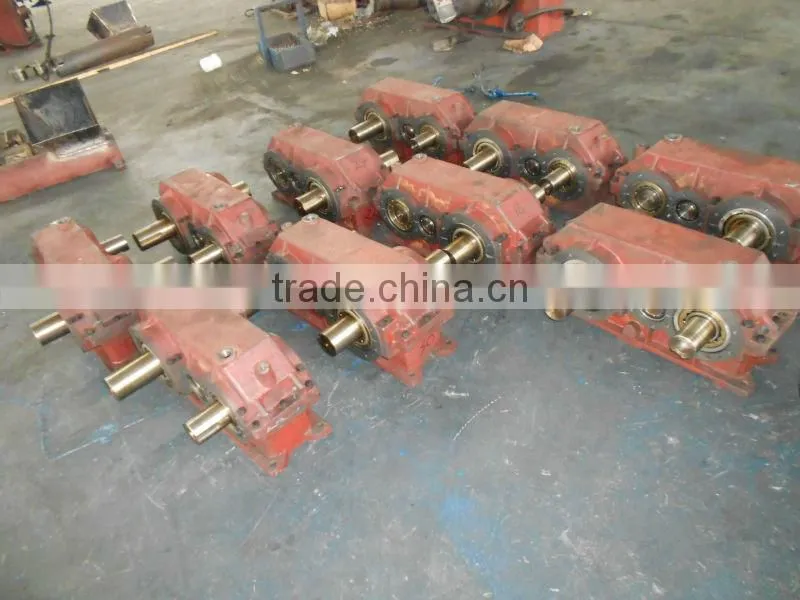

Gear Box

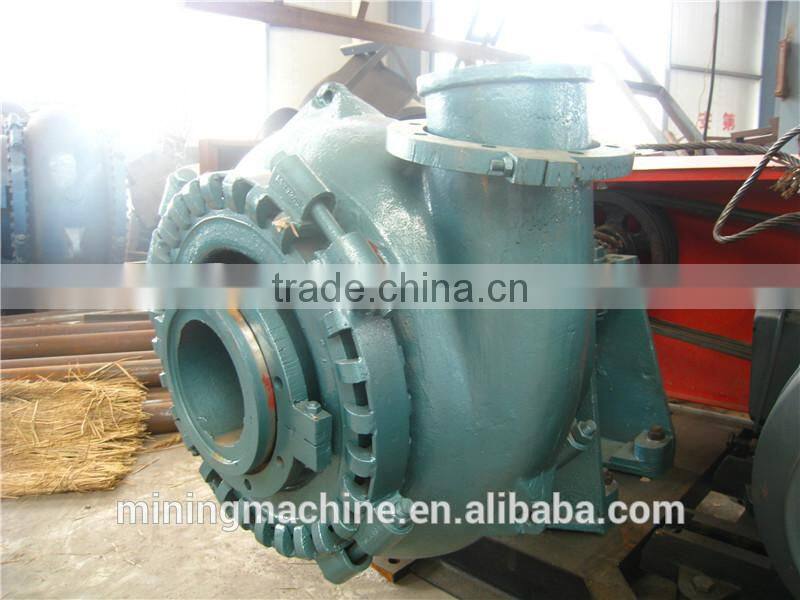

Pump
Engine
Winch

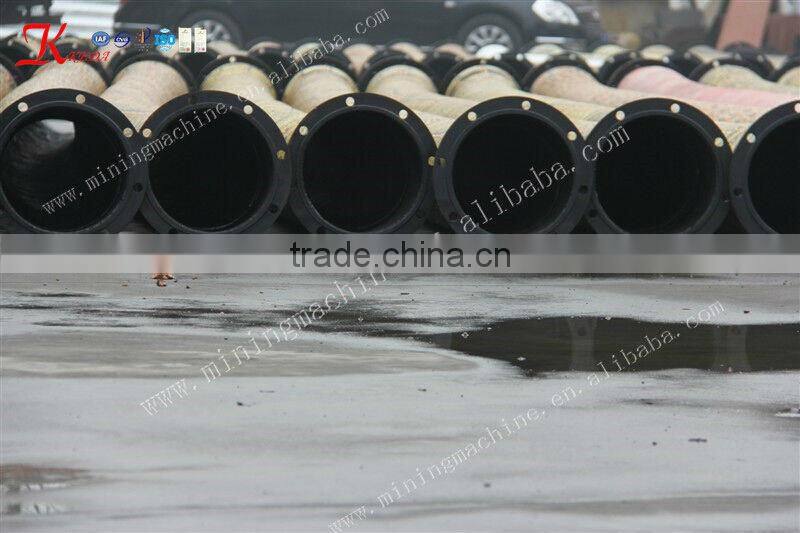

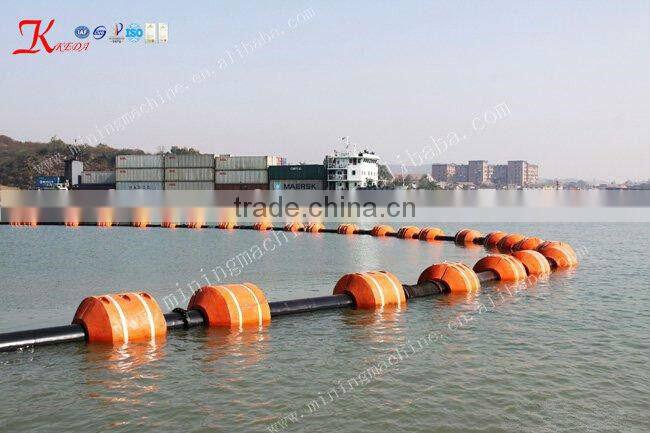

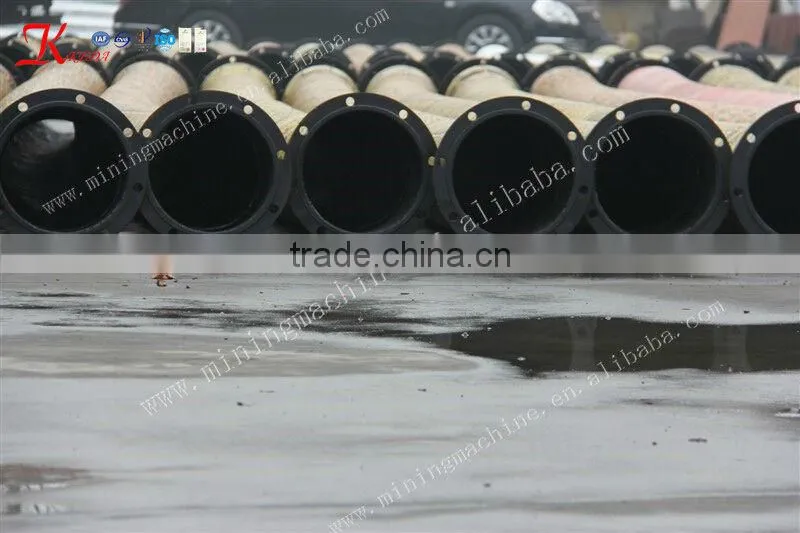

Rubber hose ,float and PE pipeline
6.Customer Visiting

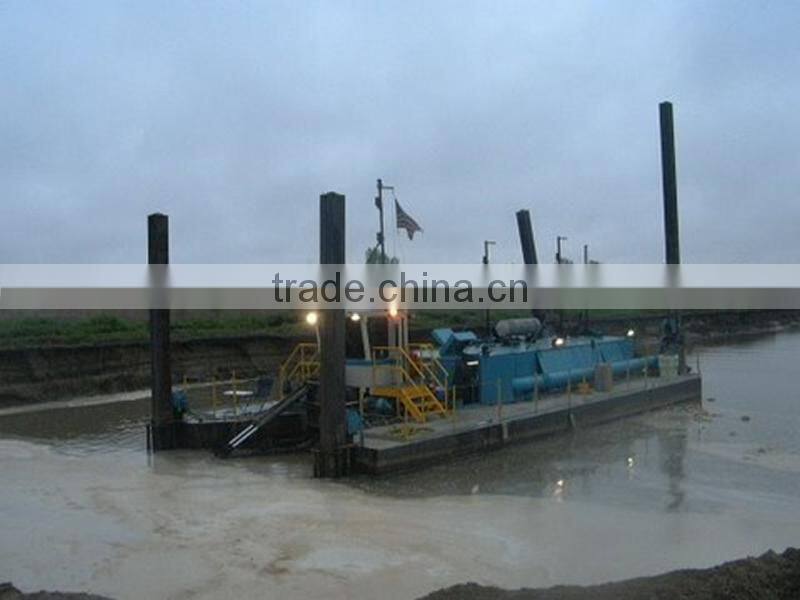

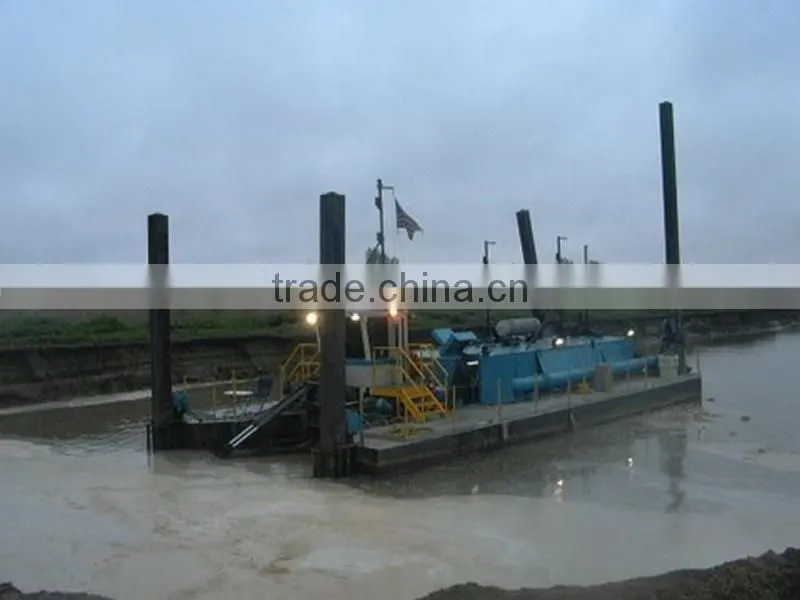

7. Working Site
8.FAQ
1.What's your main products ?
We focus alluvial gold mining equipment and cutter suction /chain bucket/jet suction dredger .Kindly contact us for catalog,please
2.Where has your plant export to ?
Africa: Sudan,Ghana,Mali,etc.....
East South Asia :Burma,Philippines,Indonesia,etc...
LatinAmerica:Surinam,Chile
Others:Papua New Guinea
3.What's your warranty ?
We have ISO cetification and provide 1year warranty for all of our products.All spare parts will be provided fast and cheap for ever.
4.Do you also design plant ?
Yes.Although we have some popular models.but the real good palnt is designed for clients,based on the condition of gold mine site
Click here for more design details
5.How can I contact you ?
Email:sales06 @miningmachine.net
Skype:kedamachinery06
Add:Qingzhou City,Shandong Province,China.
