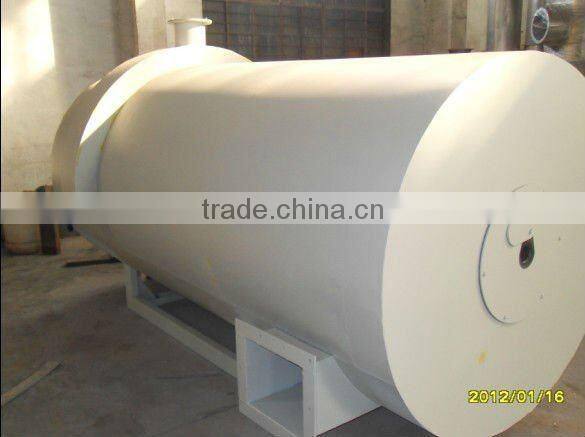

Hot Air Furnace/ Hot Air Generator
- Shanghai port and others
- T/T
You May Like
Product Details
| Type | Hot Air Furnace | Place of Origin | Jiangsu, China | |
| Brand Name | Jinling | Model Number | RLY |
Product Description
Specifications

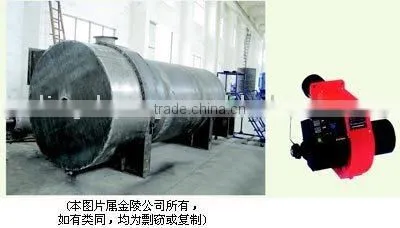

1. This hot air furnace can be fueled by oil or gas2. Euipped with Riello burner
3. with heat exchanger to get clean hot air
Applications
This hot air generator is widely used for providing stabe hot air flow in drying and heating process. The outlet temperature can be 80-350 degree C.
Principle
The fuel is burnt at firebox and the high temperature is produced. The quantity of heat will conduct to heated air through heat exchange device; the air will be discharged through fan after the temperature dropping below 250°C. The air need to be heated is sent to hot air furnace through distribution blower. After absorbed heat to rated value, the air will be sent from hot air vent. When the air temperature reaches the rated upper limit, burner will stop or turn to small fire automatically. When air temperature drops to the rated low limit, burner will burn or turn to big fire automatically. The rate of temperature increase could be adjusted by inlet air valve.
Technical Parameters
model | oil combustion | heat supply capacity×104kcal/h | overall dimensionmm | hot air holemm | weightkg |
RLY1 | 1.3-1.6 | 1 | 1000×1000×1600 | 200 | 750 |
RLY4 | 5-6.5 | 4 | 1700×1000×1600 | 140×160 | 1100 |
RLY10 | 13-16 | 10 | 2100×1300×1600 | 180×200 | 1970 |
RLY20 | 26-32 | 20 | 2800×14000×1700 | 200×250 | 2260 |
RLY30 | 39-48 | 30 | 3400×1500×1800 | 250×300 | 3160 |
RLY40 | 52-64 | 40 | 4020×1700×1900 | 300×400 | 4750 |
RLY60 | 78-96 | 60 | 4800×1900×2100 | 400×500 | 5650 |
RLY100 | 130-160 | 100 | 5400×2100×2300 | 550×650 | 6550 |
RLY200 | 260-320 | 200 | 6000×2500×2400 | 750×900 | 7980 |
RLY360 | 468-720 | 360 | 7200×2900×2600 | 900×1200 | 9860 |
