LPG High Speed Centrifugal Drying Processor

Specifications

Description

     LPG High Speed Centrifugal Drying Processor is the widest used in the liquid forming process and in drying industry. The drying technology is most suitable for powder, particle products from materials, such as,solution, emulsion, SC and pumpable paste states material. For this reason, when the particle size and distribution of the final product, their residual water contents, the stacking density and particle shape must meet the precision standard, spray drying process is one of the most desired processes.

Principle

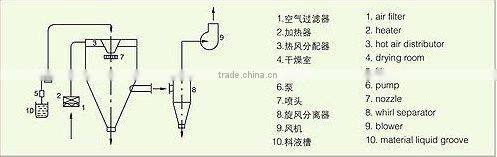

    After filtering and heating, the air enters into air distributor on top of the Drying Processor. The hot air enters into the drying room in spiral form and uniformly. By passing through high-speed centrifugal atomizer on top of tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Through the very short time of contacting with heating air, the material can be dried into final products. The final products will be discharged continuously from the bottom of drying tower and from cyclone separator. The waste gas will be discharged from exhaust fan.

Features

    At a high speed of drying, after spraying of the material liquid, the surface area will be increased greatly. In the hot air flow, 95%-98% of water can be evaporated at a moment. The time of completing the drying needs only several seconds.

    This is especially suitable for drying the heat sensitive materials. Its final products own good uniformity, mobility, dissolving capacity. And the final products are high in their purity and good in their quality.

The production procedures are simple and the operation and control are easy. The liquid with the moisture contents 40-60% (for special materials, the contents may reach 90%) can be dried into the powder of particle products for one time. After drying, there is no need for crushing and sieving, so as to reduce operation procedures in the production and to enhance product purity. The product particle diameters, looseness and water contents can be adjusted through changing the operation condition in a certain scope. It is very convenient to carry out control and management.
