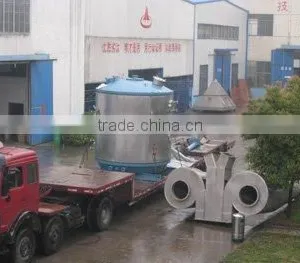

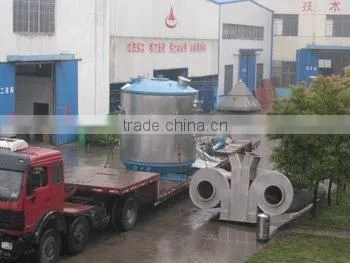

PGZ Series Vacuum Dryer
- Shanghai port and others
- T/T
You May Like
Product Details
| Type | Other, Vacuum Drying Equipment, 1200/4-3000/18 | Place of Origin | Jiangsu, China | |
| Brand Name | Changjin | Model Number | PGZ |
Product Description
Specifications
1.PGZ vacuum dryer2.Low energy consumption, high efficiency, safe and convenient
3.Material is not easy to be polluted
4GMP
Description
Feeding material into vacuum dryer, because boiling point of material will fall under the state of vacuum and along with the rake turning over continuously, the surface of material will be changed continuously. Therefore it speeds up drying rate greatly. The wet air will be drew out by vacuum pump. This equipment is mainly used for drying heat sensitive material, toxic material and the material that easy to oxidize or needs to recover solvent.
Features
Under the state of vacuum, the machine can keep material to feed and discharge continuously.
Closed operation, PGZ Series Vacuum Plate Drier is particularly suitable for drying material that has toxicity or easy to oxidize.
It is very convenient to recover organic solvent in wet gas.
Low energy consumption, high efficiency, safe and convenient, material is not easy to be polluted.
Technical parameters
type | Diameter mm | High mm | Area of dry m2 | Power kw | type | Diameter mm | High mm | Area of dry m2 | Power kw |
1200/4 | 1850 | 2608 | 3.3 | 1.1 | 2200/18 | 2900 | 5782 | 55.4 | 5.5 |
1200/6 | 3028 | 4.9 | 2200/20 | 6202 | 61.6 | ||||
1200/8 | 3448 | 6.6 | 1.5 | 2200/22 | 6622 | 67.7 | 7.5 | ||
1200/10 | 3868 | 8.2 | 2200/24 | 7042 | 73.9 | ||||
1200/12 | 4288 | 9.9 | 2200/26 | 7462 | 80.0 | ||||
2200/6 | 2900 | 3262 | 18.5 | 3.0 | 3000/8 | 3800 | 4050 | 48 | 11 |
2200/8 | 3682 | 24.6 | 3000/10 | 4650 | 60 | ||||
2200/10 | 4102 | 30.8 | 3000/12 | 5250 | 72 | ||||
2200/12 | 4522 | 36.9 | 3000/14 | 5850 | 84 | ||||
2200/14 | 4942 | 43.1 | 3000/16 | 6450 | 96 | ||||
2200/16 | 5362 | 49.3 | 3000/18 | 7050 | 108 |
|
