DW Series Coconut Dryer

Jiangsu Jinling Drying Technology Co., Ltd.
DW Series Coconut Dryer thumbnail-1
DW Series Coconut Dryer photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Belt Drier
Place of Origin:
Jiangsu, China
Brand Name:
Changjin
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port and others
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Belt Drier
Place of Origin Jiangsu, China
Brand Name Changjin
Model Number DW

Specifications

DW coconut dryer is widely used in a lot of industry.It is our mature technology.

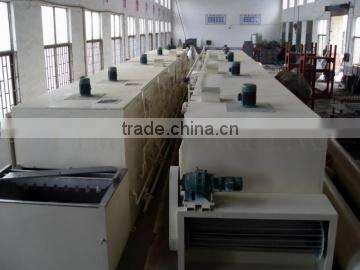

DW Series coconut dryer

Principle

    The material is uniformly put on the mesh-belt by the material feeder. The mesh-belt uses generally 12-60 mesh stainless steel wire net and it is drawn and moved inside the drier by a transmission device. The coconut dryer is composed of several units. For each unit, the hot air is circulated separately. Some exhausted gas is discharged with a special moisture elimination fan. The waste gas is controlled through an adjustment valve. The hot air passes through mesh-belt covered with the material from top to bottom or from bottom to top and this will complete the heat and mass transfer process. This process will bring the water in material away. The mesh-belt moves slowly, running speed can be freely adjusted according to the material humidity. The final products after drying will fall into the material collector continuously. The top and bottom circulation units can be freely equipped according to customer’s requirement. The unit number can be selected according to the demand.



Applications

     De-watering vegetable, particle feed, gourmet powder, shredded coconut stuffing, organic color, compound rubber, acryl, medicine product, medicine material, small wooden product, plastic product, aging and solidification for the electronic component and device.



Technical Parameters


Model
DW-1.2-8
DW-1.2-10
DW-1.6-8
DW-1.6-10
DW-2-8
DW-2-10
Quantity of unit
4
5
4
5
4
5
Width of belt(m)
1.2
1.6
2
Length of dry section(m)
8
10
8
10
8
10
Thickness of raw material spreading(mm)
10-80
Operation temperature(°C)
50~120
Steam pressure(Mpa)
0.2~0.5
Steam consumption(kg/h)
120-130
150-375
150-375
170-470
180-500
225-600
Area of heat exchange(m2)
272
340
352
440
448
560
Dry time(h)
0.2-1.2
0.25-1.5
0.2-1.2
0.25-1.5
0.2-1.2
0.25-1.5
Dry capacity(kg water/h)
60-160
80-220
75-220
95-250
100-260
120-300
Quantity of fan
5
6
5
6
5
6
Total equipped power inside(kw)
9.9
12.1
9.9
12.1
18.2
22.2
Total equipped power(kw)
11.4
13.6
11.4
13.6
19.7
23.7
Overall dimensions
L(m)
9.77
11.77
9.77
11.77
9.77
11.77
W(m)
1.5
1.5
2.24
2.24
2.66
2.66
H(m)
2.83
2.83
2.83
2.83
3.50
3.50
Weight(kg)
4800
5780
5400
6550
6350
7800



NOTE:
1. The vaporized amount of water should be assured in accordance with the dry temperature, thickness of raw material spreading and stay time.
2. The dimension is just for reference.
