Good Quality Wire Drawing Machine

Good Quality Wire Drawing Machine thumbnail-1
Good Quality Wire Drawing Machine thumbnail-2
Good Quality Wire Drawing Machine thumbnail-3
Good Quality Wire Drawing Machine thumbnail-4
Good Quality Wire Drawing Machine thumbnail-5
Good Quality Wire Drawing Machine thumbnail-6
Good Quality Wire Drawing Machine photo-1
Good Quality Wire Drawing Machine photo-2
Good Quality Wire Drawing Machine photo-3
Good Quality Wire Drawing Machine photo-4
Good Quality Wire Drawing Machine photo-5
Good Quality Wire Drawing Machine photo-6
US$ 15,000 - 75,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
wanyi
Model Number:
STRAIGHT TYPE
Contact Supplier Request Quote Chat Now
Zhangjiagang City Wanyi Machine Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI AND AS U NEED
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name wanyi
Model Number STRAIGHT TYPE
Usage Drawing

LZ6/560 straight drawing unit performance parameters

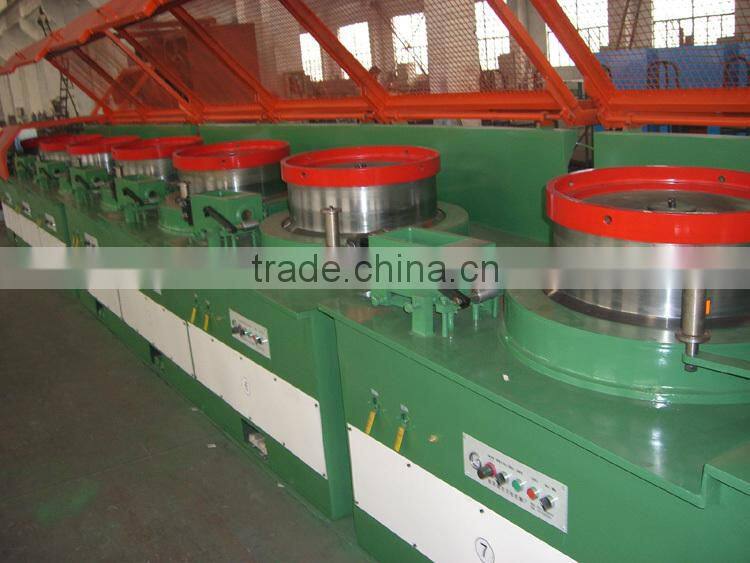

Product name: LZ6/560 straight drawing machine

2 equipment:

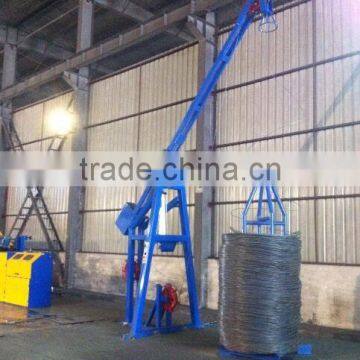

(1) up-draft pay-off stand

(2) LZ6/560 straight line drawing machines

(3) SG740 h-wheel take-up machine

(4) man-machine interface screen

(5) set of control cabinets



3 work scope: (1) inlet diameter: 5.5 mm

(2) inlet line intensity:  700Mpa or less

(3) material: stainless steel wire, etc

(4) outlet 2.8 mm in diameter. Qualifying



4 drawing speed: (1) the highest speed: 6 meters per second (2) commonly 5 meters/SEC speed:



5 (1) water vapor pressure > 0.2 Mpa

(2) pressure > 0.5 Mpa



6 motor specification: (1) the drawing machine 30KW: AC general motors

(2) take-up machine: 15KW ordinary ac motor .





Specification







Items Unit LZ9-12/1200 LZ10/800 LZ9/700 LZ10/560 LZ10/400
Reel diameter mm 900 800 700 560 400
Draw passage time 9-12 10 9 10 10
Incoming dia mm Φ14-8 Φ10-8 Φ8-6.5 Φ6.5-5.5 Φ14-8
Outgoing dia mm Φ5-3 Φ4-3 Φ3-2.5 Φ2-1.8 Φ1-0.8
Wire darwing line m/min 300 360 480 720 840
Incoming strength Mpa ≤1300 ≤1300 ≤1300 ≤1300 ≤1300
Total compressibility % 87.24-85.94 84-85.94 85.94-85.21 90.53-89.29 87.24-84
Average compressibility % 20.48-19.58 18.42-19.58 19.58-19.13 21.00-20.02 18.61-16.74
Single motor power Kw 110-90 90-55 75-55 37-22 15-7.5







Note: We can design the machine according to customers' requirement..





  good quality wire drawing machinegood quality wire drawing machine
