LZ6/560 straight drawing unit performance parameters

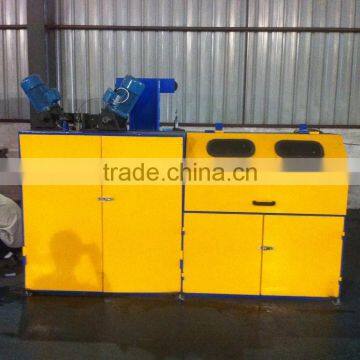

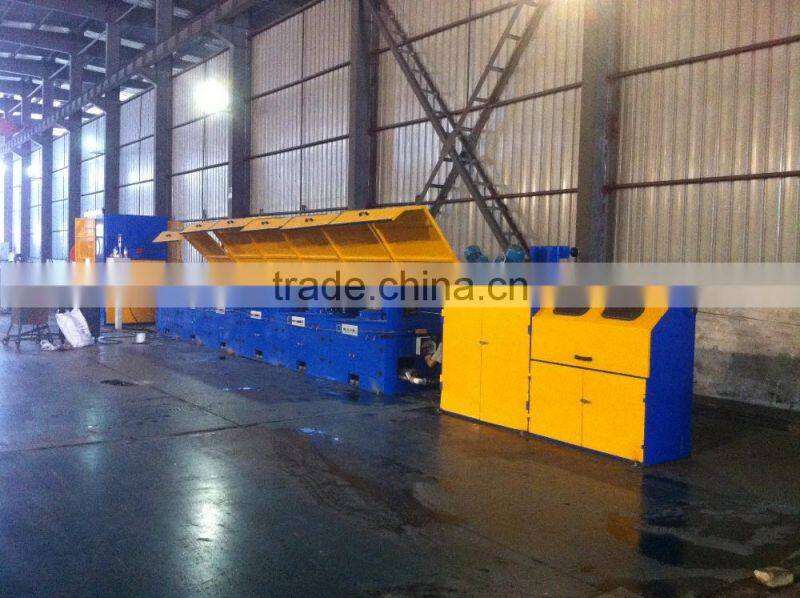

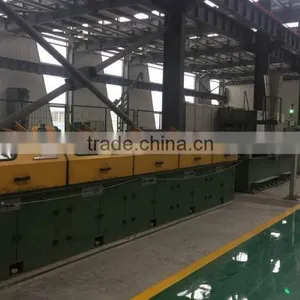

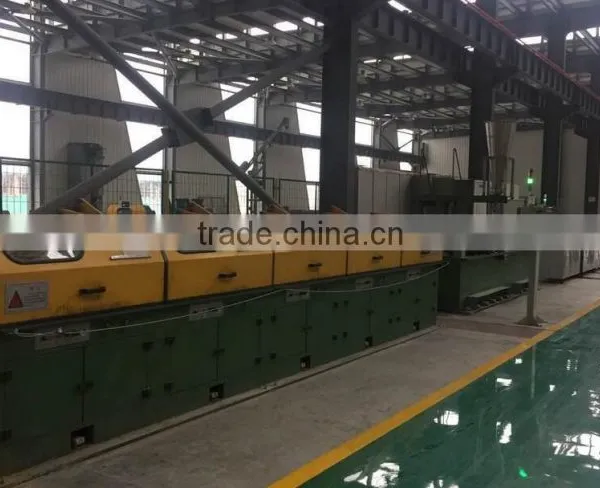

Product name: LZ6/560 straight drawing machine
2 equipment:

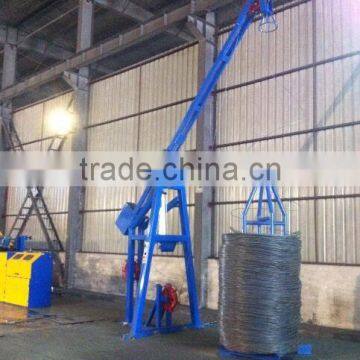

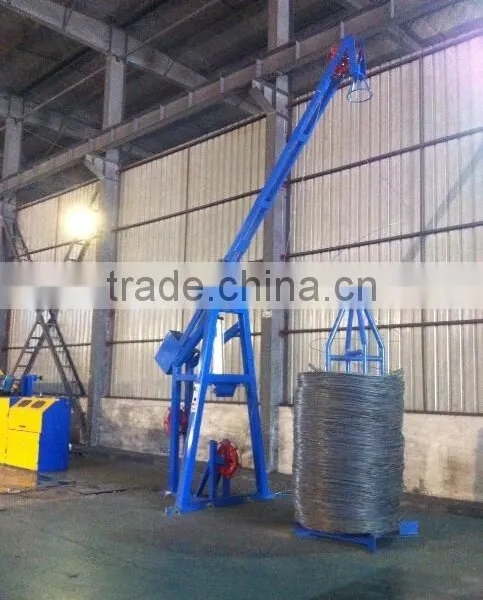

(1) up-draft pay-off stand

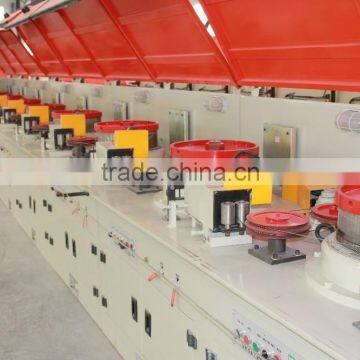

(2) LZ6/560 straight line drawing machines
(3) SG740 h-wheel take-up machine
(4) man-machine interface screen
(5) set of control cabinets
3 work scope: (1) inlet diameter: 5.5 mm
(2) inlet line intensity: 700Mpa
(3) material: stainless steel wire, co2 wire ,carbon wire flux-cored wire etc
(4) outlet 2.8 mm in diameter. Qualifying
4 drawing speed: (1) the highest speed: 6 meters per second (2) commonly 5 meters/SEC speed:
5 (1) water vapor pressure > 0.2 Mpa
(2) pressure > 0.5 Mpa
6 motor specification: (1) the drawing machine 30KW: AC general motors
(2) take-up machine: 15KW ordinary ac motor
