Home > Manufacturing & Processing Machinery > Machine Tools > Special Machine Tools > Professional Wire Drawing Machine
US$ 20,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or as u need
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
CNC or Not
Normal
Place of Origin
Jiangsu, China
Brand Name
wanyi
Model Number
LZ7/400
Voltage
380/220V
Power(W)
22KW each
Dimension(L*W*H)
5000X1560X1600
Weight
5500KG
Certification
CE or SGS your needs
Warranty
ONE YEAR FREELY
After-sales Service Provided
Overseas service center available

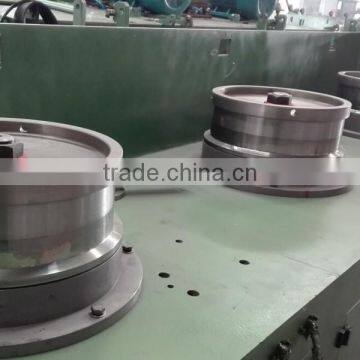

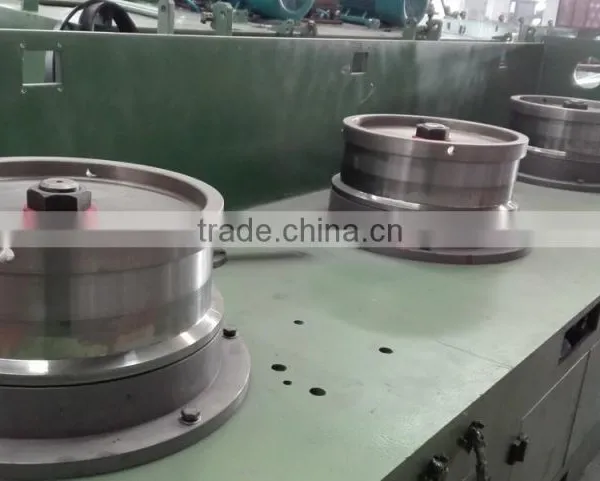

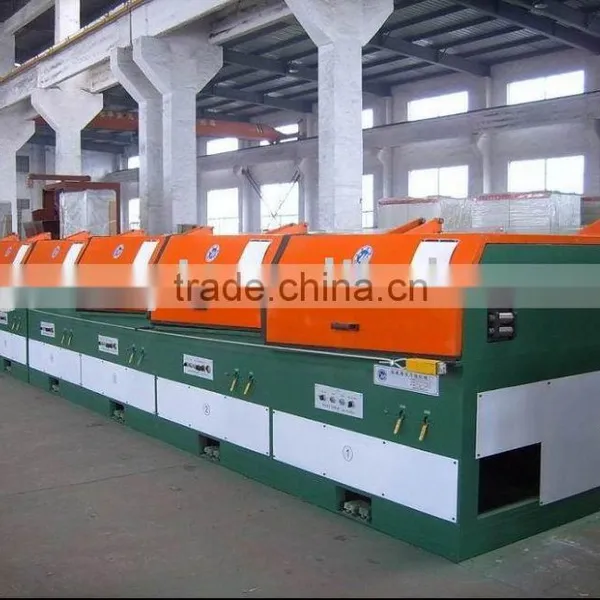

low carbon steel wire drawing machine
1. The material of the inlet wire:low carbon steel
2. The max strength of the inlet wire: 600Mpa
3. Max diameter of the inlet wire:Ø3.5mm
4. The outlet wire diameter: Ø0.9mm
5. Max speed:900m/min
6. The amount of water-use and water pressure:3m³/h pressure:≥0.3Mpa
7. The amount of air-use and air- pressure :0.6 m³/h pressure: :≥0.4Mpa
8. Motors:
a) The Motor of the drawing machine: 11KW adjustable frequency motor.
