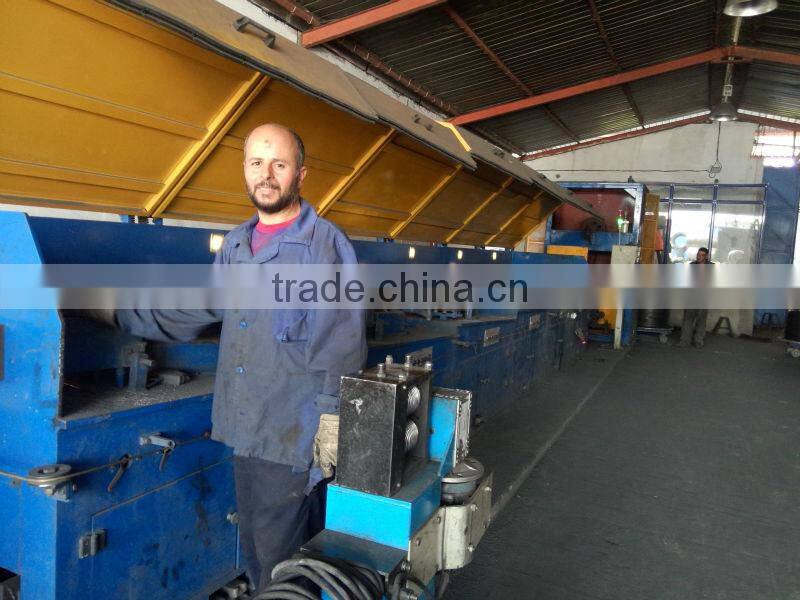

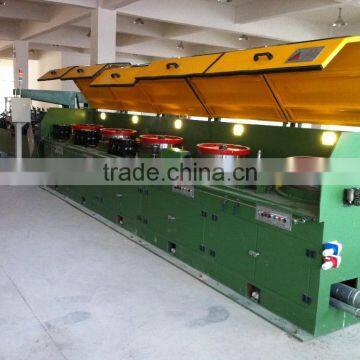

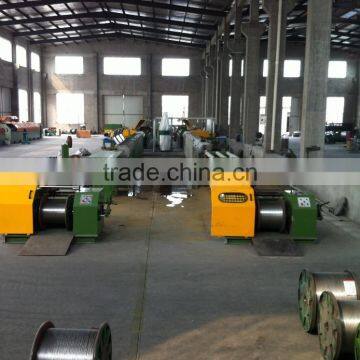

Help CenterCarbon Steel Wire/iron Stainless Steel Wire Drawing Machine With Coiler
Related Products
-
SAE1008/SAE1006 Rod Wire Drawing MachineUS$ 20,000 - 70,000MOQ: 1 Set -
Screw/nail Steel Wire Drawing MachineUS$ 30,000 - 65,000MOQ: 1 Set
-
Black Annealing Wire Production LineUS$ 20,000 - 80,000MOQ: 1 Set
-
Construction Binding Wire Drawing MachineUS$ 30,000 - 55,000MOQ: 1 Set
-
Galvanized Wire Drawing MachineUS$ 50,000 - 60,000MOQ: 1 Set
drawing wire machine
1biggest inlet diameter: 5.5 mm
2minimum inlet line 1.8 mm
3 max compression ratio: 89.2%
4the highest drawing speed 16m/s, normal speed: 12m/s
5water and water pressure: 8 m³/h water pressure 0.25 Mpa or more
6air and pneumatic: 2.0 m³/h Air pressure 0.6 Mpa or more
7motor :(1) the main motor: the first block 30KW, and the rest 22KW, ac conversion motor
(2)Take-up machine :22KW ac frequency conversion motor (1,250 h-wheel),
(9) block: straight line type: diameter is 560mm
8 block materials: stainless steel,ZG45 - 55,working surface,tungsten carbide spraying alloy powder, hardness more than HRC60 finish.32 Ra or less..
9Using life:two years or more,since wear chamfer, free replacement.
10 block cooling way: inner by slit type water-cooling, The outer cooled by ring air
mould box adopts welded parts, surface of guide wheel or roller spraying tungsten carbide rod, using life is one year,since wear chamfer, free replacement.
(2) mode box body are two parties: lubrication powder body and the water body of indirect cooling
11mode box can be adjusted universally to ensure the angle of wire drawing
