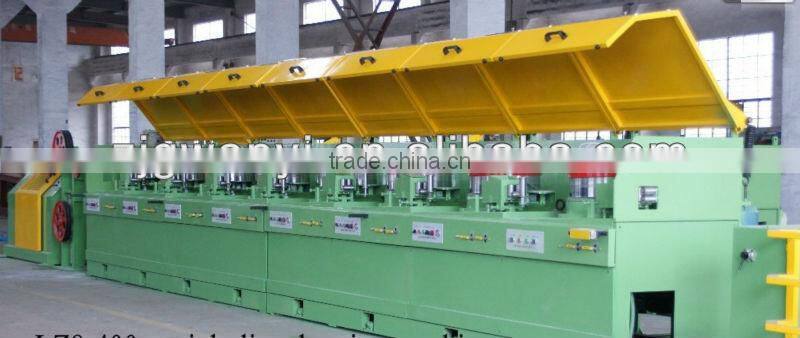

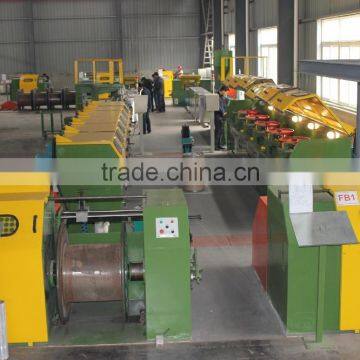

Help CenterCold Rolled Steel Wire Drawing Machine
Related Products
-
Cold Heading Steel Wire Drawing MachineUS$ 30,000 - 65,000MOQ: 1 Set -
Straight Line Galvanizing Wire Drawing MachineUS$ 50,000 - 60,000MOQ: 1 Set
-
Die Repair Machine for Wire Drawing MachineUS$ 2,800 - 8,000MOQ: 1 Set
-
Straight Line Low Carbon Steel Wire Drawing MachineUS$ 20,000 - 70,000MOQ: 1 Set
-
Low Carbon Customized Straight Line Wire Drawing MachineUS$ 20,000 - 70,000MOQ: 1 Set
Features:
Applicable for continuous drawing(on-line drawing)
Material rod: High/medium/low carbon steel wire, alloy steel wire, stainless steel wire
PLC control, automatical
(1) The equipment contains the functions of human-machine dialogue, over-temperature protection for motor, alarm for abnormal water pressure, fault display.
(2) It’s kind of high-efficient machine with easy operation, high degree of automation.
(3) Between the drawing process without intermediate pulley and the guide wheel, it does not generate bending and torsion, and convenient threading
(4) Straight line drawing machine suitable for drawing large diameter, high strength and special shaped steel wire
(5) As the use of the frequency technology, changes in the larger context of patts of the compression ratio to meet the wide range of technology and high speed drawing.
(6) There is no relative sliding between wire and capstan. The quality of finished wire is much better.
Main Technical Parameters
| Items | Unit | LZ9-12/1200 | LZ10/800 | LZ9/700 | LZ10/560 | LZ10/400 |
| Reel diameter | mm | 900 | 800 | 700 | 560 | 400 |
| Draw passage | time | 9-12 | 10 | 9 | 10 | 10 |
| Incoming dia | mm | Φ14-8 | Φ10-8 | Φ8-6.5 | Φ6.5-5.5 | Φ14-8 |
| Outgoing dia | mm | Φ5-3 | Φ4-3 | Φ3-2.5 | Φ2-1.8 | Φ1-0.8 |
| Wire darwing line | m/min | 300 | 360 | 480 | 720 | 840 |
| Incoming strength | Mpa | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| Total compressibility | % | 87.24-85.94 | 84-85.94 | 85.94-85.21 | 90.53-89.29 | 87.24-84 |
| Average compressibility | % | 20.48-19.58 | 18.42-19.58 | 19.58-19.13 | 21.00-20.02 | 18.61-16.74 |
| Single motor power | Kw | 110-90 | 90-55 | 75-55 | 37-22 | 15-7.5 |
