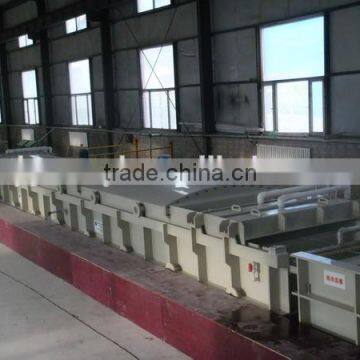

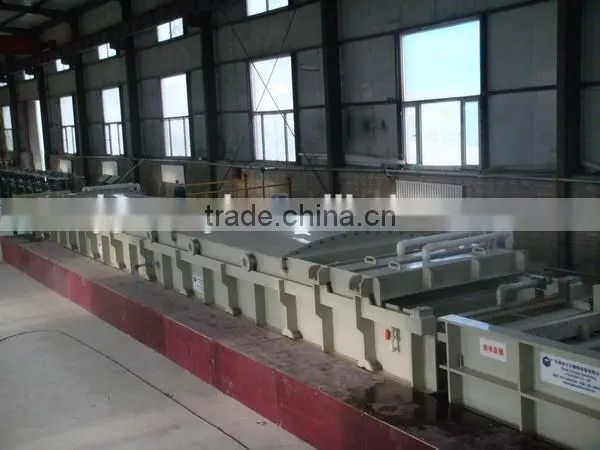

Help CenterGalvanizing Machine
Related Products
Quick Details
After-sales Service Provided: |
Engineers available to service machinery overseas |
Diameter of wire: |
1.8-4.0mm |
Quantity of wire: |
25 max |
Material of wire: |
Low carbon |
Thickness of coating: |
30~180g/m2 |
Strength of steel wire: |
400-500N/mm2 |
Power source: |
Electric/gas |
DV value: |
50 |
Type of pay off: |
Handstand |
Type of take up: |
your need |
Max working speed: |
25m/min (for 2.0mm) |
|
|
Packaging & Delivery
Packaging Detail: |
wooden case or pallet |
Delivery Detail: |
within 120 days after received advance payment |
2. Main technical parameters
Diameter of wire |
Φ1.8---4.0mm |
Quantity of wire |
25 max |
Material of wire |
Low carbon wire |
Thickness of coating |
30~180g/m2 |
Strength of steel wire |
400-500N/mm2 |
Power source of the heat treatment furnace |
Electric |
DV value of the production |
50 |
Type of pay off |
Handstand or your needs |
Type of take up |
Handstand plum |
Max working speed |
25m/min(for Φ2.0mm) |
Production capacity |
599 kg/h(φ2.7mm) |
Month production capacity |
359 tons/month(φ2.7mm,600hours) |
Distance between steel wire |
Galvanizing: 40mm; Surface treatment: 40mm |
Working height of the steel wire |
950mm or so |
