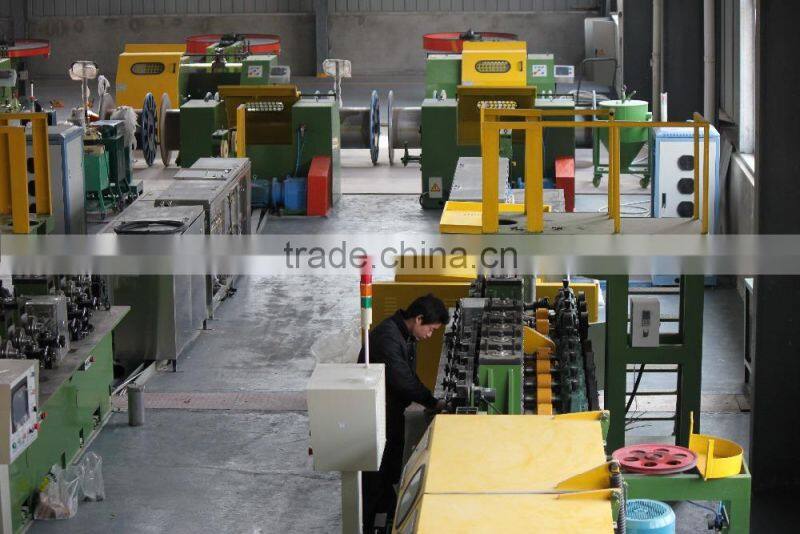

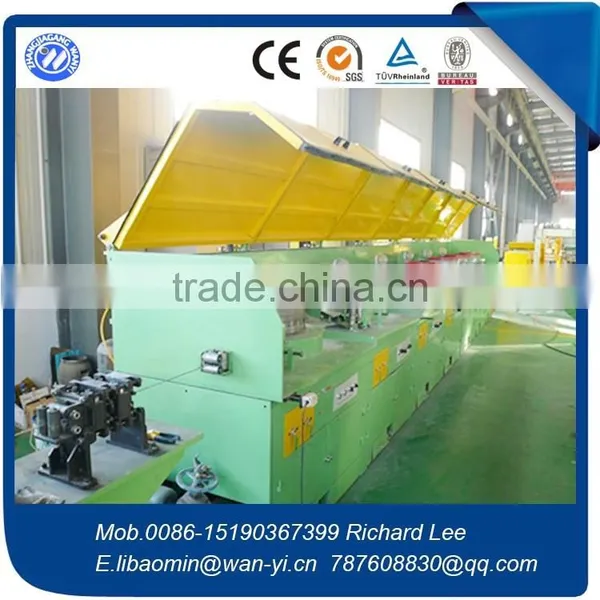

F.C.W Welding Wire Production Machine/with Formula
US$ 45,000 - 45,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Inlet Diameter:
1.5-10mm
Outlet Diameter:
0.8-5.5mm
Payment & Shipping
Payment Methods:
Port of Shipment:
China any port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Alloy Flux Cored Welding Wire Drawing Machine ManufacturerUS$ 20,000 - 65,000MOQ: 1 Set -
Stainless Steel Flux Cored Welding Wire Forming MachineUS$ 30,000 - 80,000MOQ: 1 Set
-
Flux-cored Welding Wire Forming Machine/production Machine LineUS$ 30,000 - 80,000MOQ: 1 Set
-
Flux Cored Straight Line Wire Drawing MachineUS$ 20,000 - 65,000MOQ: 1 Set
-
Flux Cored Wire Drawing MachineUS$ 20,000 - 65,000MOQ: 1 Set
Condition
New
Inlet Diameter
1.5-10mm
Outlet Diameter
0.8-5.5mm
Place of Origin
Jiangsu, China
Brand Name
Wanyi
Model Number
LZ300/350/400/450/500/560/600/700/800/900/1200
Voltage
380V/220V
Power(W)
23-47kw each block
Dimension(L*W*H)
13000*1200*1500
Weight
1.5~40Ton
Certification
CE/CB//CQC/ISO9001
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas
Main technical parameter:
specification |
LZ200,LZ 350,LZ 400,LZ450,LZ500,LZ560,LZ600,LZ700 |
Capstan diameter |
200, 350, 400, 450, 500, 560, 600 , 700 |
Drafts |
2-12 |
Max. inlet diameter(mm) |
10 |
Min. outlet diameter(mm) |
0.2 |
speed |
According to customers’ requirements |
power |
7.5-90 KW |
capstan |
Material is cast steel, coated with tungsten carbide. Surface hardness reaches 60-62HRC. Abrasive resistance is very good. |
Drive system |
Adopt 1st or 2nd grade strong narrow V belt; 1st grade strong narrow V belt+ 1st grade hard tooth surface wheel gear with little noise; 1st grade strong narrow V belt+ 1st grade hard tooth surface wheel gear |
Dies case |
Water cooling, reasonable installation, can be adjusted up and down, equipped with special device press the button. |
