Mild and Low-alloy Flux Cored Welding Wire Drawing Machine/production Machine Line
US$ 20,000 - 25,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or as u need
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
F.C.W Welding Wire Production Machine/with FormulaUS$ 45,000 - 45,000MOQ: 1 Set -
Low Alloy Flux Cored Welding Wire Drawing Machine ManufacturerUS$ 20,000 - 65,000MOQ: 1 Set
-
Stainless Steel Flux Cored Welding Wire Forming MachineUS$ 30,000 - 80,000MOQ: 1 Set
-
Flux-cored Welding Wire Forming Machine/production Machine LineUS$ 30,000 - 80,000MOQ: 1 Set
-
Flux Cored Straight Line Wire Drawing MachineUS$ 20,000 - 65,000MOQ: 1 Set
Condition
New
CNC or Not
Normal
Place of Origin
Jiangsu, China
Brand Name
wanyi
Model Number
LZ7/400
Voltage
220/380v
Power(W)
84KW
Dimension(L*W*H)
3.0X1.4X1.4m
Weight
9500kg
Certification
CE or SGS
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas

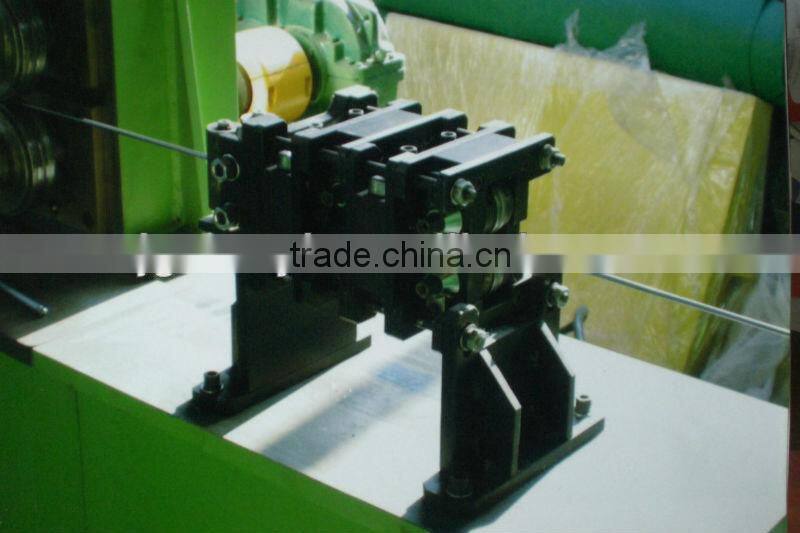

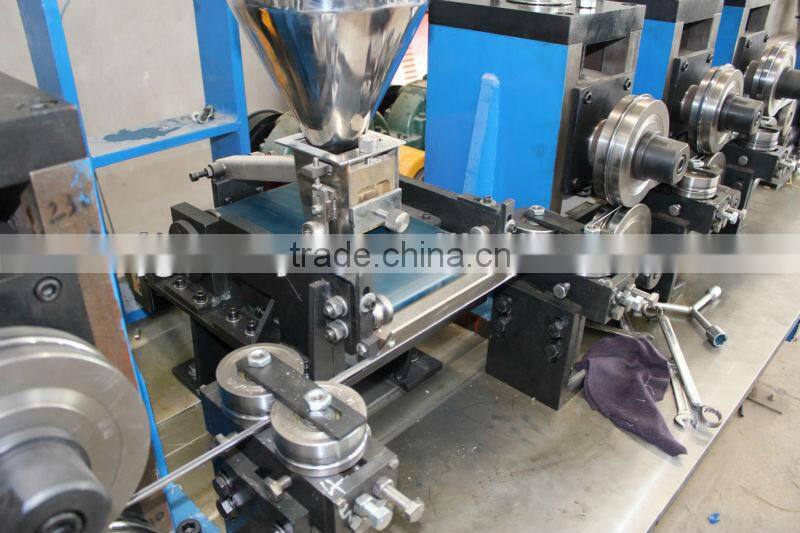

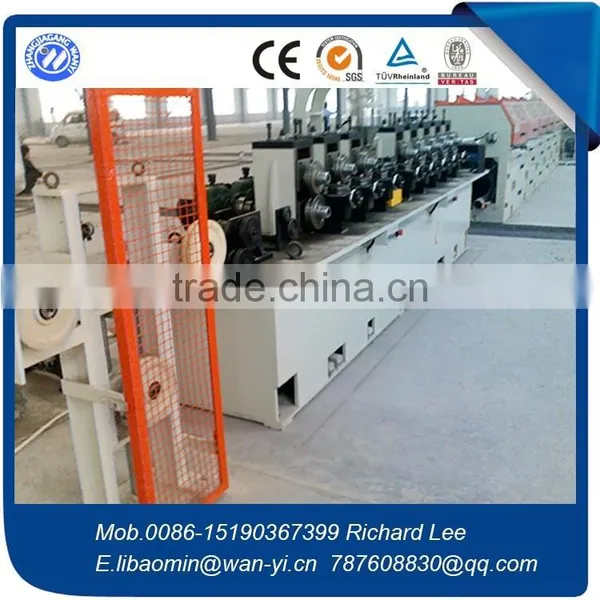

Flux-cored wire drawing machine line
1. The material of the inlet wire:Flux-cored wire
2. The max strength of the inlet wire: 600Mpa
3. Max diameter of the inlet wire:Ø3.5mm
4. The outlet wire diameter: Ø0.9mm
5. Max speed:900m/min
6. The amount of water-use and water pressure:3m³/h pressure:≥0.3Mpa
7. The amount of air-use and air- pressure :0.6 m³/h pressure: :≥0.4Mpa
8. The Motor of the drawing machine: 11KW adjustable frequency motor..
