Home > Manufacturing & Processing Machinery > Machine Tools > Special Machine Tools > Copper Wire Drawing Machine
US$ 20,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or as u need
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Copper Wire Drawing MachineUS$ 20,000 - 80,000MOQ: 1 Set -
ER70S Welding Wire Drawing MachineUS$ 20,000 - 120,000MOQ: 1 Set
-
Non-ferrous Metal Wire Drawing MachineUS$ 20,000 - 50,000MOQ: 1 Set
-
al Wire Drawing MachineUS$ 5,000 - 9,500MOQ: 1 Set
-
ER70S Welding Wire Production Machine/chemical Copper Coating MachineUS$ 20,000 - 120,000MOQ: 1 Set
Condition
New
CNC or Not
Normal
Place of Origin
Jiangsu, China
Brand Name
wanyi
Model Number
LZ
Voltage
380V
Power(W)
9X22KW
Dimension(L*W*H)
8X1.35X1.45M
Weight
7500kg
Certification
CE or other third parts
Warranty
one year freely
After-sales Service Provided
Engineers available to service machinery overseas

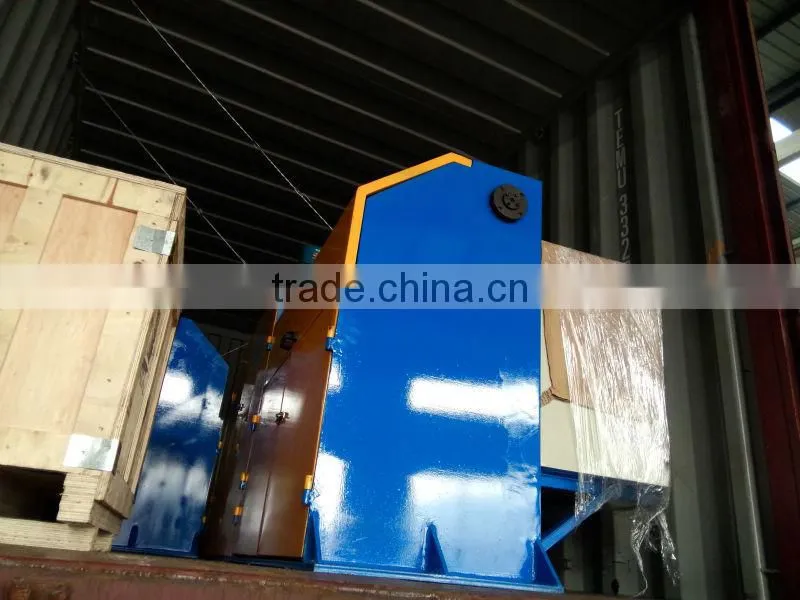

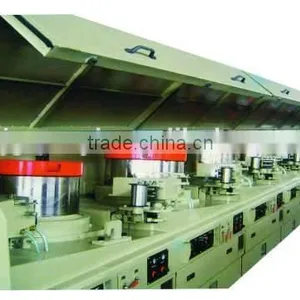

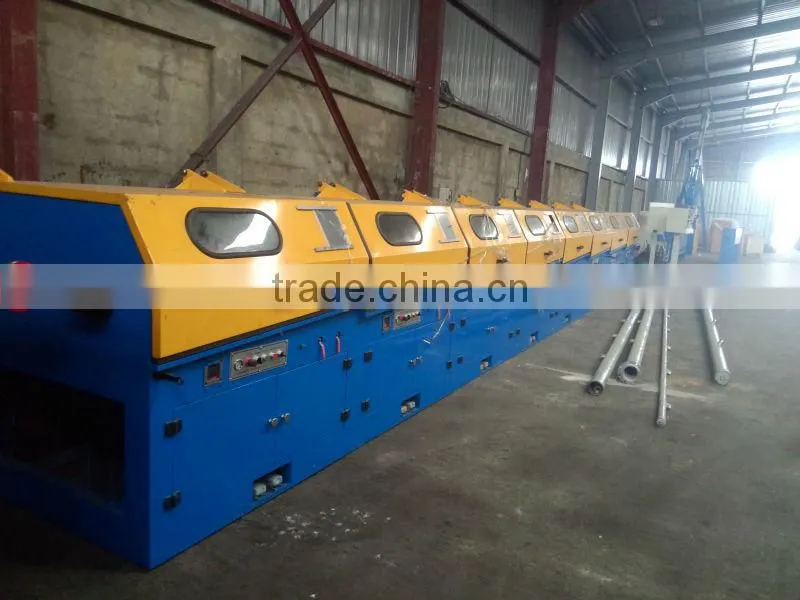

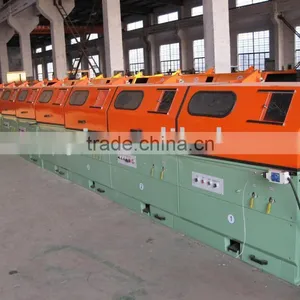

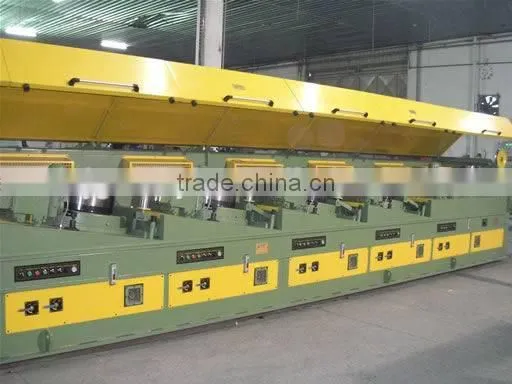

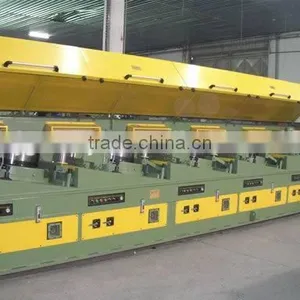

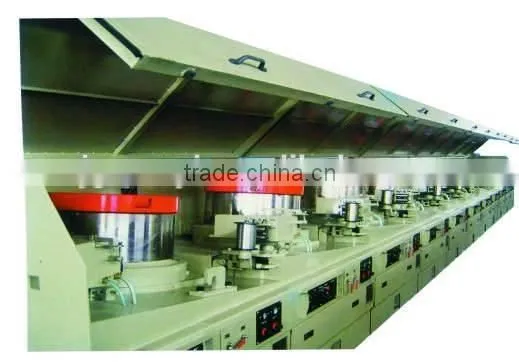

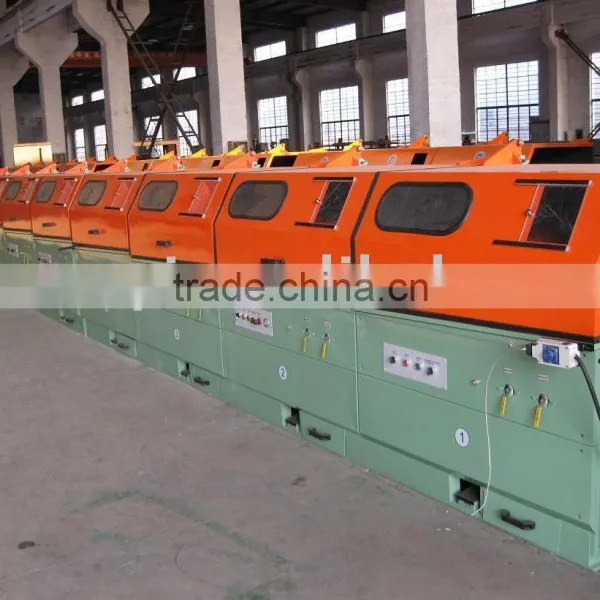

copper wire drawing machine
mainly technical parameters :
- input(max) : Φ8.0 mm
- output : Φ1.3-Φ3.0 mm
- drawing drum wheel diameter : front 5*500mm; behind 5*400mm
- fixed speed wheel diameter : 400 mm
- drawing module : 13
- mechanical elongation : 18-23%
- max drawing speed : 800 m/min
- drawing main motor power : 200KW(AC)
- fixed speed wheel motor power : 22 KW (AC)
- Annealing transformer power : 300KVA
- lubrication oil pump power : 3 KW (AC)
- pay-off copper circle outer diameter : 1200mm
- take-up motor power : 15KW (AC).
