(1)Max. entering (steel) wire strength≥1250MPa
(2)Max. entering (steel) wire dia. 5.5mm
(3)Min. exiting (steel) wire dia.1.4mm
(4)Pulling steel wire material carbon steel,alloy wire
(5)Max. steel wire drawing speed 16m/s ( Normal using speed: 12m/s)
(6)Water volume 6m3/h (Water pressure ≥0.25MPa)
(7)Air volume 1.5m3/h (Air pressure ≥0.6MPa)
(8)Motors drawing unit 30KW AC freq. con. motor
Take-Up unit 15KW AC freq. con. motor
(9)Drum of drawing machine
material steel ZG45~55, hardness alloy tungsten carbide is spraying-paint
Specifications
1.ISO 9001:2008 standard certification
2.main foreign markets: mid-east,southeast Asia,south Asia,Africa,etc.
Detailed Sell Lead Description:

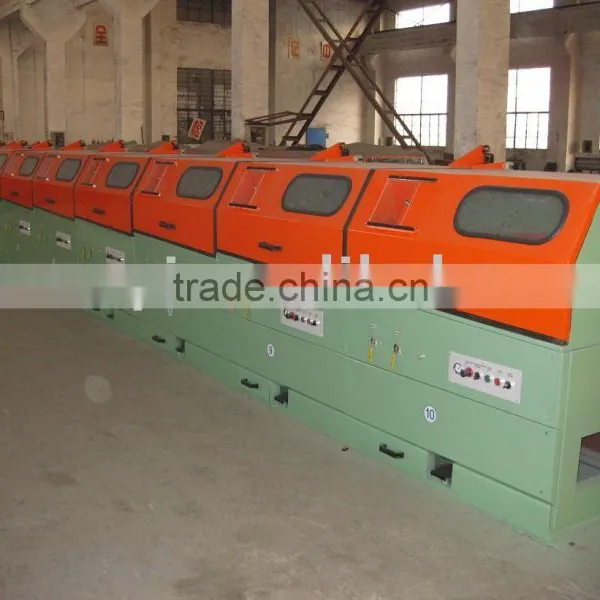

Description: LZ600 High speed straight wire drawing machine
Place Of Origin: Zhangjiagang City, Jiangsu, China
Company Published: 2009
Business type: Manufacturer
Number Of Employees: 50-100
Package: wooden case..
Feature: Applicable for drawing high, medium, low carbon steel wire/ alloy steel wire/ stainless steel wire,
with the feature of continuous pass drawing. The machine is controlled by PLC which is driven by frequency converter.
Specification:
Item |
LZ200 |
LZ300 |
LZ400 |
LZ500 |
LZ560 |
LZ600 |
LZ700 |
LZ750 |
LZ900 |
LZ1200 |
Dia. of Capstan |
200mm |
300mm |
400mm |
500mm |
560mm |
600mm |
700mm |
750mm |
900mm |
1200mm |
Capstan Nos. |
2~12 |
2~12 |
2~12 |
2~12 |
2~12 |
2~9 |
2~9 |
2~9 |
2~9 |
2~9 |
Inlet wire size |
2.5mm |
2.8mm |
4.2mm |
5.5mm |
6.5mm |
8mm |
10mm |
10mm |
14mm |
16mm |
Finished wire |
0.3mm |
0.6mm |
0.7mm |
1.2mm |
1.3mm |
1.6mm |
2.2mm |
2.2mm |
3mm |
3mm |
Max. Speed |
20m/s |
20m/s |
20m/s |
18m/s |
15m/s |
12m/s |
10m/s |
10m/s |
8m/s |
6m/s |
Power (Kw) |
5.5~7 |
7.5~11 |
7.5~22 |
22~45 |
22~55 |
45~75 |
45~90 |
55~90 |
90~132 |
90~160 |
