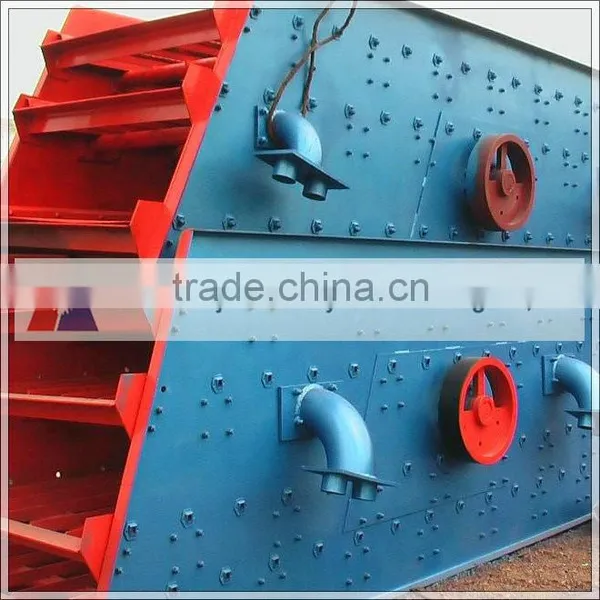

Rock ore circular vibrating screen:
1. High vibrating force with unique eccentric structure. Adopt advanced construction, making the vibrating force powerful.
2. The beam and case of the screen are connected with high strength bolts without welding.
3. Simple structure, easy to repair.
4. Adopt tire coupling and soft connection makes operation smooth.
5. High efficiency, easy maintenance, sturdy and durable.
Circular vibrating screen is a kind of new screening equipment, the vibrating track is a circle, and it is designed for especially screening stone stock of quarry, and also for classifying products of such departments as coal separator, mineral processing, building materials, electricity and chemical industry, etc. The output and energy consumption of our circular vibrating screen reach the national standard. It is advanced at home and abroad, and is well accepted by customers. The screening line of materials is long, the screening specifications are diverse and different from each other obviously, the screening efficiency is high, and it is hardly jammed. The screen has the advantages of reasonable structure, strong magnetic exciting capacity, low vibrating noise, durable, convenient maintenance, and safety and so on. (Note: According to different requirements of customers, our company applies vibrating screen with different specifications and vibrating modes.)

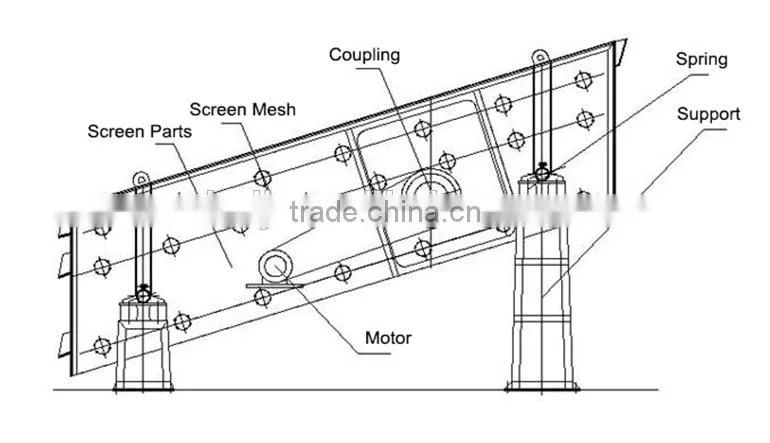

Circular Vibrating Screen Working Principle:
The motor makes the exciter swing rotate speedily through the tire coupling. The continuous forced circular motions of sieve box were achieved through the powerful centrifugal force. Under the influence of sieve box, the materiel are tossed forward successively on the mesh. they were classified as thrown up, and the particals smaller than the mesh size were sieved out when they are falling, so that the classification of material could be achieved.
Rock ore circular vibrating screen:
Model |
Layers |
Sieve Area |
Mesh Size |
Max Feeding Size |
Capacity |
Vibrating Frequency |
Double? Amplitude |
Power |
Weight |
2YK1235 |
2 |
4.2 |
5-50 |
200 |
35-180 |
970 |
7 |
5.5 |
3600 |
2YK1245 |
2 |
5.4 |
5-50 |
200 |
35-206 |
970 |
7 |
11 |
4320 |
3YK1245 |
3 |
5.4 |
5-50 |
200 |
35-206 |
970 |
8 |
11 |
4460 |
YK1535 |
1 |
5.25 |
5-50 |
200 |
34-200 |
970 |
8 |
11 |
3355 |
3YK1535 |
3 |
5.25 |
5-50 |
400 |
34-200 |
970 |
8 |
15 |
5710 |
YK1545 |
1 |
6.75 |
5-50 |
400 |
44-258 |
970 |
8 |
11 |
3900 |
2YK1545 |
2 |
6.75 |
5-50 |
400 |
44-258 |
970 |
8 |
15 |
4370 |
3YK1545 |
3 |
6.75 |
5-50 |
400 |
44-258 |
970 |
8 |
15 |
5832 |
3YK1548 |
3 |
7.2 |
5-50 |
400 |
47-275 |
970 |
7 |
15 |
6070 |
4YK1548 |
4 |
7.2 |
5-100 |
200 |
47-275 |
730 |
8 |
18.5 |
7090 |
YK1848 |
1 |
8.8 |
5-100 |
400 |
56-330 |
755 |
11 |
15 |
7122 |
2YK1848 |
2 |
8.8 |
5-100 |
400 |
56-330 |
750 |
11 |
15 |
6189 |
3YK1848 |
3 |
8.8 |
5-100 |
400 |
56-330 |
970 |
7 |
22 |
6935 |
2YK1854 |
2 |
9.72 |
5-100 |
400 |
63-586 |
970 |
7 |
22 |
7602 |
3YK1854 |
3 |
9.72 |
5-100 |
400 |
63-586 |
970 |
7 |
22 |
8640 |
4YK1854 |
4 |
9.72 |
5-150 |
200 |
32-310 |
12.16 |
8 |
30 |
10530 |
YK2154 |
1 |
11.3 |
5-100 |
400 |
73-683 |
730 |
8 |
18.5 |
5269 |
2YK2154 |
2 |
11.3 |
5-100 |
400 |
73-683 |
730 |
8 |
22 |
7851 |
3YK2154 |
3 |
11.3 |
5-100 |
400 |
73-683 |
730 |
8 |
22 |
9857 |
2YK2160 |
2 |
12.6 |
5-100 |
400 |
81-720 |
970 |
8 |
30 |
9240 |
3YK2160 |
3 |
12.6 |
5-100 |
400 |
81-720 |
970 |
7 |
30 |
12757 |
4YK2160 |
4 |
12.6 |
5-100 |
450 |
66-720 |
740 |
8 |
45 |
15125 |
2YK2280 |
2 |
17.6 |
5-150 |
400 |
90-750 |
730 |
8 |
30 |
10180 |
YK2460 |
1 |
14.4 |
5-150 |
400 |
150-810 |
730 |
8 |
22 |
6200 |
2YK2460 |
2 |
14.4 |
5-150 |
400 |
150-810 |
730 |
8 |
30 |
8013 |
3YK2460 |
3 |
14.4 |
5-150 |
200 |
450-650 |
740 |
8 |
37 |
10762 |
4YK2460 |
4 |
14.4 |
5-150 |
200 |
450-650 |
740 |
8 |
45 |
12786 |
1.Henan Lanji Machinery Manufacturing Co., Ltd is professional in producing large and medium-sized crushers, ball mills,mining equipments, brick/block making machine and so on.
2.Our clients spread all over the world. Products are sold to South Korea,, Indonesia, Vietnam,
Portugal, Africa and Middle East with the Annual export quantum composing one third of the total sales, wining praises from the purchasers.

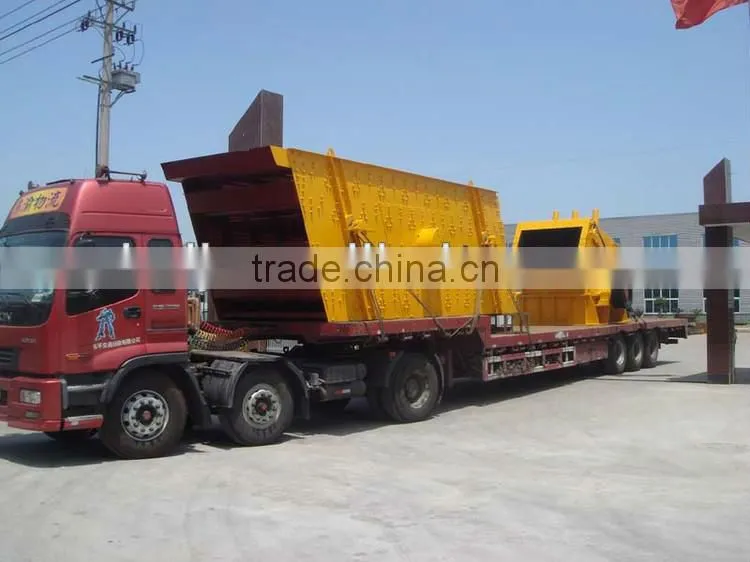

1..Installation: The seller provide all drawings for installation, engineers available to service machinery overseas.
2.After sale service: 1year guarantee.
