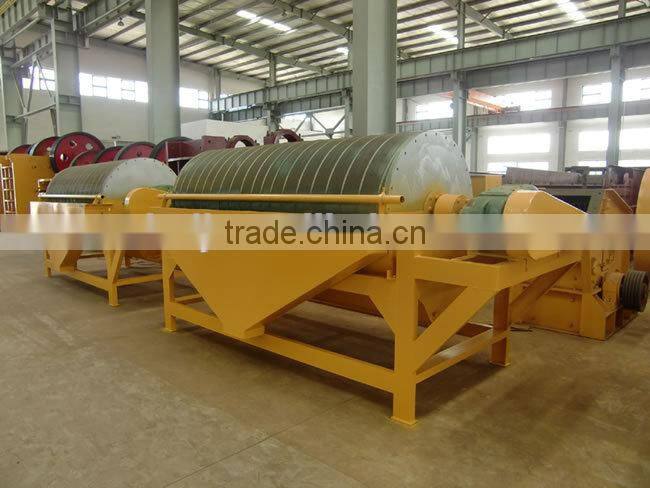

Permanent Wet Magnetic Separator for Iron Ore Separation

Permanent wet magnetic separator for  iron ore separation :

mprove 4-6% grade

Improve 8% recovery rate

Increase 12% capaity:2-180T/h

Application of Wet Magnetic Separator

The CTB Wet Magnetic Separator is applicable for wet mineral separation of such materials as magnetite, pyrrhotine, roasted ore and ilmenite, etc. And it is also applicable for iron removal working of such materials as coal, nonmetal and building materials, etc.

Wet Drum Separators are mainly used for the recovery of magnetic/ferrosilicon in dense media plants and iron ores. Wet drum separators work on a similar principle to our other existing drum separators. A stationary magnet system with several radial poles attracts the magnetic material to the drum face. The rotating cover then carries the magnetics from one pole to another, at the same time rotating the magnetic particle to allow trapped non magnetics to free fall.

This should then produce a clean magnetic product completing the magnetic separation process. Wet drum separators have three basic designs that work with 3 different types of application, they are concurrent, counter flow and counter current. The purpose of this is to ensure that we can meet recovery figures of 99.9% when dealing with different solid to liquid ratios.

Wet magnetic separator technical parameter:

Thanks so much for you taking time to browse our iron ore beneficiation production line. Any further questions, please feel free to contact us and we are ready to so service for you!
