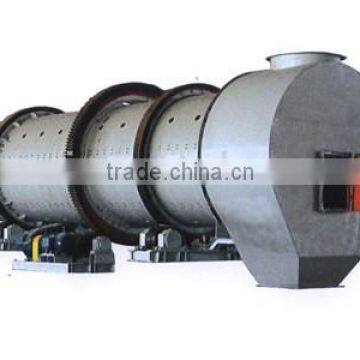

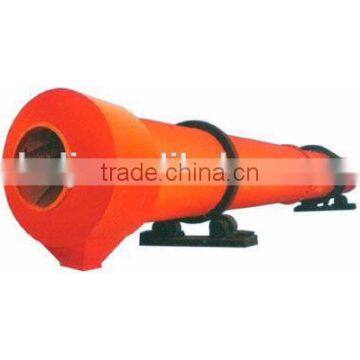

Flyash rotary dryer with model 2.2*16m

FOB Price

USD $6,000 - $160,000 / Set

1 Set(Min.Order)

Supply Ability 60 Set / Sets per Month
Port Qingdao Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Rotary Drying Equipment
Place of Origin	Henan, China	Brand Name	Lanji
Model Number	dia600-dia3200mm	Voltage	380v
Power(W)	according to model	Dimension(LWH)	refer to specification
Weight	refer to specification	Certification	ISO9001:2008
Warranty	1year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

1. Brief introduction of flyahs rotary Dryer

Rotary Dryer is widely used for drying slag limestone, coal powder, slag, clay, etc. Dryer can also be used in building materials, metallurgy, chemical and cement industry. Dryer mainly consists of dryer body, raw material feeding plate, driving and supporting device, seal ring, etc. Dryer can be generally divided into four types, they are: rotary dryer, triple-drum dryer, indirect heat transfer dryer, vertical dryer. Different kind of dryer has its own characters and advantages, the specific choice of a special dryer depends on differents elements.

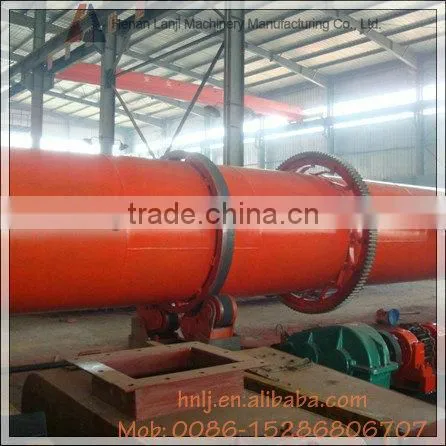

2. Flyash rotary dryer main structure:

3.Flyash rotary dryer working principle:

The lifting plates which are arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dryed.

4..Flyash rotary dryer main technical parameters:

Model (mm)	Inclination (%)	rotation speed (r/min)	input temperature	motor power (kw)	output(t/h)	weight(t)
Φ1000×10000	3-5	3-8	≤700	5.5	1.0-3.5	5.6
Φ1200×10000	3-5	3-8	≤700	7.5	1.8-5	14.5
Φ1200×12000	3-5	3-8	≤700	11	2-6	14.8
Φ1500×12000	3-5	2-6	≤800	15	3.5-9	17.8
Φ1800×12000	3-5	2-6	≤800	18	5-12	25
Φ2200×12000	3-5	1.5-6	≤800	18.5	6-15	33
Φ2200×18000	3-5	1.5-6	≤800	22	10-18	53.8
Φ2200×20000	3-5	1.5-6	≤800	30	12-20	56
Φ2400×20000	3-5	1.5-5	≤800	37	18-30	60
Φ2800×15000	3-5	1.5-5	≤800	40	20-35	72.5
Φ2800×18000	3-5	1.5-5	≤800	40	25-35	75
Φ3000×20000	3-5	1.5-5	≤800	55	28-40	80
Φ3000×25000	3-5	1.5-5	≤800	75	32-45	110
