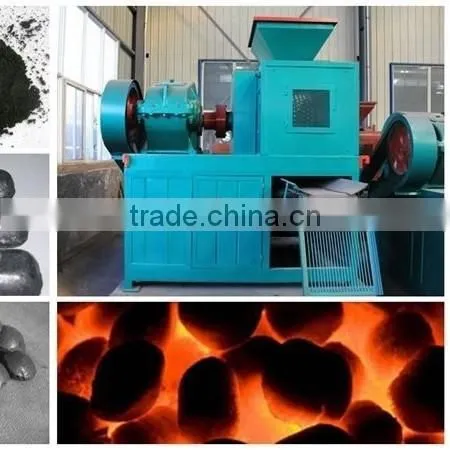

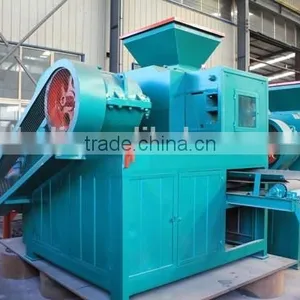

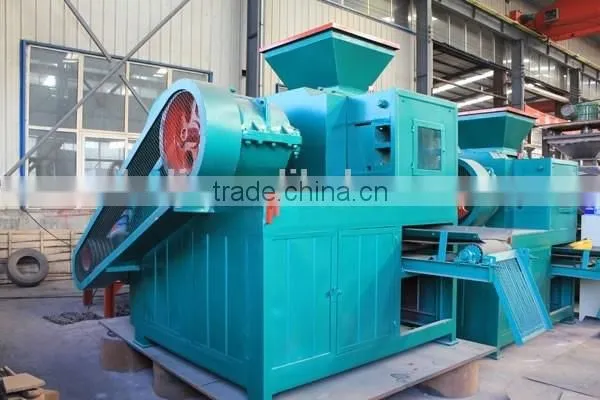

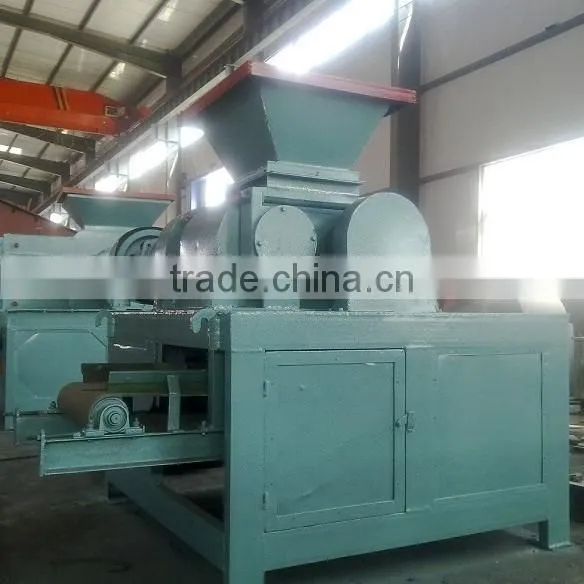

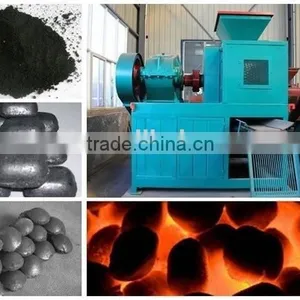

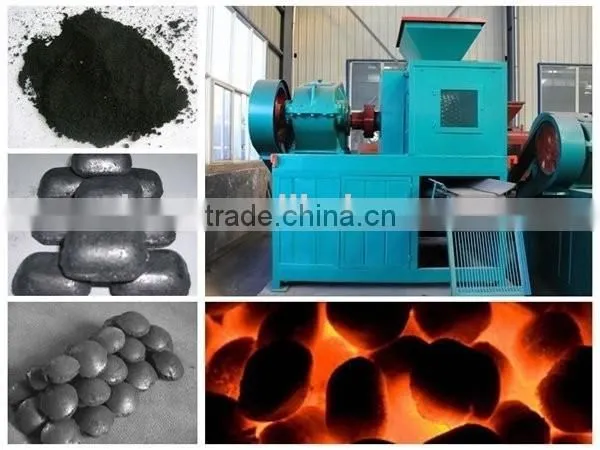

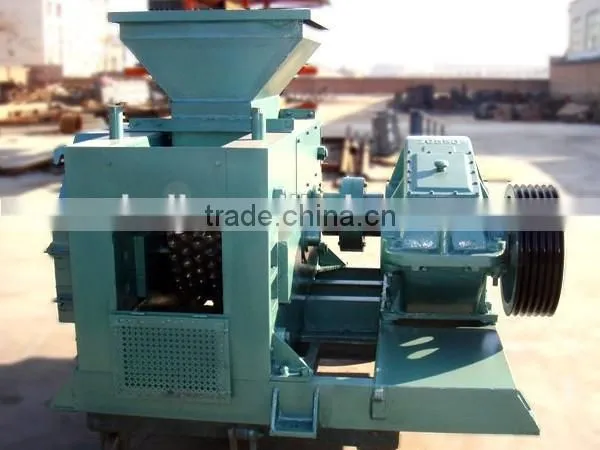

coal ball press:
Its unique design with lowest operating cost and very less maintenance for years makes it very successful & different from others.
Unique mechanical design of Whole Body, Die Holder & Cuppy put the Jumbo-90 most energy efficient.
Highlysophisticated engineering and State of the art manufacturing process results the world class quality and consistency.
The final pellet is in high quality and strong (not easy broken) so that it not easy to be broken when dropped from 150-250cm height. Meanwhile, it is easy for combustion, no smell and last longer when burning. So, the coal powder ball press machine suits our investment especially.
Coal ball press application:
ball press is used for making coal fines/dust into briquettes. Also fit for briquetting coke fines, carbon dust, charcoal powder, carbon black, iron ore fines, mineral powder, metal dust, cast iron dust, mill scale, manganese ore fines, fluorite powder, gypsum powder, ferrosilicon powder, and phospho gypsum powder, nickel alloy, blast furnace ash, converter dust, coal gangue, Kaolin clay, MgO, NPK, graphite, oil shale, potash fertilizer, urea fertilizer, sea sand powder etc. These briquettes can be designed of oval shape, egg shape, pillow shape, almond shape, elliptical shape etc. This machine is widely used in coal industry, metallurgy industry, chemical industry etc.

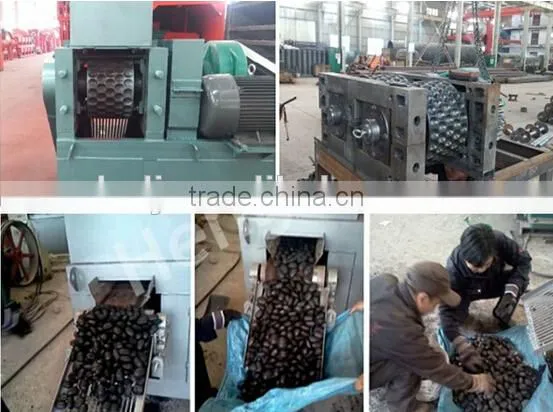

work principle
1, this series of ball press machine will pass the powder into the two pressure roller through the reducer.
2, the two sides and roll rotation, in both the rotating roll, natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger.
3, when the material to the two rollers rotating line contact point, the pressure of materials has reached the peak, tremendous pressure in the role of line, the materials becomes a finished product from the powder ball.
Coal ball press machine technical parameters:
Type |
Roll diameter(mm) |
Capacity(t/h) |
Power(kw) |
290 |
290 |
1-3 |
5.5 |
360 |
360 |
4-6 |
11-15 |
430 |
430 |
6-8 |
18.5 |
500 |
500 |
7-9 |
18.5-55 |
500H |
500 |
7-9 |
20.7-57.2 |
650 |
650 |
10-15 |
37-45 |
650H |
650 |
10-15 |
39.2-47.2 |
750 |
750 |
15-20 |
75-110 |
750H |
750 |
15-20 |
78-113 |
850 |
850 |
20-25 |
90-110 |
850H |
850 |
20-25 |
93-113 |
1000 |
1000 |
25-30 |
90-132 |
1000H |
1000 |
25-30 |
93-135 |

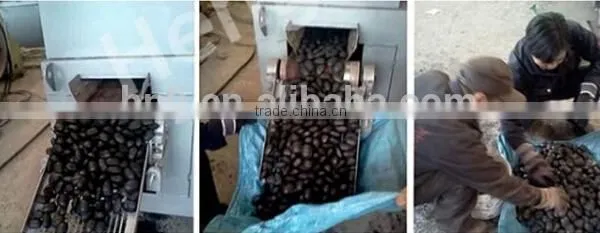

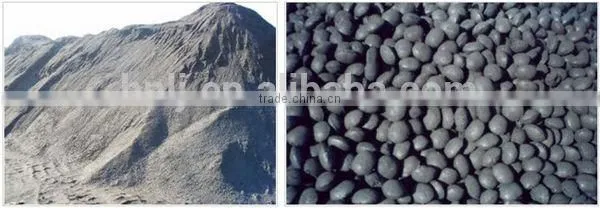

Raw material and final balls:
