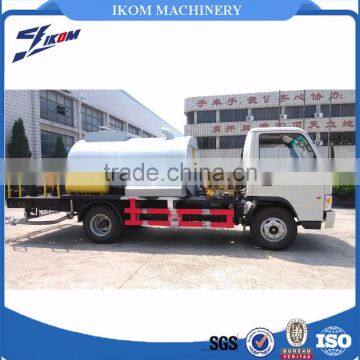

ASPHALT SPRAYER
Asphalt Distributor is an high-tech product which can spread emulsified asphalt, fluxed asphalt, oil refining asphalt, heated asphalt, heavy traffic paving asphalt and high viscosity modified asphalt (vehicle with high configuration). The product has been widely used in highway construction and road maintenance projects. It can be used for construction of upper and lowers seal coat, prime coat, waterproof layer, bonding layer, bituminous surface treatment, bituminous penetration pavement, fog seal and other projects of different grades of highway pavement. It can also be used for transportation of liquid asphalt or other heavy oil.
Original wedge positioning stainless steel combination nozzle sprays in the fan-shaped area and positions accurately. It is wear-resisting and the quality is reliable. It is fast and convenient to replace.

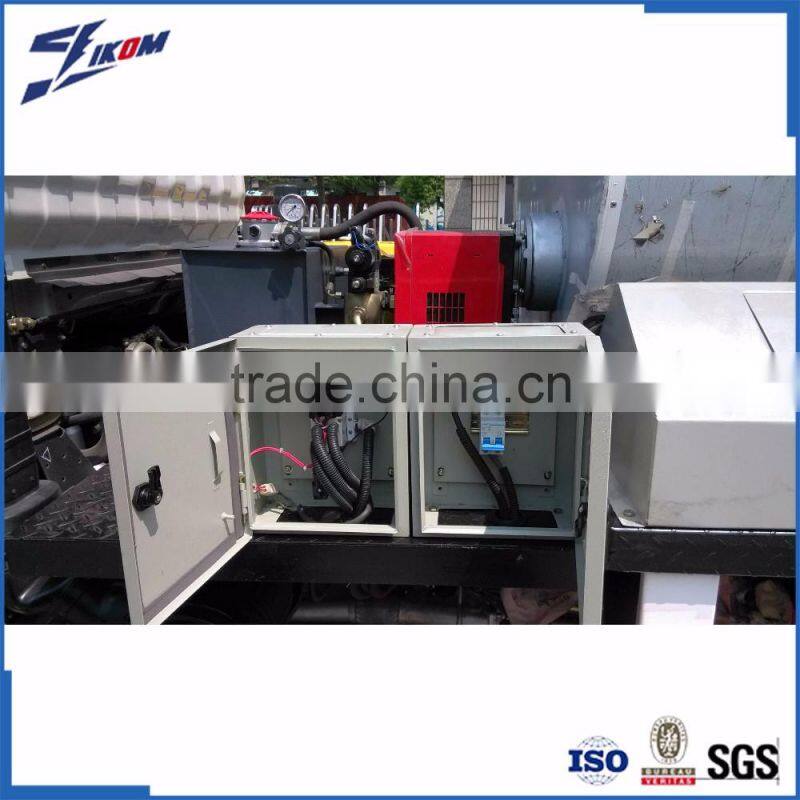

Equipped with high power auxiliary generator
Post injection switch can be turned on with one button. The operation is more convenient.
Asphalt pipeline has systemic circulation. It is suitable for spraying emulsified asphalt and heated asphalt.
PTO power take-off method is used. Zero distance spraying can be realized.
Three overlapping spraying ensures more uniform spreading with higher precision.
PARAMETER
Product name | Asphalt distributor |
Product model | ZQZ5061GLQ |
Product brand | ZHONGQI |
Dimension(LxWxH mm) | 6460×1980×2400 |
Rated tank capacity(m3) | 3.2 |
Chassis model | HFC1065K1DT |
Manufacturer |
Anhui jianghuai automobile Co., LTD |
Truck type | crew cut 4*2rear drive |
Tire model | 6.50-16 |
Approach/Departure angle (°) | 23°/14° |
Engine power rating/rotate speed(kw/r/min) | 85/3200 |
Fuel type | diesel oil |
Engine model, pattern, category | YC4F115-30 |
Inline-four cylinder pressurization | |
Applicable emission standard | GB17691-2005(Euro Ⅲ)GB3847-2005 |
Cab seating capacity(including driver) | 3 |
Max truck speed(km/h) | 95 |
Vehicle kerb mass (kg) | 6495 |
Rated load weight (kg) | 2380 |
Working speed(km/h) | 1.5~10 |
Asphalt pump displacement(ml/r) | 300 |
Spray width(m) | 4.5 |
Asphalt spray volume(L/m2) | 0.3~3.0 |
Transmission system |
mechanical drive |
Hydraulic system max pressure(MPa) | / |
Asphalt heat preservation type |
tail gas heat preservation |
Cleaning type |
high pressure air cleaning and diesel oil cleaning |
