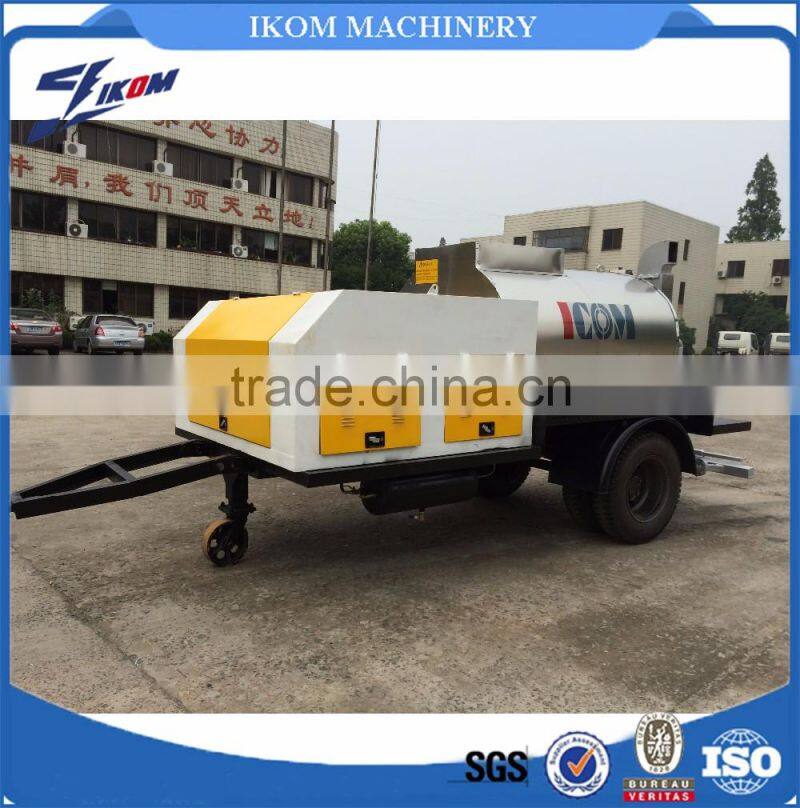

ZMTS-25 Trail Asphalt Distributor Specification
Name | TrailAsphalt Distributor | ||
Model | ZMTS-25 |
| |
Mass parameter: | |||
Kerb Weight(kg) | 2300 | Total Weight(kg) | 4800 |
Rated loading Weight(kg) | 2500 | Dimension(mm) (Excluding traction arm ) | 4960×1860 ×2200 |
Chassis Parameter: | |||
Chassis Model | ZMTS-25 | Tyre model | 7.50-16 |
Wheelbase (mm) | 2310 | Tread mm | 1650 |
Front Overhang(mm) | / | Rear Overhang(mm) | / |
Approach angle,Departure angle | / | Minimum Ground Clearance (mm) | 350 |
Spray specification: | |||
Tank Capacity(m³) | 2.5 | Spray width | 2000mm |
Hydraulic pump model | / | Spray Value | 0.5—3.0(Kg) |
Hydraulic motoe | / | Insulation Thickness | 50mm |
Controller | / | Nozzles | 15 |
Burner | G10(Riello) | Asphalt pump | YCB6/0.6 |
Generator(Converter) | YT7100E | Manual gun nozzle | 1(conical) |
Air compressor | 0.1/0.8 |
|
|
Other parameter: | |||
Max. Trail speed(km/h) | 30 | Max. Grade ability | / |
Spring films(Front/Rear) | / | Minimum turning diameter (m) | / |
|
| Axis No. | 2 |
DETAIL PICTURES
KEY COMPONENT
TEST
Case
Performance

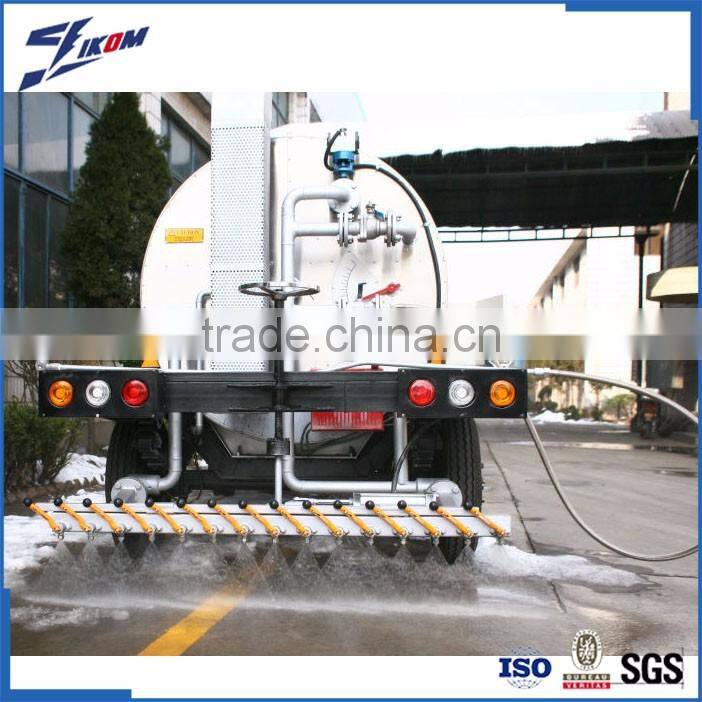

1: Nozzle
a,Installation of stainless steel nozzle, can be positioned correctly and easy to replace
b,Stainless steel nozzle be used more time than other nozzle.
c,When spraying asphalt, bitumen consumption can be reduced and keep the quality of spray keep the
2: Controller
a.Control system is more friendly and easier to be operated.
b. Intelligentzied model is suitable for asphalt pavement construction which can improve performance achievement of the international advanced standard.
3: Cleaning, Can use diesel fuel or high-pressure air cleaning of pipes and pumps
4: Environmental protection, reduce the consumption: In the spraying end, using high pressure air makes asphalt of residues in pipe row back to the tank, Avoid residual asphalt pollution of the environment, and save the asphalt consumption
Best Services Just For You!!
The extremely considerate and sincerely service would be provided to our customers immediately in CNCAC once made the order. This including:
1.Operator Training;
2.Spare Parts Supply;
3.Life-long Technical-support;
4. we can supply installation, commissioning, training etc;
5. welcome to visit our factory at any time any where!!!
We are 5 year gold supplier on Alibaba.
Click the Link to our homepage.
Hangzhou ICOM construction Machinery Co., Ltd. is a professional manufacturer of asphalt machines. Our sales and R&D team have over 10 years experience to focus on asphalt distributor, synchronous pavement surface vehicles and other road machinery and equipment . Based on innovation and expertise, we have received more than 10 patents, selling more than 20 countries and regions.Focus cast quality, intentions to win the trust. We will offer innovative, professional, practical asphalt machinery and equipment with the spirit of craftsman.
1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2. MOQ:
No requirement for testing and trial order
3. Handling time for an order:
Within 10 days supplied from stock
4. Shipping way:
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
5. Quality Control:
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
6. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
c. Free replacement will provide once the failure confirmed caused by our product quality.
