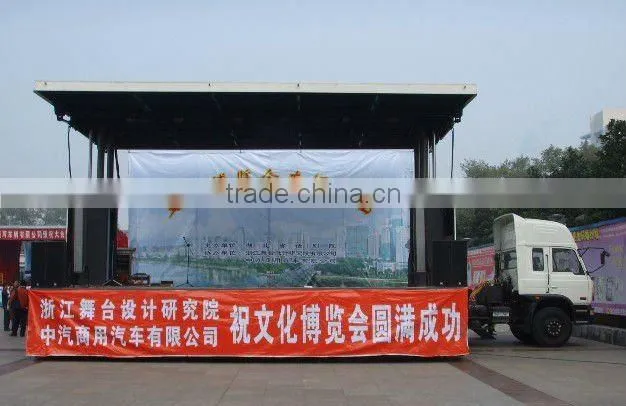

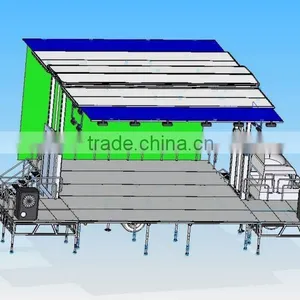

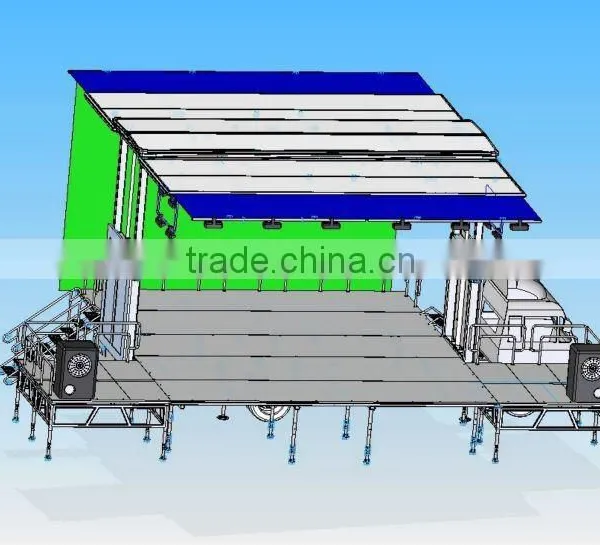

Stage Length 5M Mobile Stage Truck

Length(Body length + tractor length)

7.9M(5.3+2.4M)

Time of set up the stage

10 min.by three persons.

height(Distance from the ground)

1.25M

Ceiling bearer

500KG

Stage area

36 m2(5MX7.2M)

Wind resistance

Good (5 class)

Road adaptability

Good

Lighting interface

16 way

Performances comprehensive adaptability

Car body has been integrated reserve lighting , subtitles , curtain , silicon case , sets hanging , such as auxiliary station interface apply to larger performances

Performances practicality

Canopy ceiling , lighthouse , lighthouse strong set of surface light hanging expansion interface

Chassis model

HFC1083K103R1D(JAC)

MAIN FEATURES:

Design professional:Maximum extension of the stage proscenium and stage clear height ceiling carrying capacity, pre-the lighthouse setting booms, professional stage process design and professional industrial design

Operation of security:Applily the vertical lift-oriented institutions, and setting the hydraulic outrigger, ceiling safe and stable, carriage, stage surface stability, smooth and professional design field wind resistance.

Show adaptability: Reserve lighting, sound, subtitles, curtain, power, backdrops hanging point interface, good scalability to meet the show needs of the stage floor, all the devices do not need to climb weight.

Maintain Economy: Hydraulic control system, and very convenient operation,Only need to be equipped with a driver and theater lights sound engineer.

Durability: vehicle designed according to standards, can adapt to the harsh environment and high density strength.
