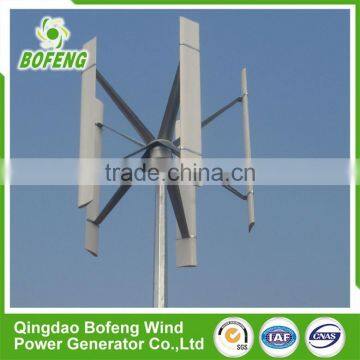

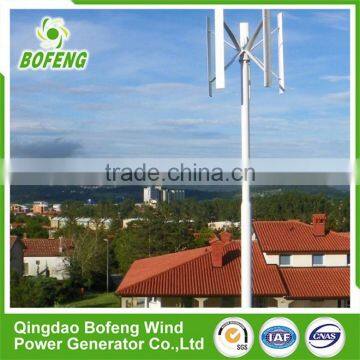

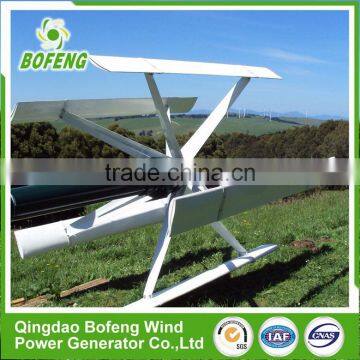

Factory Big Scale Long Life roof-mounted 2kw vertical axis wind turbine price
Wind turbine blades:
We utilize high strength glass fibre reinforced plastic and epoxy resin to make blade. The wind rotor operate well(stably and quietly). This kind of new aerofoil is elaborately designed by aerodynamicand hydromechanical specialists (experts). It start-up wind speed (or cut-in wind speed) is very low, and the wind energy (rotor power) coefficient is very high.
Whole machine:
It is made up of steel precision casting. It is widely used in air temperature: -30°C- 60°C, high humidity, karaburan and salt mist (in some atrocious weather). It has high reliability. BF series small VAWT, whose appearance is beautiful, installation is easy. You can enjoy the clean(green) energy, at the same time, you will see a beautiful scenery.
2KW VAWT Techincal Data
Power(w) | 2000 | Rated wind speed (m/s) | 11 |
Rotor diameter(m) | 2.3 | Start-up wind speed (m/s) | 3 |
Height of blade(m) | 2.6 | Range of working wind speed(m/s) | 3-25 |
Material of blades and numbers | Glass Fiber Reinforced Plastic/5 | Survival wind speed (m/s) | 50 |
Rated rotor speed (m/s) | 180r/min | Output Voltage | AC48V |
Speed regulation method | Electromagnetic control | Stop method | Electromagnetic brake |
Wind energy utilized efficient | 30%-40% | Sweep wind area | 5.98m2 |
Range of working temperature | -45°C-60°C | Suggested supporting battery | 4pcs12v200ah |
Top weight (kg) | 180kg | Tower type and height | Free standing tower/8m |
2KW PMG Techincal Data
Generator:
It is made up of the superior high strength permanent magnetic material. The volume is small and the weight is light, the generating electricity coefficient is high. The generator specialist (expert) use special electromagnetic technology to make the generator have extremely low start-up drag torque, which can make sure the VAWT start-up in the gentle breeze.The generating electricity coefficient, start-up performance and overspeed overload capacity of generator are all in leading position in this field.
(W)Rated out power | 2KW |
(RPM)Rated Rotation Speed | 200 |
(A)Recified DC current at Rated Output | 25 |
(N.M)Requied Torque Ar Rated Power | <95 |
(Ohms)Phase Resistance | 1.6 |
(mm)Output Wire Square Section | 80 |
Insultation: | F |
Generator configuration | Three phase star conected output |
Design Lifetime: | >20 Year |
(Kgs)Weight | 45 |
(NM)Starting Torque | ≤3.6 |
Bearing Type: | High standard NSK Bearing |
Shaft Material | High standard Stainless steel |
Outer Frame Material | spheroidal-graphite cast iron |
Fasteners(nuts and bolts) | High standard Stainless steel |
Winding Temperature Rating: | 180 Degarees Celsius |
BOFENG 2KW Noisy Emission Level
2KW Controller
Product Model | 2Kw |
Rated Battery Voltage | 48V |
Rated Wind Turbine Maximum Power | 2KW |
| Rated Wind Turbine Maximum Input current | 50A |
Rated Wind Turbine Maximum Instantaneous Input Power | 4KW |
Unload Voltage(factory default) | 56V |
Unload Current (factory default) | 60A |
Rated PV Power | 600W |
Control Mode | PWM |
Display Mode | LCD |
Display Parameters | Battery Voltage, Wind Turbine Voltage, PV Voltage, Wind Turbine Current, PV Current, Wind Turbine Power, PV Power .Etc |
Range of working Temperature &Humidity | -20~+55°C/35~85%RH(Without Condensation) |
Quiescent Current | ≤30mA |
In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement. | |
2KW Inverter
Rated Output Capacity | 2KVA |
Rated Battery Voltage | 48VDC |
Rated Output Capacity | 2 kVA |
Over Voltage Shutoff | 68VDC |
Over Voltage Recovery | 66VDC |
Under Voltage Shutoff | 42VDC |
Under Voltage Recovery | 48VDC |
No Load Loss | 0.72A |
Output Wave Form | Pure Sine Wave |
Display Mode | LCD |
Display parameters | Battery Voltage, State parameters |
Cooling Mode | Fan |
Rated Output Voltage | 220 VAC |
In order to serve our customers better, our company can adjust parameter configuration according to customer’s requirement. | |
1.Utilize a new aerofoil vertical axis wind wheel and magnetic suspention structure
2.The start-up wind speed is very low
3.The wind energy coefficient is very high
4.The anti-wind capability is high
5.The weight of generator is very light
6.Operation is stable
7.Have no noise
8.With careful anti-corrosion treatment and good sealing
9.Maintenace free
10.Long service life
