Pellet Mill refers to a stand-alone equipment. It is the core machine of a complete production line of pellet. Therefore the Complete Line is called pellet plant or pellet complete production line. Generally, a pellet plant can either refer to a biomass pellet plant or an animal feed pellet plant due to the different use of pellets made with different ingredients. Pellet Mill is the forming equipment within a pellet plant, with the auxiliary equipment usually including crusher, hammer mill, mixer, cooler, sifter and packing machine.

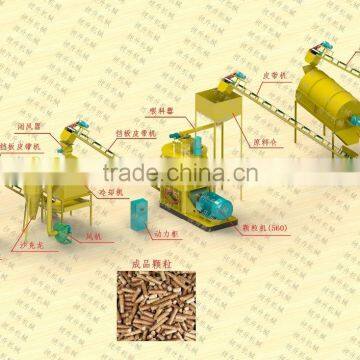

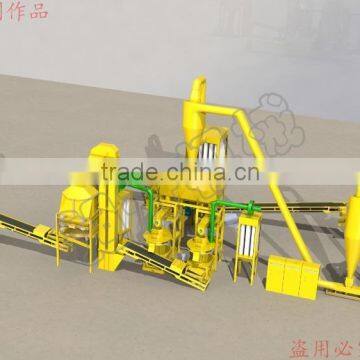

Below are our standard pellet production processes for your reference:

A: 1-1.5t/h wood pellet line Chipping & Crushing stage:

 if the diameter of your raw materials is large,then raw materials will be needed to be crushed into 1-20mm diameter type materials before making pellets,if the diameter is from 5mm to 25mm,then a wood chipper will be required.Wood chips need wood sawdust hammer mill to crush into 1-20mm sawdust before making pellets.

Below is our wood chipper

Below is hammer mill in the international exhibition

B: 1-1.5t/h wood pellet line Drying stage:  if moisture content in the sawdust is over 20%, a dryer will be necesary for you to dry raw materials before pelletizing;if MC is below 10%, you have to add some water for increase the adhesiveness.The Optimal MC in raw material is 12-18%.

below is our dryer

C: 1-1.5t/h wood pellet line Pelletizing stage: A pellet mill, also known as a pellet press, is a type of mill or machine press used to create pellets from powdered material. Pellet mills are unlike grinding mills, in that they combine small materials into a larger, homogeneous mass, rather than break large materials into smaller pieces.

below are our pellet machines in the exhibitions

Below are parameters for wood pellet mill:

D: 1-1.5t/h wood pellet line Cooling Stage:

After the pelletizing process, the temperature of the wood pellet is about 60-80 degree, and the moisture content of the wood pellet is about 15%, so we need use Cooler to reduce about 3-4% moisture, such this the wood pellet is easy to store.

Below is our cooler:

E: 1-1.5t/h wood pellet line Packing stage:

After cooling, the wood pellet will not directly enter into the fuel process, avoiding the wood pellet affected with damp. The packing process is necessary. In this process, we assemble our domestic best Packing Machine to you.If you need fully auto packing machine,we can offer you as per your requirements:

below is our packing machine:

Our CE certificates for our machines:

We adopt standard seaworthy export packing for our machines:

Below are packing and shipping of 1-1.5t/h wood pellet line

Below are finished pellets for your info:pellet diameters are from 4-12mm

    The year 2005 saw that Shandong Changsheng Machinery was born in the Zhangqiu Industrial Park with well-developed industrial foundation, Shandong Province; the first phase of the project covers an area of approx.100,000 square meters,with a total investment of nearly USD35 million and registered capital is USD12.5 million. Currently we have 900-plus staff. Having six departments-Administration, International Trade, Development, Finance, Production and Logistics, our company is a high-tech private enterprise, centering on production, R & D and sale of various large and medium pellet machines and complete pellet production lines. Our company has over 40 patents, 9 of them are invention patents. Over 15 years’ innovation, we are successively awarded numerous honors-Shandong Brand Product, Zhangqiu Top 10 Tax Payer Enterprise, Jinan Mayor Quality Prize, National High-tech Enterprise, Shandong Innovative Enterprise, Shandong Star Enterprise of China's patent, etc.

  Today, our products have been sold worldwide and our technology has reached the international advanced level, and a number of techniques have filled the domestic blank.

Changsheng Machinery spent heavily on building the world’s advanced pellet machine processing line and comprehensively achieved the synchronization with globally highest level of production. We are furnished with five professional shops for production, processing, assembly, paint and test running.

Hundreds of sophisticated precision machining equipments-CNC machining center, Longmen planer, horizontal boring and milling machine, large flat grinder, multifunctional CNC bending knee type milling machine, large radial drill, open-type inclinable press, NC cutting machine, NC lathe, etc.

Being field-experienced, 85% of staff carry out the scientific production process in the standardized factory and strive for excellence. There are rigorous standards on every link. All equipments must be tested severely before leaving the factory, and the passing rate is 100%.

We are committed to sharing quality products with the world. The first domestic Changsheng pellet machine was born in August, 2009; in 2011 our pellet machine was exported to Malaysia for the first time; and our international trade department was established in 2012. This way, Changsheng products are sold around the world. We are delivering unceasing surprises and achievements to our partners in China mainland, Taiwan, America, German, Korea, Brazil, Portugal, Russia, Australia, South Africa, Kenya, etc. Explore more financial sources and blaze a new way to the wealth.

We build our own 5S service project: special oil, special fitting, special services, specialist training and standardized management. We offer our clients such services as equipment installation and usage, etc. Our training content includes equipment maintenance, simple repair, electrical equipment operation, daily management, and so on.

We set up after-sale service offices in East China, North China and other districts. 24/7 telephone support services are available, and our engineers are able to solve all clients’ questions and problems anytime. Upon receiving domestic clients’ call, our after sales service personnel shall reach the client’s worksite within 24hours; for southeastern Asian clients, our related personnel shall reach the destination within 48hours, and it will be 72hours for European and American areas. Excellent after-sale services have earned widespread acclaim for our company.

The sky is the limit for the development of Changsheng Machinery. The grand prospect of Changsheng Machinery is unfolded. Nowadays, bearing new hope and taking advantage of new opportunities, Changsheng people are marching toward to new heights and brilliance.

Q:What parameters we should offer to get fittest pellet machine?

 A: Raw materials, moisture content in raw materials and capacity per hour.

Q: Can machine color be customized?

A: Yeah,no problem

Q: Are you a factory or trading house?

A: We are a factory of approx 100,000M2.

Q: Do you accept on-site inspection to check your pellet machine and your factory?

A: We strongly,firmly,warmly and sincerely expect your personal visit,and we hope to have a face-to-face negotiation with you and hope to do our host for you then.

Q: What payment terms do you prefer?

A: T/T,L/C,West Union,Cash,and so on.

Q: What about your delivery period?

A: 5 to 50 workdays upon getting advance or L/C,it depends on our production task arrangements,as saying goes:"first come,first served."

Q: What about your warrranty for your machines?

A: Our machines are warranted for 12 months as of delivery,and we will offer you lifelong consultant services.If required,our engineers can go to your work site to help you solve you problems.

Q: How could we get working video of your machines?

A: We can trasnfer video online to you by Alibaba Trademanager or Skype or QQ,etc.

Q: How could you directly contact you:

A: You can contact us by Skype-oncle_hugo; email:info AT

Q: Do you need international commisison sale agent?

A: We hope to cooperate with world-wide agents for co-win benefits.

Q:Give us reasons to purchase your products:

A: First,our factory are top 3 all over China ; second,our services are humanizing,religious,hospitable and comprehensive; third, our products are CE approved,and warranted by our entity; fourth, we uphold the principle of Integrity and Morality; Last but not least,your personal visit to our factory will prove our words, believe it or not, as long as you visit our factory,you will definitely select us,We are expected your upcoming visit day and night!

Should you have any question,pls feel free to contact us asap.
