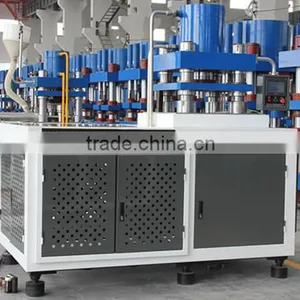

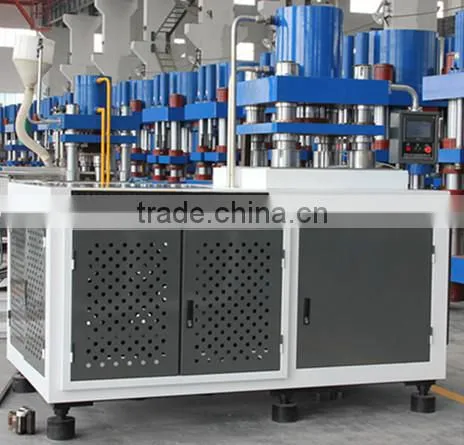

Help CenterJYJ Hydraulic Tablet Press Machine Price
Related Products
-
Top Quality Hydraulic Tablet Press Machine With CE ApprovedUS$ 10,000 - 34,850MOQ: 1 Set -
Reasonable Price For Protein Powder Forming MachineUS$ 5,000 - 15,873MOQ: 1 Set
-
Hydraulic Powder Forming Machine With Reasonable PriceUS$ 10,000 - 42,000MOQ: 1 Set
-
JYJ - Powder Comperss Machine With High EfficiencyUS$ 10,000 - 42,000MOQ: 1 Set
-
4 Column Hydraulic Press MachineUS$ 24,250 - 34,850MOQ: 1 Set
Specifications
Can compress three layers washing powder tablet
PLC control, stable performance, high precision
Hydraulic system from Taiwan
Brief Introduction
SYST300T hydraulic type tablet press machine is my factory newly developed and made a large tablet machine, it will compress granular, powder-like material into a variety of general and special-shaped pieces suitable for large-scale repression of products on the products requiring high-density products, while a multi-chip module can be used for largescale production industries, equipment, high precision, easy to learn mold replacement and
installation. High degree of automation. All actions by the microcomputer PLC control, continuous automatic.
Can be properly adjusted to suppress the time, pressure, product thickness.
The entire hydraulic system imported from Taiwan, stability, higher, to avoid oil spills, oil-for-dirty, the pressure is not enough, action is not synchronized for continuous problems. Working part
and the separation of part of the hydraulic system of independent, non-polluting, automatic heat, the device to minimize wear and tear
The machine is developed by our factory itself which can be used for dual layer tablet, because It can have two hoppers and two feeding system.
Main technical parameters
Model | SYST-45 | SYST-100 | SYST-200 | SYST-500 |
Working pressure | 45T | 100T | 200T | 500T |
Uprush max stroke | 150mm | 200mm | 200mm | 200mm |
Max. Depth of fill | 150mm | 180mm | 200mm | 200mm |
Max diameter of lower mould | 300mm | 300mm | 300mm | 300mm |
Max diameter of products | 200mm | 200mm | 200mm | 200mm |
Capacity | 4~8 times per minute | 4~6 times per minute | 4~6 times per minute | 4~6 times per minute |
Motor power | 7.5kw | 11kw | 15kw | 11kw+3kw |
Dimension | 1.8*1.5*2.5M | 1.8*1.6*2.6M | 2.3*1.6*3.2M | 3.6*2.2*3.8M |
Weight | 2300kg | 3500kg | 4500kg | 12000kg |
Exported Countries:
Indonesia,Saudi Arabia,Malaysia,India,South Africa,Canada,Australia,Russia,Spain,Pakistan,Turkey,Egypt,Germany ,Korea and so on.
Our Service:
1.Before you buy the machine,we'll help you to konw the detail information of it
2.After you buy the machine,we'll send technician to your factory,help you install the machine and train your workers how to operate and maintance the machine.
3.After our technician back to China,we have 24 hours aftersale service for you if your machine has any problem,we will help you right now.
Package&Shipping
1.SYST-16 to SYSt-200 The machines will be packaged by wooden case.
2.SYST-300 to SYST-1500 We will load the machines in the container with waterproof.
3.All the machines will be adjusted and tasted before shipping.
