Brief introduction
1.It's a kind of newly developed automatic tablet press machine.
2.It can press granular,powder-like material into a variety of general and special-shaped pieces.
3.It is suitable for the products which is required high-desity.
4.Easy to learn moudle replacement and installation.
5.High degree of automation.
6.All actions by the micro computer PLC control.
7.Can be properly adjust the pressure and thickness of the product.
8.Offer molding manufacturing service.
9.We'll arrange technician to your factory to help you bebug the machine and train your works how to use it.
10.Warranty period: One year (We'll provide vulnerable parts and service door to door by free within one year)
11.Appearance:Stainless Steel
Hydraulic System:
1.Imported form Taiwan CE Marking PLC(Mitsubishi)
2.With high stability
3.Avoid oil leaking and polluting
4.Ensure the pressure enough and action synchronized for continous.
5.Oil cylinder woring area and mechanical working area are independent of each other
6.Non-polluting and automatic heated.
Package&Shipping
1.SYST-16 to SYST-200 The machine will be packaged by wooden case
2.SYST-300 to SYST-1500 The machine will be loaded in the container with waterproof
3.All the machines will be adjusted and tasted before shipping
Main Markets:
Indonesia,Saudi Arabia,Malaysia,India,South Africa,Canada,Australia,Russia,Spain,Pakistan,Turkey,Egypt,Germany.
Main technical parameters
Model | SYST-45 | SYST-100 | SYST-200 | SYST-500 |
Maximum Working pressure | 45T | 100T | 200T | 500T |
Uprush max stroke | 150mm | 200mm | 200mm | 200mm |
Max. Depth of fill | 150mm | 180mm | 200mm | 200mm |
Max diameter of lower mould | 300mm | 300mm | 300mm | 300mm |
Max diameter of products | 200mm | 200mm | 200mm | 200mm |
Capacity | 3-4 times per minute | 3-4 times per minute | 3-4 times per minute | 1.5-2 times per minute |
Motor power | 7.5kw | 11kw | 15kw | 11kw+3kw |
Dimension | 1.8*1.5*2.5M | 1.8*1.6*2.6M | 2.3*1.6*3.2M | 3.6*2.2*3.8M |
Weight | 2300kg | 3500kg | 4500kg | 12000kg |

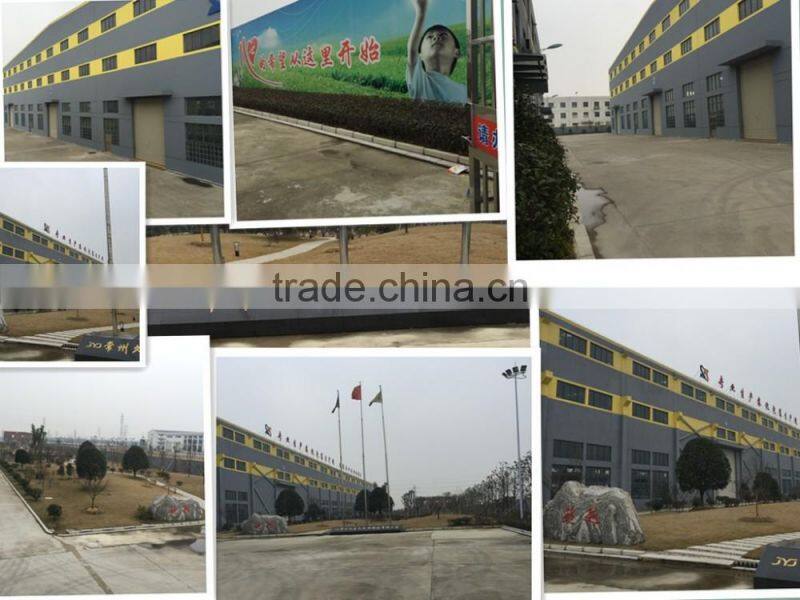

Our factory:
Our Service:
1.Before you buy the machine,we'll help you to konw the detail information of it.
2.After you buy the machine,we'll send technician to your factory,help you install the machine and train your workers how to operate and maintance the machine.
3.After our technician back to China,we have 24 hours aftersale service for you if your machine has any problem,we will help you right now.
