Specifications
1.Fully automatic with PLC controlling
2.Reasonable price
3.Offer installation service abroad
Introduction

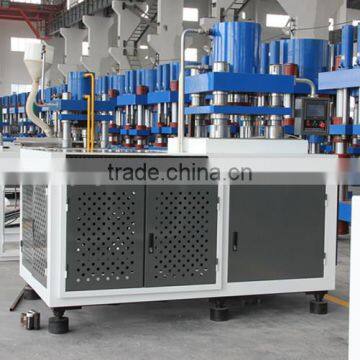

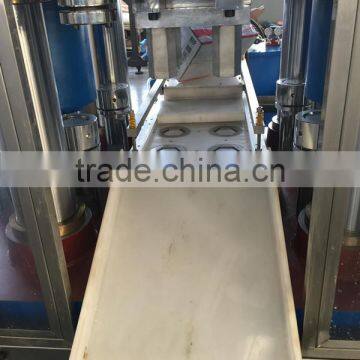

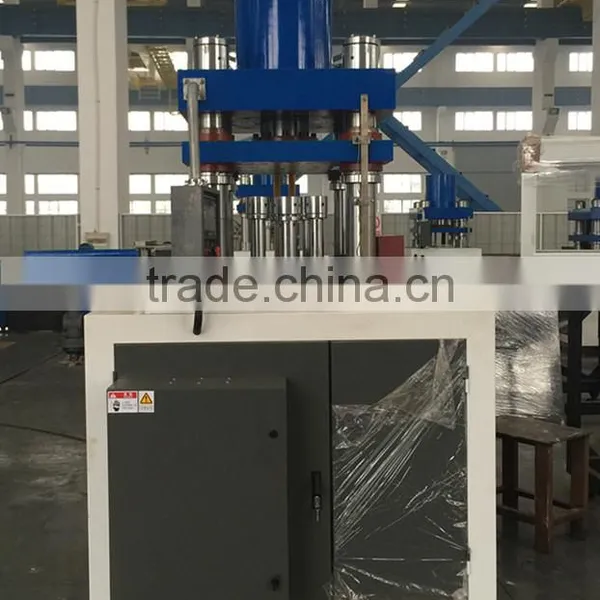

This hydraulic press is the new product used to make tablet with different shapes from different materials in food,chemical industry,electronics,metallurgy etc.
1. The whole machine is made of stainless steel,which can prevent from polutions,conform with GMP standard.And the Work platform is clean enough so that we get the light demolition,internal cleaning convenience purposes.
2. Equipped with a transparent viewing window to enable operators can see the whole system working condition.
3. Adopted PLC programming controller for the wholly system, realized bi-directional repression.Imported hydraulic components are used on this machine, all the key positions can be dually operated by mechanical and electrical ways.All of the operations can be adjusted through the PLC to the best state.Therefore,the machine is quite easy to be operated, can work stably,safly and accurately
4. The hydraulic components are equipped inside of the machine and independent to prevent the damage from outside,pollution-free ,easy release the heat also and The control panel can be design to demonstrate in different foreign languages.
Main technical parameters
Model | SYST-200 | SYST-300 | SYST-500 |
Working pressure | 200T | 300T | 500T |
Ascending stroke | 220mm | 230mm | 250mm |
Filling height | 250mm | 250mm | 280mm |
Diameter of the Below mould | 350mm | 350mm | 350mm |
Max block diameter | 260mm | 260mm | 260mm |
Block weights | 1-3kg/pcs | 1-5kg/pcs | 2-10kg/pcs |
Motor power | 15kw | 18kw | 11+3kw |
Machine Dimension | 2.3*1.6*3.2M | 3.5*2.2*3.6M | 3.6*2.2*3.8M |
Machine Weight | 4500kg | 6500kg | 12000kg |
Exported Countries:
Indonesia,Saudi Arabia,Malaysia,India,South Africa,Canada,Australia,Russia,Spain,Pakistan,Turkey,Egypt,Germany ,Korea and so on.
Our Service:
1.Before you buy the machine,we'll help you to konw the detail information of it.
2.After you buy the machine,we'll send technician to your factory,help you install the machine and train your workers how to operate and maintance the machine.
3.After our technician back to China,we have 24 hours aftersale service for you if your machine has any problem,we will help you right now
Package&Shipping
1.SYST-16 to SYSt-200 The machines will be packaged by wooden case.
2.SYST-300 to SYST-1500 We will load the machines in the container with waterproof.
3.All the machines will be adjusted and tasted before shipping.

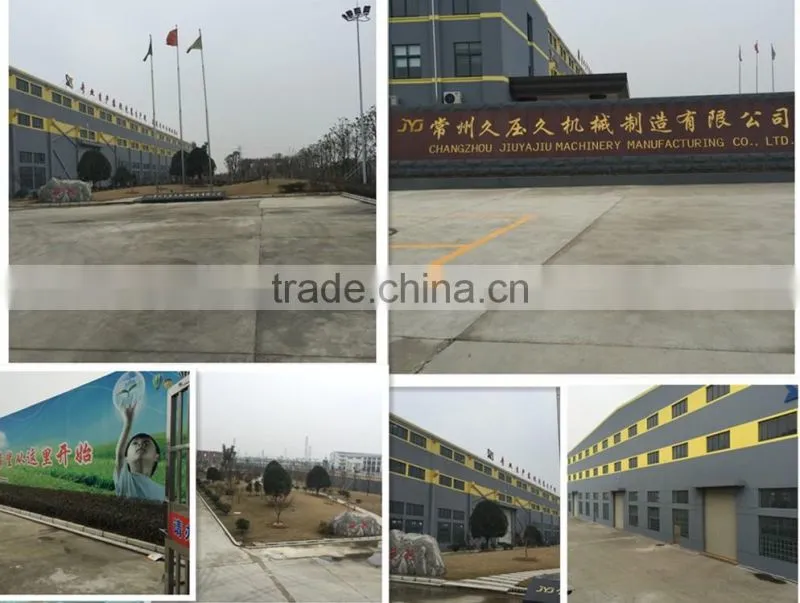

Welcome to visit our factory
