Home > Products > Ceramic tablet press machine > hot press machine for making ceramic tablet

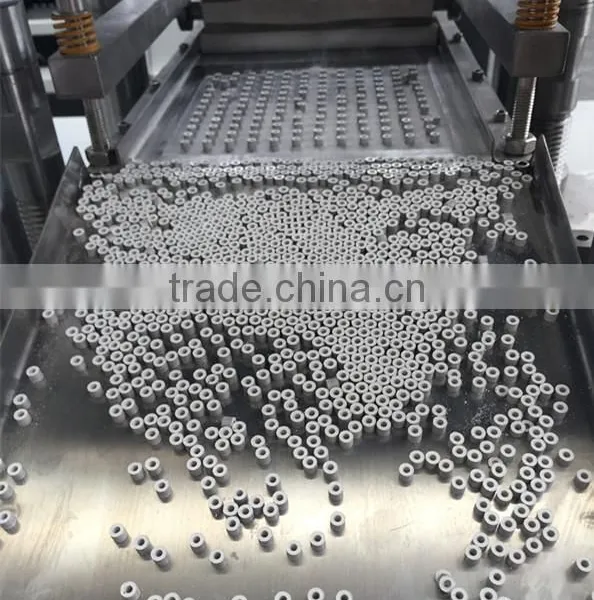

hot press machine for making ceramic tablet
- 30 Set / Sets per Month
- Shanghai
- T/T Credit Card
- High standard single punch tablet molding machine pills press tablet making Table press machine
- salt tablet press machine milk tablet machine pill press machine for sale
- Single Punch Tablet Press forming machine ,milk slice press machine,pills pressing machine
- Single Punch Tablet Pressing machine ,milk slice press machine with high quality
- 2022 hot sale Tablet Press forming machine ,milk slice press machine,mini press tablet machine
- Auto medicine powder rotary pill tableting machine automatic tablet press machine
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | JYJ |
Model Number: | SYST-100 | Type: | Other, Hydraulic press, Hydraulic press | Production Capacity: | Hour |
Max. Pressure(KN): | 100T | Max. Tablet Thickness(mm): | 180mm | Max. Tablet Diameter(mm): | Customized |
Voltage: | 220V/380V 50HZ 3Phase 4Wires | Power(W): | 11KW | Weight: | 3500kg |
Dimension(L*W*H): | 1.8*1.6*2.6M | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
2. Engineer available service abroad
3. All procedures can be setted on PLC
Brief Introduction
Our factory has been specialized in Hydraulic Tablet Press Machine and Single Punch Tablet Press Machine for 30years in China. Now we new desinged SYST Series tablet press machine,it is one of the most advanced tablet forming machine now. Compared with the common tablet press machine,its main advantages lies in:
Design Lightspot:
1.Fully CNC control design Every action can be set separately,precise control,flexible technology,can solve special material tablet forming.
2.Fully intelligent operation design Production debugging operated through PLC touch screen. It can cut the cumbersome process in great csope and make the operation more simple.
3.Fully-automatic material filling design Intelligent control the filling method and dosage,rapid and stable,can save the time and labor.
4.Isolated hydraulic station design Oil cylinder working area and mechanical working area are independent of each other,it can prevent oil pollution.
5.Reasonable structure design Our tablet press machine have obvious advantages in: energy saving and environmental protection,small space occupation,superior performance,simple operation,easy maintenance and so on.
Technology:
1.Demoulding protection Protect the compressed tablet well in the course of production that damaged by improper mould forces.
2.Uniform Density Through special technology,can ensure the compressed tablet uniform density.
3.Different layer different color Can compress the tablet with different layers and different colors.
4.Multiple Prodcution Capacity Under certain conditions,can realized the capacity increase many times.
5.Safety Protection If some abnormal condition occurs,it will stop immediately,will be affected to a minimum.
Main technical parameters
Model | SYST-200 | SYST-300 | SYST-500 |
Working pressure | 200T | 300T | 500T |
Ascending stroke | 220mm | 230mm | 250mm |
Filling height | 250mm | 250mm | 280mm |
Diameter of the Below mould | 350mm | 350mm | 350mm |
Max block diameter | 260mm | 260mm | 260mm |
Block weights | 1-3kg/pcs | 1-5kg/pcs | 2-10kg/pcs |
Motor power | 15kw | 18kw | 11+3kw |
Machine Dimension | 2.3*1.6*3.2M | 3.5*2.2*3.6M | 3.6*2.2*3.8M |
Machine Weight | 4500kg | 6500kg | 12000kg |
The Package&Shipping
1.SYST-16 to SYST-200 Machine will be packaged by wooden case
2.SYST-300 to SYST-1500 Machine will be loaded in the container with wateproof
3.All the machines will be adjusted and tasted before shipping.
Our Service
Pre-sale Service
We provide professional consultation about each type of machine,and offer free testing service to help customers purchase suitable machine.Customers are also welcomed to visit and evaluate our factory.
After-sale Service
After customers received tablet press machine, we will arrange our technician go to your factory to help you instal and debug the machine,also provide technical training for your workers.
Applications:
1.Agriculture: Feed block, fertilizer tablets, animal food, animal salt lick
2.Electronics Batteries: thermistor, integrated circuit components, carboniferous brush films, quick drop-off
3.Health Products: calcium, propolis tablets, effervescent tablets, bath salts tablets
4.Chemical: disinfection tablets, insect repellent films, camphor ball, detergents, fragrances, catalysts, metallurgy powder

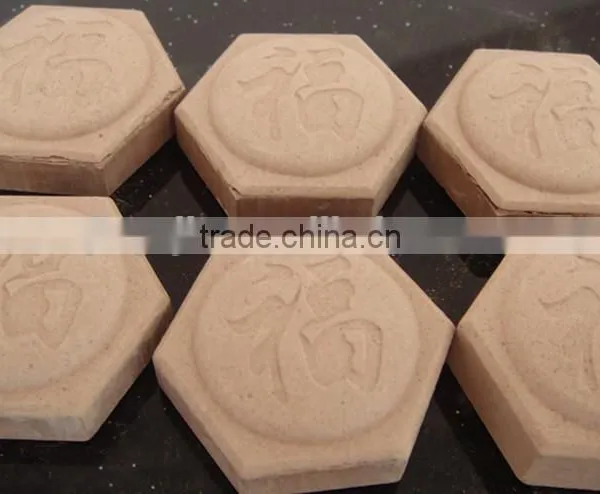

5.glass powder, ceramic powder products, art powder, sand round block, magnetic materials.
To press heavy block like animal salt block, licks, we need larger pressure, below rules are for your reference:
1.300ton machine can press weight under and including 5kg,
2.500ton machine can press weight under and including 10kg
Other heavier weight of blocks, please consult us freely
A. We would like to recommend machines based on your requirements as belows:
1.Product
2. Products' size and shape
3. Products' weight
4.Production Capacity
B. We can design, customize and make dies for customers.

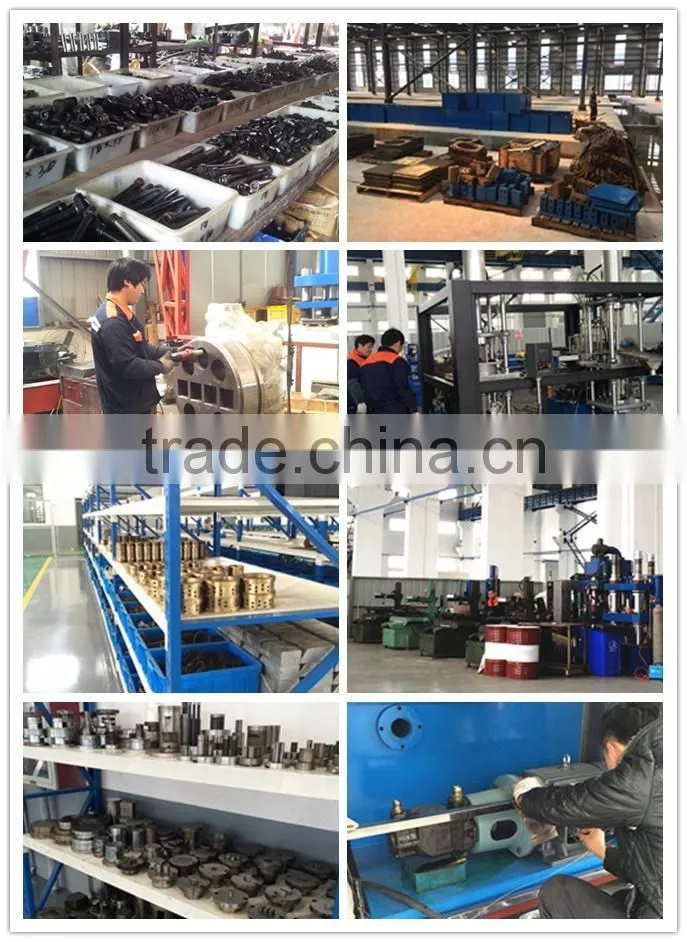

Detail Parts:
Our Customers:
RFQ
- Delivery date
We will arrange the production and shipment as soon as we received the deposit,and update the information with customers timely.
- Terms of payment
we can accept the payment by T/T or Western Union or Cash.For T/T,the customer can choose 100% in advance or 30% in advance,and pay the 70% balance before shipment.
- After -sale service
For most of the machines,the warranty will be one year since the date of shipment,we supply the on-line service for all the customers,and also supply the spare parts all the time with cost price,for some complicate machine or part,we can send our technicians overseas to help debug too.
- How do you guarantee I can receive ordered goods after payment?
We are a legally established company supervised by the government,and is registered in customs of China and China Chamber of International Commerce.Besides,we are the member of Alibaba and has been checked by the third part as the real and legal company,So,please rest assured.What is more,honesty and trustworthiness is our basic principle and company motor.
- How to make an order?
Step 1.Please tell us your material characteristic and the diameter&height you require
Step 2.Then we will make a solution for you to confirm the order details
Step 3.You can send us some material to test,or you can visit our factory
Step 4.Finally,make a deal and we will deliver the goods with the stipulated time
CE Certification
