Specifications
1.grow seedings nutritive block press machine
2.Can press other tablet or block
3.PLC control, stable performance, high precision
Introduction
SYST45 type machine is my factory newly developed and made to a large tablet machine, it will compress granular, powder-like material into a variety of general and special-shaped pieces suitable for large-scale repression of products on the products requiring high-density products, while a multichip module can be used for largescale production industries, equipment, high precision, easy to learn mold replacement and installation. High degree of automation. All actions by the microcomputer PLC control, continuous automatic. Can be properly adjusted to suppress the time, pressure, product thickness.
The entire hydraulic system imported from Taiwan, stability, higher, to avoid oil spills, oil-for-dirty, the pressure is not enough, action is not synchronized for continuous problems. Working part and the separation of part of the hydraulic system of independent, non-polluting, automatic heat, the device to minimize wear and tear
Main technical parameters
Model | SYST-45 | SYST-100 | SYST-200 |
Working pressure | 45T | 100T | 200T |
Uprush max stroke | 150mm | 200mm | 200mm |
Max. Depth of fill | 150mm | 180mm | 200mm |
Max diameter of lower mould | 300mm | 300mm | 300mm |
Max diameter of products | 200mm | 200mm | 200mm |
Capacity | 4~8 times per minute | 4~6 times per minute | 4~6 times per minute |
Motor power | 7.5kw | 11kw | 15kw |
Dimension | 800*1200*2300mm | 1000*1200*2450mm | 1400*1500*2450mm |
Weight | 1800kg | 2800kg | 4500kg |
Widely Applications
Agriculture: Feed block, fertilizer tablets, animal food, animal salt lick
Electronics Batteries: thermistor, integrated circuit components, carboniferous brush films, quick drop-off
Health Products: calcium, propolis tablets, effervescent tablets, bath salts tablets
Chemical: disinfection tablets, insect repellent films, camphor ball, detergents, fragrances, catalysts, metallurgy powder, glass powder, ceramic powder products, art powder, sand round block, magnetic materials.
To press heavy block like animal salt block, licks, we need larger pressure, below rules are for your reference:
300ton machine can press weight under and including 5kg,
500ton machine can press weight under and including 10kg.
Other heavier weight of blocks, please consult us freely.
Exported Countries:
Indonesia,Saudi Arabia,Malaysia,India,South Africa,Canada,Australia,Russia,Spain,Pakistan,Turkey,Egypt,Germany ,Korea and so on.
Our Service:
1.Before you buy the machine,we'll help you to konw the detail information of it.
2.After you buy the machine,we'll send technician to your factory,help you install the machine and train your workers how to operate and maintance the machine.
3.After our technician back to China,we have 24 hours aftersale service for you if your machine has any problem,we will help you right now.
Package&Shipping
1.SYST-16 to SYSt-200 The machines will be packaged by wooden case.
2.SYST-300 to SYST-1500 We will load the machines in the container with waterproof.
3.All the machines will be adjusted and tasted before shipping.

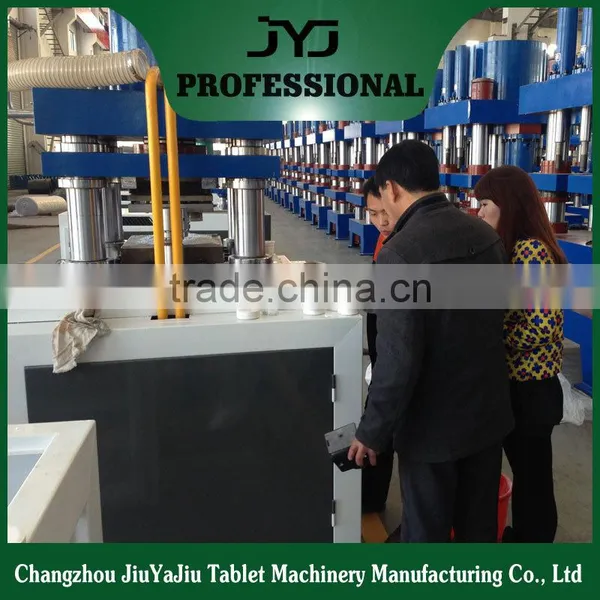

Welcome to visit our factory
