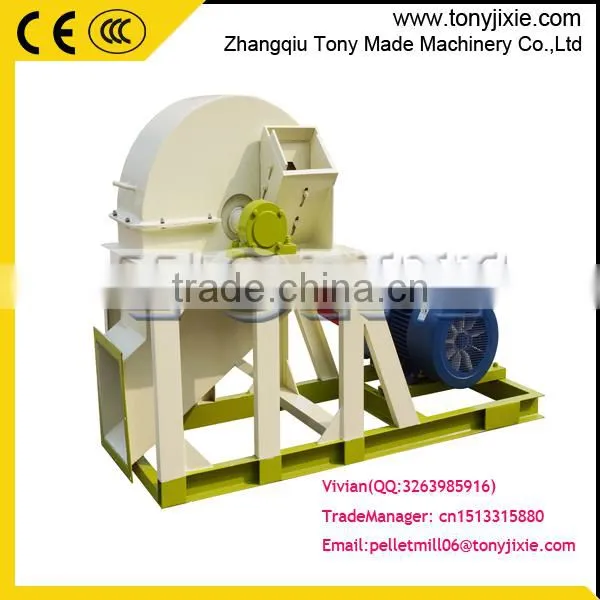

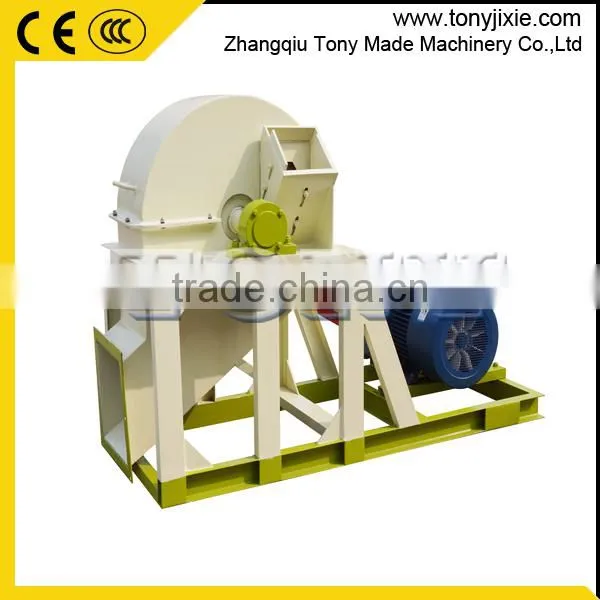

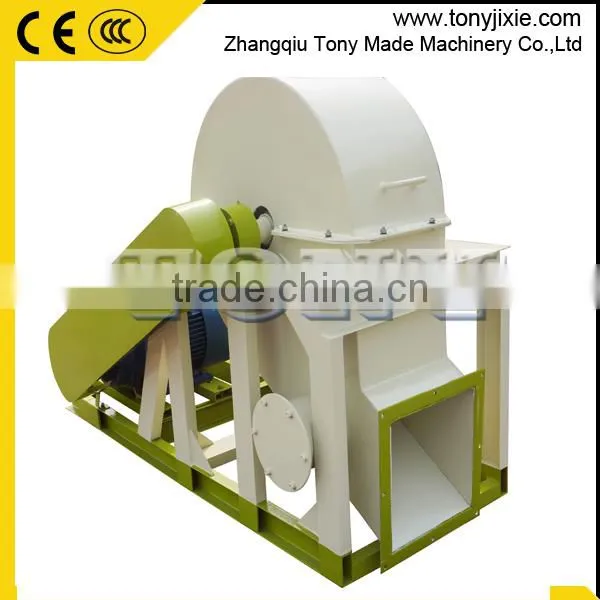

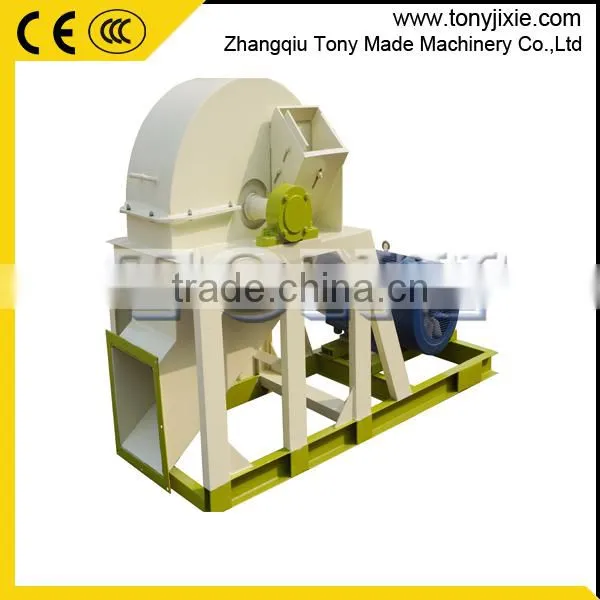

Help CenterCE Certificated Wood Sawdust Crusher/wood Crusher Machine/wood Crusher
Related Products
-
Dual Shaft High Efficiency Roughage Wood Chips Grinder Hammer Mill for SaleUS$ 2,000 - 35,000MOQ: 1 Set -
6-12T/H Big Capacity Wood Pulverizer/wood Chips Hammer Mill Grinder PriceUS$ 2,000 - 35,000MOQ: 1 Set
-
6-8T/H Big Capacity Multifunctional Hammer Mill Grinder Industrial UsedUS$ 2,000 - 25,000MOQ: 1 Set
-
Straw Weeds Sawdust Hammer Mill Machine for SaleUS$ 300 - 4,500MOQ: 1 Set
-
Farm Widely Used Straw Hammer Mill/cotton Stalk Grass GrinderUS$ 300 - 4,500MOQ: 1 Set
Main Features of Multifunctional Hammer Mill
1.Multifunctional hammer mill is the most ideal grinding equipment of all kind of wood chips, wood shavings, grass, straw, stalk, corn, weeds, soybeans, PVC foaming board, rubber and so on.Their structure is reasonable, firm durable, safe reliable, easy operation, the vibration is small and the efficiency is high. It is widely used in the professions such as energy pellet factory, cultivation factory, organic fertilizer factory, Chinese medicine, chemical industrial etc.
2.After smashed by multifunctional hammer mill ,the powder size is from 2-15mm. We can make suitable screener at h hammer mill bottom according to materials moisture and characteristics.
3.Multifunctional hammer mill can be used by two methods--positive pressure and negative pressure matched with fan blower , cyclone, air lock, electricity control cabinet and so on. This grinding system can use bags to collect dust in the grinding process.
4.This model hammer mill with 5-6t/h capacity for making 6mm wood power, if make bigger size than 6mm, the capacity will more than this. Our hammer mill capacity will depend on raw materials' moisture content and the size of the finished product you demand.
SKF Bearing
Tapered Roller Bearing are desined such that their conical rollers and raceways are arranged so that all elements of the rollerand race way cones meet at a common apex on the bearing axis.
The rolling elements perform the real rotating movement on the raceway;the synthesized force from the inner and outer ring raceways guides the rollers,pressing them to the large rib on the inner ring.
Screen
A screen with cutting edges is used to control the wood particle size. If the size is larger than screen, these material will be sent back to be grinded again until they can get though the screen. The size of the grinded material depend on the size of screen and the rotation speed.
Hammers
hammers are made by high quality wear resistant alloy steel in special heat treatment, extend service life, reduce client cost.
Hammers can crush 1-50mm wood chips and wood branches,it's widely used to crushing all kinds of biomass materials.
Requirements for raw materials of Multifunctional Hammer Mill
Raw material: wood, waste wood and straws, etc. such as woodchips(palm, pine white pine, mahogany, pinus sylvestris, rubber tree), bamboo shavings, rice hust, seeds shells, peanut shells, halm, pennisetum, wheat straw, corn stalk, cotton stalks, alfalfa grass, bagrass, palm fiber, waste paper, non-physical material
Size: 1-50mm.All the raw materials must be crushed into sawdust before going to wood pellet machine.
Moisture: Generally, 10-15% is best for producing good quality wood pellet.
ZHANGQIU TONY MADE MACHINERY CO., LTD is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mills, feed pellet mills, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.
TONY has agents in Germany, France, Serbia, Italy, Bulgaria, Thailand, Malaysia, Vietnam, Croatia, Serbia who can supply machines timely with competitive price and also do better after-sales service.
We mainly manufacture the machines as following:
1. The SKJ Series flat die pellet mill with the volume 100kg to 4 ton per hour.
2.TheTY Series ring die pellet mill with the volume 800kg to 5 ton per hour.
3.The SKJD Series Pellet Mill with Diesel Engine with volume 100kg to 400kg/h.
4.The SKJT Series Pellet Mill with Tractor Engine with volume 80kg to 400kg/h.
5.Hammer Mill
6.Wood crusher
7.Wood chipper
8.Drum dryer
9.Packing machine
10.Whole pellet making production line from the volume 0.5 ton to 20 T/h.
Complete Biomass Pellet Line
96.8% Response Rate
High Capacity Pellet Machine
96.8% Response Rate
Small Flat Die Pellet Machine
96.8% Response Rate
Any more information you want to know, please contact me freely.
