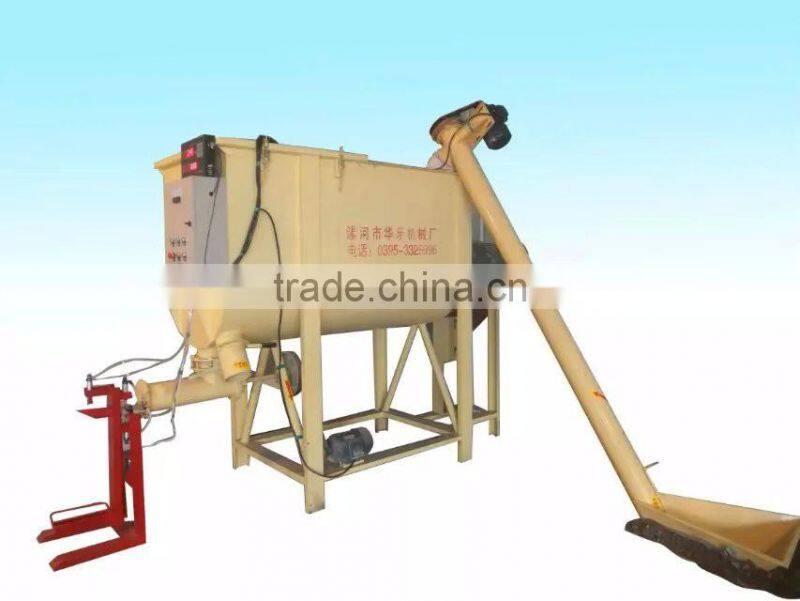

Lab dry powder ribbon mixer
Product Discription
The machine adopts horizental body, covers small area, automatic charging, easy operate, double helix structure, simple maintenance, high efficency, save both time and labour. Complete shut--up, No viibration, no noise and dust. It is very popular at home and abroad.
Application scope
What's more, it can also be used in powder and paste paint putty powder mixing. it is a multi-functional dry wet amphibious mixing blender first made in China. It is suitable for buliding, chemical, food,medicine, plastic industry and so on.
1 ton horizontal mixer
It uses 350 type gear reducer. The mixing motor adopts 7.5KW copper wire.The suooprt uses more upset box iron support. The bearing adopts double containment P12 bearing. The thickness of the helix is 8mm wear-resisting steel plate. All of these designs help to improve the applicability of the product and guarantee the production.
Technical parameters of the dry powder mortar mixer.
| Model | SMJ100 | SMJ200 | SMJ300 | SMJ500 | SMJ1000 | SMJ1500 | SMJ2000 |
| engine power(KW) | 3 | 3 | 4 | 5.5 | 7.5 | 11 | 11 |
| total capacity(kg) | 100 | 200 | 300 | 500 | 1000 | 1500 | 2000 |
| outlet dimension(m) | 1.5*0.8*1.1 | 2*0.8*1.2 | 2*0.8*1.2 | 2.5*0.8*1.7 | 3.1*0.98*1.9 | 3.3*1.0*1.9 | 3.5*1.25*2.15 |
| mixing tim(min) | 4-8 | 4-8 | 4-8 | 5-8 | 5-8 | 5-8 | 5-8 |
| screw shaft(mm) | 65 | 65 | 65 | 65 | 90 | 90 | 90 |
| ankle strap(mm) | 4 | 4 | 4 | 6 | 8 | 8 | 8 |
| the dimension of the mixing tank | 1.05*0.5*0.6 | 1.15*0.55*0.65 | 1.2*0.65*0.7 | 1.26*0.73*0.85 | 1.8*0.9*1.05 | 2.0*1.0*1.15 | 2.2*1.2*1.35 |
The focus you care
1. Driven unit: Many worldwide famous brands are for option: SEW, ABB, Siemens and so o
2. Bearings: NSK/TNT and so on
3. Heating
4 Heavy duty type ( loading your material into the mixer first and then start the mixer)
5 Platform: we build the platform for you or we design it and you build it locally
6. Mixing system: including packing machine, bucket elevator, Sieve, screw conveyor and so.
Customizing according to client’s specific requirement.
Detail of the dry powder mixer
1. Horizontal tank body, covers small area
2. Bearing is on both ends of the mixer, the material is not easy to enter, repair rate is low.
3. Gear box drive the auger shaft, simple maintenance ,high efficiency,save both time and labour.
4. U- Shape tank bottom, easy operate, stir uniformly, no dead angle, better for material discharge and cleaning.
5. Screw conveyor feeds conveniently, inlet flushes with the ground, feeding saves energy and convenient.
6. The machine can be designed to cool or heat the powder inside .
7. Under the bottom or the sides of the tank , there is a flap dome valve (pneumatic control or manual control) of the center. The valve is arc design to make sure no material deposit and no dead angle when mixing .There is a lid and fence on the top of the tank, it seals the tank well, so that no powder will come out during mixing .
Introduction of company
Business type: manufacturer, trading company
Location: Henan, China(Mainland)
Year established:2014
Registration No.:411103000015035
Main products:
Our philosophy is to provide our customers with a wide choice of quality products and satisfactory services. We have automatic constweigh packing machine, dry powder mixer, putty powder mixer, wood pellet machine, pellet cooler, crusher and conveyor. We assure our customers of a mutually beneficial relationship as we look forward to building business cooperation in the future.
