Coating mixing machine
- 300 Unit / Units per Month
- QINGDAO
- T/T Credit Card PayPal
Product Details
Condition: | New | Mixer Type: | Homogenizer | Product Type: | Paint |
Application: | Liquid with Suspended Solids | Additional Capabilities: | Milling | Place of Origin: | Henan, China |
Brand Name: | XINYU | Model Number: | TH-DM01 | Max. Loading Capacity: | 2000L |
Voltage: | 380V | Power(W): | 7.5KW | Dimension(L*W*H): | Custom Made |
Certification: | ISO9001 | Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Coating mixing machine
Coating mixing machine is to dissolve ,disperse and mix materials with different viscosity materials.
The large stress forces break down the agglomerates into the liquid or paste suspension and.
With cover matching with it’s container to avoid dust flying ,materials splashing and volatilization of solvent products during dispersing.
Easy operation,safe and convenient . The cover and vessels are mirror polished ,easy to clean and nice appearance.
Little air absorption during mixing and dispersing process. It disperses and dissolves materials to smaller particle size efficiently .
No dead corner during mixing .Easy to clean ,wide capacity range ,various speed control,stable operation ,low noise and long-time continuous operation.
motor power(kw) | 5.5 | 7.5/11 | 15/18.5 | 22 | 30 |
lifting motow power(kw) | 0.55 | 0.75 | 1.1 | 1.5/2.2 | 1.5/2.2 |
material | Stainless steel(dispersing shaft and head) | ||||
Carbon steel(Machine body besides dispersing shaft and head) | |||||
Dispersing head diameter | 180mm | 200mm | 280 mm | 300 mm | 320 mm |
speed | 0-1250 | 0-1400rmp(Variable adjustable speed) | |||
turning angle | 360°C | ||||
voltage | 415V/380V/220V(3 phase) | ||||
frequency | 60/50HZ |

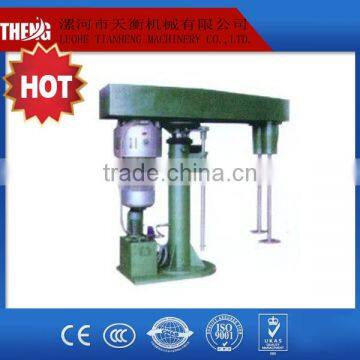

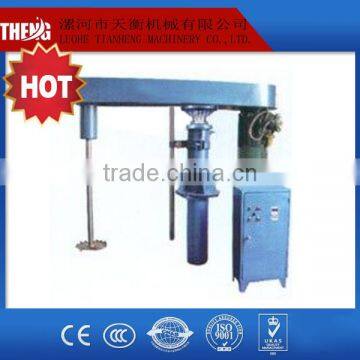

Photos of High speed dispersion machine for paint
