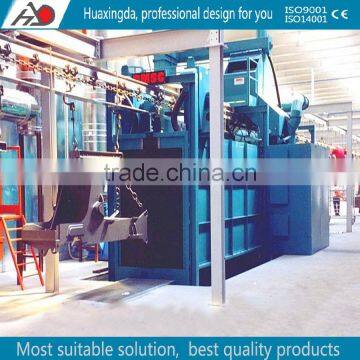

Help CenterQ384C Series Overhead Conveyor Chain Shot Blasting Machine Casting Forging Parts Surface Descaling
Related Products
-
Apron Sand-blast Machine/Q326EA China Best Quality Tumble Belt Shot Blast Cleaning MachineUS$ 22,000 - 26,000MOQ: 1 Set -
QR3210EA New Machine Tumble Belt Shot Blast Cleaning Machine With Automatic Loading SystemUS$ 22,000 - 26,000MOQ: 1 Set
-
Q385 Series Qingdao China Supplier Overhead Conveyor Chain Shot Blasting Machine Welding Parts Surface Descaling Batch ProcessUS$ 45,600 - 46,650MOQ: 1 Set
-
Q383F Supply Best Price Overhead Chain Sandblasting Machine for Surface BuffingUS$ 45,600 - 46,650MOQ: 1 Set
-
Q48 Series Qingdao China Supplier Catenary Stepping Overhead Conveyor Chain Shot Blasting MachineUS$ 45,600 - 46,650MOQ: 1 Set
Features:
1. This Hanger Hook Type Shot Blasting Machine is a kind of high efficency shot blasting machine with non-pit.
2. Large inner available cleaning space, compacted structure and scientific design. Can be designed and manufactured according to the order.
3. No special request for the workpiece structure. Can be used for different kinds of workpieces.
4. Widely used in cleaning and strengthening for Fragile or Irregularly Shaped Parts, Medium-sized or Large Parts, Die Cast Parts, Sand Removal and External Finishing.
specification
5.Overhead chain is running continuously. operator should hang the job to following the chain timely.
NO. | Name | Q383F | Q383C | Q384C | Q385 |
1 | Productivity (hook / h) | 38 | 38,49,50,65 | 70,80 | 75 |
2 | Running speed chain hoists(m/min) | 0.8-2.6 | 0.5,0.65 | 0.8,0.93 | 0.65 |
3 | Single hook hoists(Kg) | 100 | 300 | 400 | 500 |
4 | Hanging from mm | 800 | 600,800 | 800 | 800 |
5 | Quantity of shot blasting(Kg/min) | 125*6 | 250*4 | 250*6 | 250*50 |
6 | The amount of dust wind(m/3h) | 20000 | 18000 | 26500 | 23700 |
7 | Cleanup workpiece size(mm) | φ400*800 | φ500*1200 | φ700*1500 | φ700*1500 |
8 | Total power(Kw) | 80.75 | 75.3 | 122.6 | 106.75 |

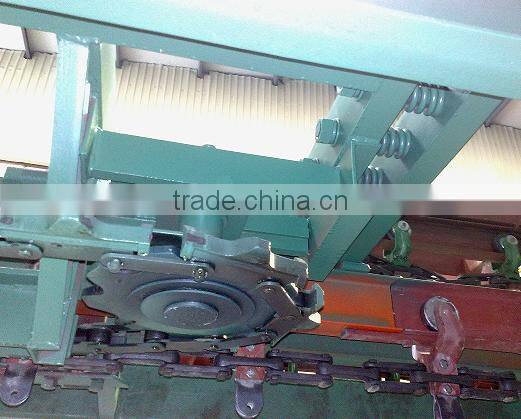

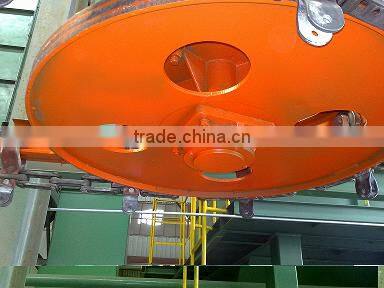

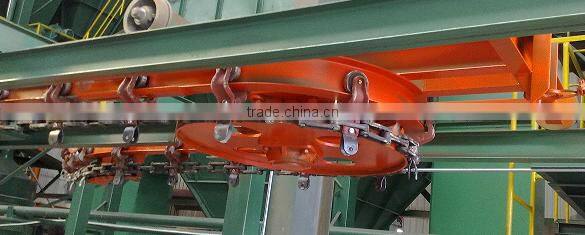

overhead chain system

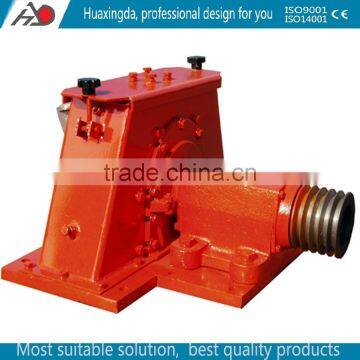

work piece spinning device blast blade pneumatic abrasive feeder
blastwheel wear parts
blast wheel wear parts service time
wear parts chemical analysis table:
